| Cutting ranges | |
|---|---|
| 0° round (full material) | 127 mm |
| 0° quadratic (full material) | 127 mm |
| 0° rectangle horizontal (full material) | 127 x 127 mm |
| +45° round (full material) | 40 mm |
| +45° quadratic (full material) | 40 mm |
| +45° rectangle horizontal (full material) | 40 x 120 mm |

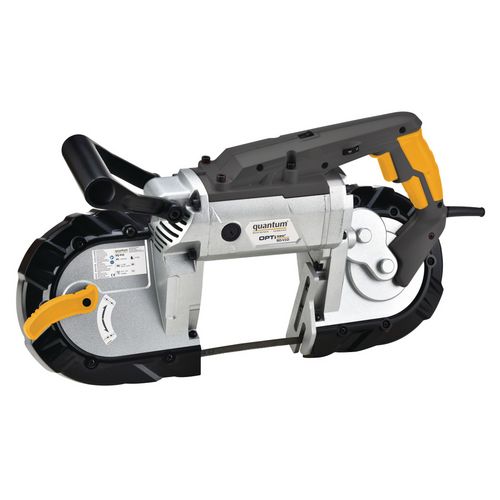

Hand band saw
quantum SQ-V10
Can be mounted on the optional work table with vice, or can be used free-hand guided
195,00
EUR excl. Tax / pc(s).
234,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3184210
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Powerful 1.1 kW motor
- Ideal suitable for sawing off solid steel materials with low tensile strength and preferably for sawing off pipes, profiles made of steel, aluminum and non-ferrous metals.
- Also suitable for cutting wood, plastics and other thin non-ferrous metals
- Detachable from the optional work table for flexible use
- Strong bridge construction with aluminum frame

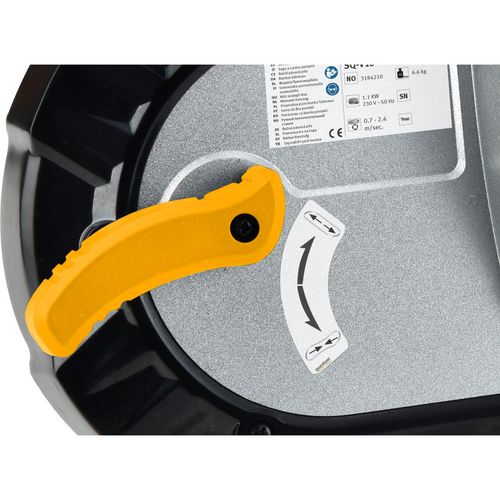

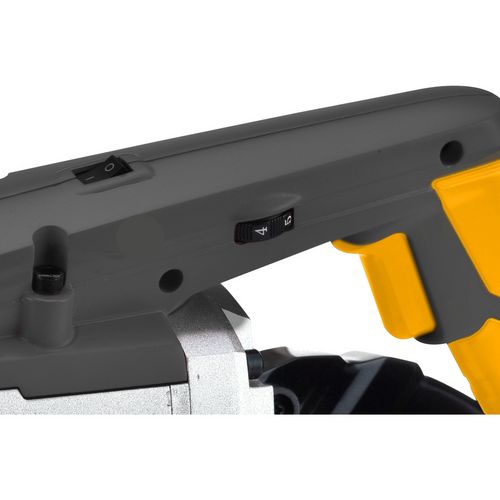

- Variable saw blade speed for different materials
- Easy to operate saw blade clamps and adjusting screws ensure permanently precise band run
- The saw allows gentle material handling, virtually spark-free sawing without coolant
- Transport case

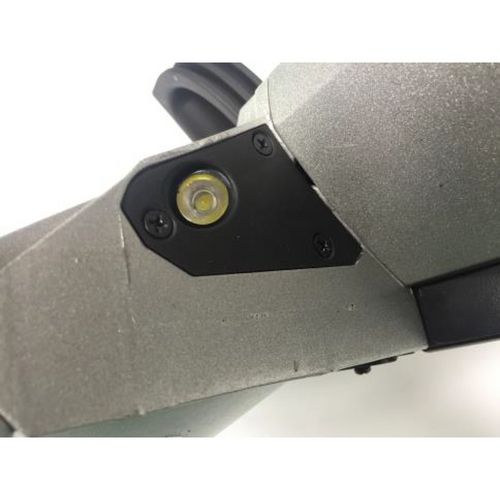

- LED working light illuminates dark working surfaces for precise cutting
- Reduced cutting noise
- The correct working position is always maintained by the adjustable additional handle
| Dimensions and weights | |
|---|---|
| Length approx. | 465 mm |
| Width/depth approx. | 280 mm |
| Height approx. | 165 mm |
| Weight approx. | 6,6 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,1 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 42 – 144 m/min |
| Saw band length | 1140 mm |
| Saw band width | 13 mm |
| Saw band thickness | 0,65 mm |
| Sawing capacity max. | 127 x 80 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Transport box
- Bi-metal saw band 10-14Z ZpZ M42
