    Miter band saw

    OPTIsaw SQ-V13

    Portable bandsaw for mitre cuts with high cutting precision, especially low noise. With infinitely variable saw blade speed

    425,00 EUR excl. Tax / pc(s).
    510,00 EUR incl. 20% Tax / pc(s).
    Promotional price *
    399,00 EUR excl. Tax / pc(s).
    478,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3194013

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • In series with high-quality bi-metal saw blade
    • Adjustable material stop for series work

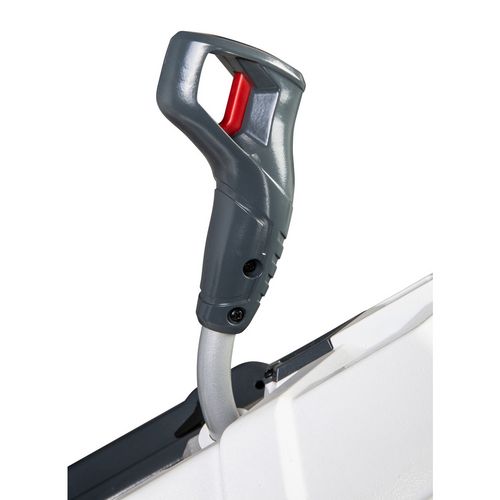

    • Push button on the lever arm for saw blade run switches the run of the saw blade on and offbelt on and off
    • bottom plate with non-slip feet
    • saw bow can be swivelled from 0° to +60° to allow angular saw cuts



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cutting ranges
    0° round (full material)125 mm
    0° quadratic (full material)125 mm
    0° rectangle horizontal (full material)125 x 125 mm
    +45° round (full material)85 mm
    +45° quadratic (full material)85 mm
    +45° rectangle horizontal (full material)85 x 85 mm
    +60° round (full material)50 mm
    +60° quadratic (full material)50 mm
    +60° rectangle horizontal (full material)50 x 50 mm
    Explanation Cutting rangeThe cutting range was determined with aluminum. It can vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
    Dimensions and weights
    Max. length795 (open vice) mm
    Max. width/depth613 (with material stop) mm
    Max. height640 (lower end position) mm
    Length approx.670 mm
    Width/depth approx.382 mm
    Height approx.420 mm
    Weight approx.23.3 kg
    Electrical Data
    Drive motor output0.4 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Machine data
    Saw band speed(s)30 – 80 m/min
    Saw band length1440 mm
    Saw band width12,5 mm
    Saw band thickness0,6 mm
    Cutting angle0 – 60 °
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • material stop
    • bi-metal saw blade
