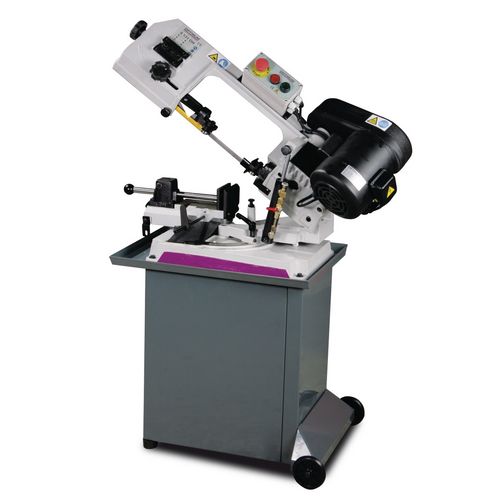

    Metal band saw

    OPTIsaw S 131GH

    Metal band saw ideal for light sawing work. Miter saws from -45 ° to 60 ° via swiveling saw bow

    1.179,00 EUR excl. Tax / pc(s).
    1.414,80 EUR incl. 20% Tax / pc(s).
    Promotional price *
    1.069,00 EUR excl. Tax / pc(s).
    1.282,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3300131

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Circuit breaker for the belt cover and the saw band cover in low-voltage version
    • Separate emergency stop impact switch
    • Low-voltage electronics 24 V
    • Silent run
    • Mobile machine base
    • Ball bearing saw band guide
    • Three speed levels for a wide range of materials
    • Micro switch for automatic limit switch

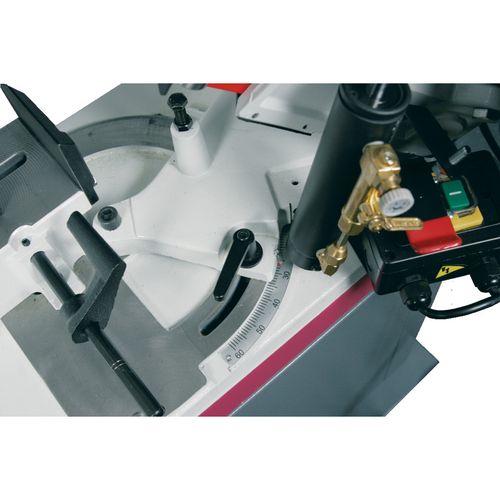

    • Easy to read scale for angle adjustment
    • As standard with high-quality bi-metal saw band
    • Saw band tension adjustable on the front side via handwheel
    • Adjustable material stop for serial work
    • Quick-action vice for fast workpiece clamping
    • With a powerful belt drive



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Cutting ranges
    0° round (full material)128 mm
    0° quadratic (full material)128 mm
    0° rectangle horizontal (full material)160 x 145 mm
    -60° round (full material)55 mm
    -60° quadratic (full material)55 mm
    -60° rectangle horizontal (full material)120 x 55 mm
    +45° round (full material)90 mm
    +45° quadratic (full material)85 mm
    +45° rectangle horizontal (full material)85 x 95 mm
    Explanation Cutting rangeThe cutting range was determined with aluminum. It can vary when using different materials and may be smaller under certain circumstances (not cutting capacity).
    Dimensions and weights
    Max. length1085 mm
    Max. height1300 mm
    Length approx.965 mm
    Width/depth approx.498 mm
    Height approx.978 mm
    Weight approx.78 kg
    Electrical Data
    Drive motor output1,1 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Machine data
    Saw band speed(s)22 / 31 / 55 m/min
    Saw band length1638 mm
    Saw band width13 mm
    Saw band thickness0,65 mm
    Cutting angle-45 – +60 °
    Feedinfinitely variable
    Lifting the saw bowManual
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Material stop
    • Bi-metal saw band
    • Machine base
