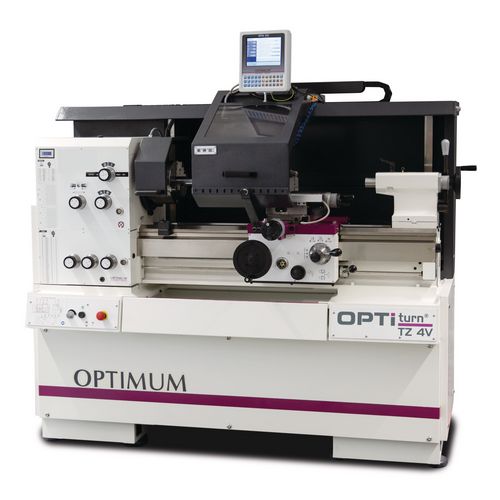

Precision Center and Turning Center Lathe
OPTIturn TZ 4V
with electronically controllable drive and digital position indicator DPA 32
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 3432247
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Hardened and ground Z-axis guideway
- Motor protection switch
- Control cabinet with 24 V DC power supply
- Partial enclosure with included, large dimensioned chip guard
- Chip guard with integrated position indicator, coolant hose and additional control panel
- Two-channel safety electronics
- Safety handwheels with disengaging function in the X- and Z-axis
- Face and top slide spindle is hardened and ground and adjustable via split spindle nut
- Lead and traction spindle cover
- Finely graduated feed and tapping range
- Energy chain for gentle guiding of cables and hoses
- Standard gears for metric thread pitches and modular threads are mounted in the machine. Change gears for inch and D.P threads optionally available
- Switches with life cycle calculation tested according to EN ISO 13849
- Decoupled handwheels tested according to EN 23125
- Reduction of main spindle deceleration time by energy regeneration
- Chip tray can be pulled out to the front
- Coolant device
- Quick-change steel holder SWH 5-B
- Steel holder 25 x 120 type D for square chisel 20 mm
- LED machine lamp for complete illumination of the working area
- Cutting constant VSC
| Cooling lubricant system | |
|---|---|
| Coolant pump output | 0.125 kW |
| Tank capacity | 20 l |
| Dimensions and weights | |
|---|---|
| Length approx. | 1960 mm |
| Width/depth approx. | 1060 mm |
| Height approx. | 1690 mm |
| Weight approx. | 1250 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 5.5 kW |
| Operating mode | S6 |
| Duty cycle | 60 % |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Feed | |
|---|---|
| Longitudinal feed range | 0.0263 – 1.8416 mm/rev |
| Number of longitudinal feeds | 48 |
| Flat feed range | 0.0133 – 0.9321 mm/rev |
| Number of flat feeds | 48 |
| Motor(s) | |
|---|---|
| Drive motor gears | 2 |
| Pitches | |
|---|---|
| Metric pitch | 0.2 – 14 mm/rev |
| Number of metric pitches | 36 |
| Imperial pitch | 80 – 1 Gg/1" |
| Number of imperial pitches | 42 |
| Diametrical pitch | 3 – 200 Gg/π |
| Number of diametrical pitches | 33 |
| Modular thread pitch | 0.1 – 7 mm/rev |
| Number of modular thread pitches | 44 |
| Speed range | |
|---|---|
| Number of gears | 2 |
| Speed range | 50 – 3000 min¯¹ |
| Spindle | |
|---|---|
| Spindle chuck | DIN ISO 702-1 No. 5 Form A2 |
| Spindle bore/rod passage diameter | 52 mm |
| Spindle cone | MT 6 |
| Standards and certifications | |
|---|---|
| Standard | DIN EN 55011 |
| EMC level | C3 |
| Tailstock | |
|---|---|
| Chuck | MK 3 |
| Quill stroke | 110 mm |
| Quill diameter | 50 mm |
| Travel | |
|---|---|
| Travel upper slide | 112 mm |
| Travel cross slide | 212 mm |
| Travel carriage saddle | 800 mm |
| Work areas | |
|---|---|
| Max. height | 200 mm |
| Max. width | 800 mm |
| Swing diameter above machine bed | 400 mm |
| Swing diameter above planing slide | 245 mm |
| Bed width | 260 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Fixed steady rest passage Ø 10 - Ø 130 mm
- Moving steady rest passage Ø 10 - Ø 100 mm
- Adapter MK6-MK3
- Non-moving centering tip MK3
- Non-moving, but temperature resistant
- Quick change steel holder SWH 5-B
- Steel holder 25x120 TypeD for square chisel 20 mm
- Initial machine filling with quality oil
- Operating tool
- Do not forget the lathe chuck
| Digital position indicator | DPA 32 |
