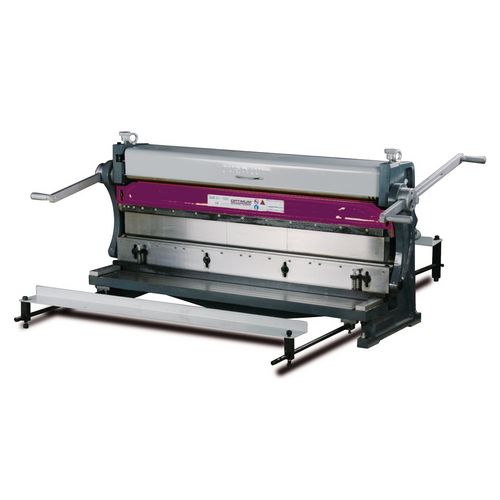

    Combined bending and cutting machine

    SAR 1000

    Three in one: round bending, folding and cutting. Ideal for the demanding user

    2.595,00 EUR excl. Tax / pc(s).
    3.114,00 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 3242100

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Modern design in stable steel construction
    • High design flexibility thanks to segmented edging rail with removable segment pieces
    • Operation via two laterally arranged, large, adjustable and easy-to-operate lever arms
    • Scissor table with inserted measuring tapes and right-angled stop on both sides
    • Easily adjustable top, rear and bottom roller
    • Long contact surface
    • Adjustable backgauge and extendable front material support for the safe placement of even large format sheets

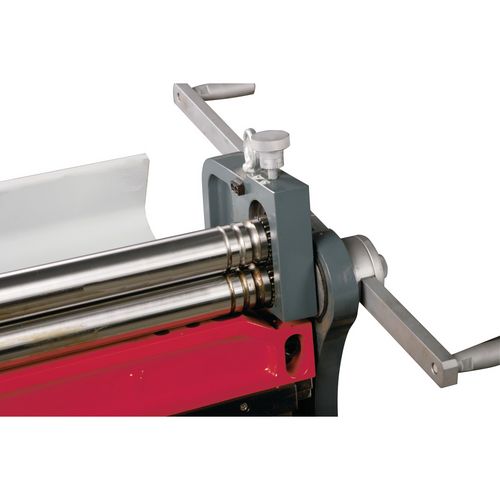

    Turn around

    • Adjustment screws for the material thickness with scaling
    • Ground bending rolls with wire-laying grooves on the lower and front rolls

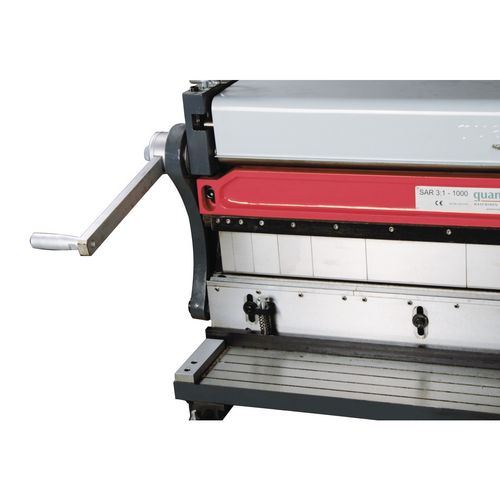

    folding

    • High quality folding cheeks
    • Feather-down device
    • Segment split edge rail 40/50/65/100/180/255/380 mm for cassette bending


    To cut

    • Clean and burr-free cutting by upper and lower blades made of quality steel



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Max material width700 mm
    Max. bending performance plate rolling in steel 400 N/mm²to 1 mm
    Max. bending performance plate rolling stainless steelto 0.5 mm
    Max. bending performance plate rolling aluminium/copperto 1.5 mm
    Max. bending performance plate rolling brassto 1 mm
    Max. bending performance plate rolling gold/silver/tinto 1.5 mm
    Min. bending diameter plate rolling48 mm
    Max. bending diameter plate rollingunlimited
    Plate rolling roller diameter48 mm
    Max. sheet thickness swivel bending with restricted material width2.5 mm
    Max. sheet thickness swivel bending steel 400 N/mm²to 1 mm
    Max. sheet thickness swivel bending aluminium/copperto 1.5 mm
    Segmentation7
    Max. cutting capacityto 1 mm
    VPE1
    Dimensions and weights
    Weight approx.290 kg
    Unit: pc(s).
    Packaging unit: 1

    • Adjustable backgauge
    • Front material pad
    • Tool
