HTBS BASIC S 2510

Equipped with metal slide and motorized cutting gap adjustment

Price upon request

Prices are recommended retail prices. Retailer prices may vary.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 4205027

Are you interested in this product?

Put a request

Find Trader

Productdetails

Standard version:

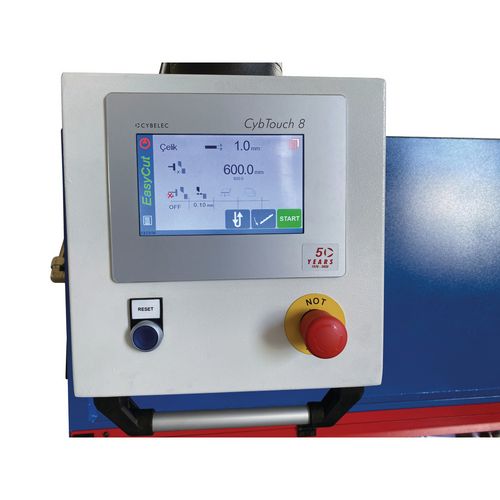

CybTouch 8 touchscreen NC control in the swivel arm

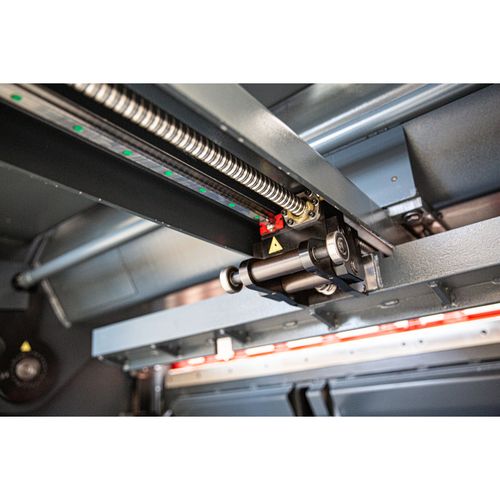

NC-controlled backgauge (5-1000mm) driven via recirculating ball screws and linearly guided
Safety light curtain for the rear area
Motorized cutting gap adjustment via the control unit
1500 mm side fence with scale and T-slot

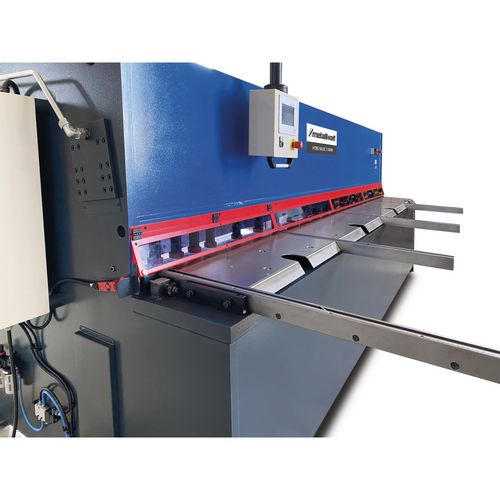

Front support arms 1000mm with scale and T-slot
Stainless steel table supports with integrated transfer balls

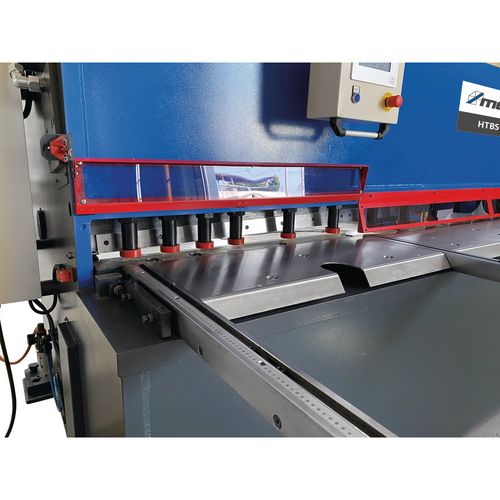

Hold-down device with plastic caps to protect the material
Variable cutting length adjustment via the control unit
Folding finger guard 1000mm with viewing window inserts
Sheet chute in the rear area
Cutting line lighting with silhouette
Knives suitable for cutting stainless steel
Upper blade with two cutting edges and lower blade with four cutting edges
Electrical components from Schneider and Mitsubishi

Equipment options:

Adjustable angle fence
Laser cutting line display
Front light barrier instead of finger guard
Finger guard can be opened over the entire length
Additional front support arms
Additional side stop on the right
Extensions of the standard support arms, the side or back gauge
Transfer ball in the side stop and the front support arms
Servo motor for the back gauge
Manual or automatic central lubrication
Pneumatic sheet support systems
Small parts diverter with pneumatic opening
Oil cooler or oil warmer

touch screen NC-control CybTouch 8 in swivel arm
NC-controlled backgauge (5-1000mm) driven by ball screws
Safety light barrier for the rear area
motorized cutting gap adjustment via the control
side stop 1500mm with scale and T-slot
Two front support arms 1000mm
Table supports made of stainless steel with integrated transfer balls
Folding finger guard 1000mm with viewing glass sowingtzen
upper knife with two and lower knife with four cutting edges
Extensive options available

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Working width	2560 mm
Cutting performance material tensile strength 400 N/mm²	10 mm
Cutting performance material tensile strength 700 N/mm²	6 mm
Explanation to cutting performances	with limited material length
Number of hold-down units	14 St
Number of sheet support arms	2 St
Rear stop adjustment range up to	1000 mm
Rear stop speed	120 mm/s
Side stop length	1500 mm
Motor output rear stop	0.37 kW
Cutting angle	1,5 °
Max. strokes for full cutting length	12 /min
Cutting kerf adjustment min.	0.05 mm
Cutting kerf adjustment max.	1 mm
Oil tank capacity	300 l
VPE	1

Dimensions and weights
Table length	2870 mm
Table depth	585 mm
Table height	900 mm
Length approx.	3460 mm
Width/depth approx.	3450 mm
Height approx.	2200 mm
Weight approx.	8300 kg

Electrical Data
Drive motor output	22 kW
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
Packaging unit: 1

Cutting kerf adjustment	ja
Lateral stop	ja
