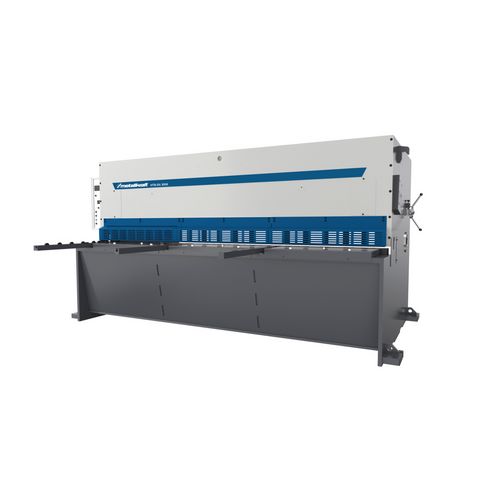

Hydraulic swing cut plate shear with spring return
HTB DE 2006
with cost-effective basic equipment
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4502206
Are you interested in this product?
Put a request
Find Trader
Productdetails
Standard design:
- Heavy and robust welded construction
- NC control Nuova Maper HT071
- Manual, central cutting gap adjustment via handwheel and scale
- Motorized backgauge 1000mm with recirculating ball screws and solid guides
- Backgauge beam can be folded away manually for cutting sheets larger than 1000 mm
- 1000 mm side stop with scale, T-slot and tilting cam
- Two front support arms 1000 mm for simplified handling of large sheets
- Table supports with transfer balls for easier handling of heavy and large sheets
- Grid as front intervention protection
- First meter of the finger guard can be folded up to make it easier to insert offcuts
- LED cutting line lighting with shadow gap via adjustable wire
- Rear guard via light curtain
- Single-acting cylinder for cutting, return stroke by means of spring force
- High-quality blades, suitable for cutting stainless steel
- Rotating blades, upper blade with two cutting edges and lower blade with four cutting edges
- Hydraulic and electronic components from renowned manufacturers
Special accessories:
- Cybelec CybTouch 8 touchscreen NC control unit
- Motorized cutting gap adjustment
- Finger guard with light curtain
- Finger protection with viewing panels
- Stainless steel support tables
- Extension of the side stop or the front supports
- Removable mitre fence 0-180°
- Laser cutting line indicator
- Spare blade
| Working width | 2096 mm |
| Cutting performance material tensile strength 400 N/mm² | 6 mm |
| Cutting performance material tensile strength 600 N/mm² | 4 mm |
| Cuts per minute | 18 |
| Number of hold-down units | 11 St |
| Number of sheet support arms | 2 St |
| Rear stop adjustment range up to | 1000 mm |
| Rear stop speed | 200 mm/s |
| Side stop length | 1000 mm |
| Cutting angle | 1.39 ° |
| Max. strokes for full cutting length | 18 /min |
| Oil tank capacity | 190 l |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Reach | 150 mm |
| Table length | 2320 mm |
| Table depth | 480 mm |
| Table height | 720 mm |
| Machine body depth | 1620 mm |
| Length approx. | 2840 mm |
| Width/depth approx. | 3000 mm |
| Height approx. | 1850 mm |
| Weight approx. | 5250 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 11 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Cutting kerf adjustment | manual |
| Cutting line lighting and visual slots | yes |
| Lateral stop | 1000 mm, with scale and groove |
| Rear stop | motorized with ball screw |
