HTB DS

Standard design:

• Very heavy and robust welded construction

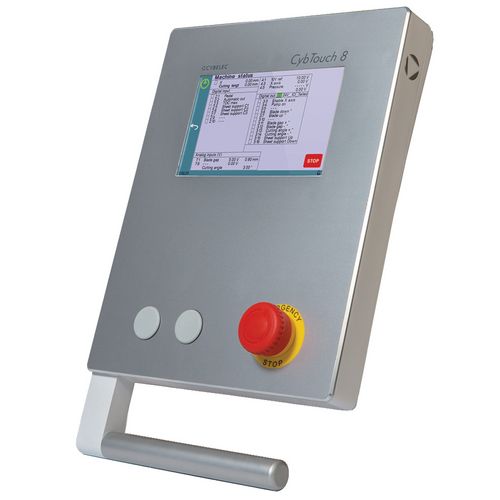

• Cybelec CybTouch 8 touchscreen NC control unit
• Automatic cutting gap adjustment depending on material type and thickness
• Motorized back gauge 1000mm with recirculating ball screws and solid guides
• Backgauge beam can be folded up for cuts with excess length, greater than 1000mm
• 1000 mm side stop with scale, T-slot and tilting cam
• Two front support arms 1000mm for simplified handling of large panels
• Stainless steel table supports fitted with transfer balls for easier handling of heavy and large sheets
• Front finger guard with viewing panels
• First meter of the finger guard can be opened to make it easier to insert remnants
• LED cutting line lighting with shadow gap via adjustable wire
• Rear area protection via safety light curtain
• Double-acting cylinders for the cut and return stroke of the blade bar
• High-quality blades, suitable for cutting stainless steel
• Rotating blades, upper blade with two cutting edges and lower blade with four cutting edges
• Hydraulic and electronic components from renowned manufacturers

Special accessories:

• Pneumatic sheet support for the rear area
• Finger protection by means of light curtain
• Extension of the side stop or front supports
• Removable mitre fence 0-180°
• Laser cutting line indicator
• Spare blade
