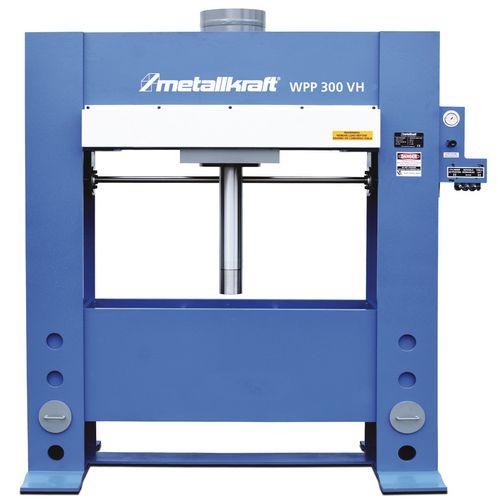

Fully hydraulic workshop press
WPP 300 VH
Robust construction with movable cylinder
50.900,00
EUR excl. Tax / pc(s).
61.080,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4050300
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For pressing out and pressing in bearings, bolts and bushings as well as for repair and assembly work, press work, load tests, weld test tests and much more

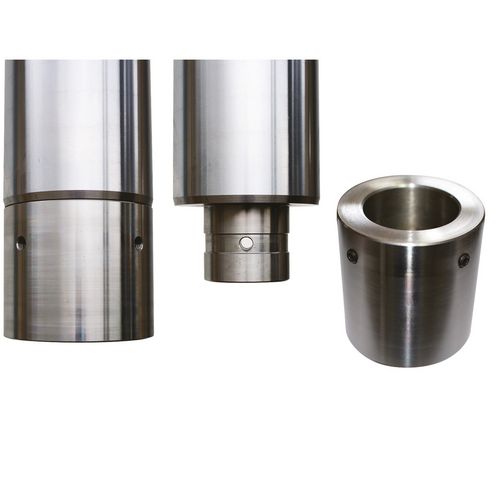

- With pressure mandrel adapter for two different pressing diameters of the cylinders
- Hydraulic control of the stroke and the right / left movement of the cylinder and the height adjustment of the table
- Cylinder can be moved laterally via lever
- Pressure-sensitive hand levers for regulating the feed rates
- Pressing pressure readable via manometer
Quality Made in Canada
| Pressure force | 300 t |
| Piston stroke | 508 mm |
| Piston travel | 508 mm |
| Lowering speed | 6.2 mm/s |
| Press speed | 1.4 mm/s |
| Return speed | 7.7 mm/s |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Diameter cylinder | 355 mm |
| Diameter piston rod | 152.4 mm |
| Diameter piston head | 355 mm |
| Clear width | 1523 mm |
| Clear height max. | 723 mm |
| Hole spacing for table height adjustment | 203 mm |
| Frame depth | 609 mm |
| Width/depth of machine feet | 1167 mm |
| Work table width | 602 mm |
| Work table length | 1523 mm |
| Depth without foot | 686 mm |
| Length approx. | 2132 mm |
| Width/depth approx. | 1167 mm |
| Height approx. | 2386 mm |
| Weight approx. | 5910 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 7,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Hydraulic system | |
|---|---|
| Oil capacity (empty cylinder) | 76 l |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
