| Pressure force | 160 t |
| Piston stroke | 400 mm |
| Piston travel | 550 mm |
| Lowering speed | 10 mm/s |
| Press speed | 1.5 mm/s |
| VPE | 1 |

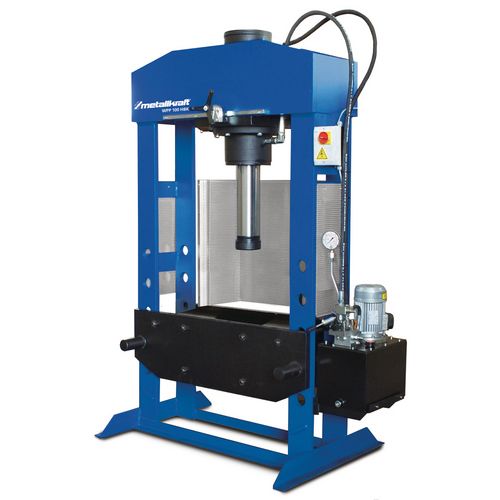

Hydraulic workshop press
WPP 160 HBK
Heavy duty with moving piston and two piston speeds
17.579,00
EUR excl. Tax / pc(s).
21.094,80 EUR incl. 20% Tax / pc(s).
21.094,80 EUR incl. 20% Tax / pc(s).
Promotional price *
15.799,00 EUR excl. Tax / pc(s).18.958,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 4013160
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Increased stability due to improved design of the machine base, cylinder adjustment via handle and hand wheel, manometer on the machine side
- Suitable for assembly and straightening work as well as for workpiece checks or the pressing and pressing of bearings and other components
- Ideal for technical workshops, repair shops and technical training facilities

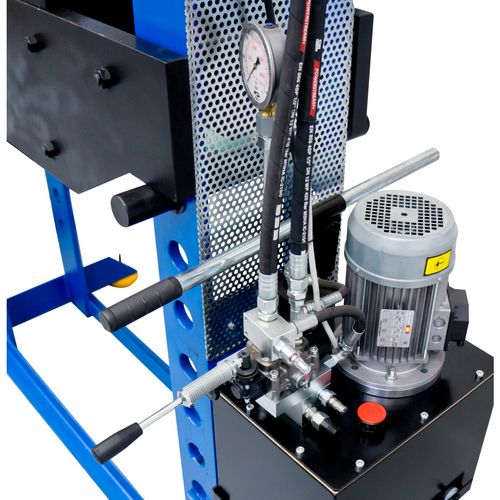

- With two piston speeds and pressure regulation by throttle screw
- Pressure gauge for pressure gauge

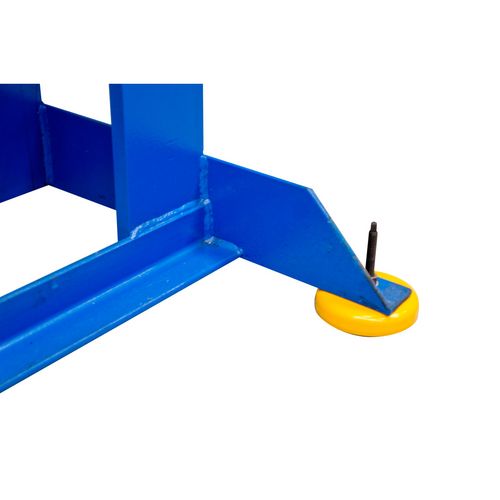

- Heavy machine frame welded from steel profiles to absorb the resulting compressive force of the cylinder
- The hydraulics work extremely precisely in both electrical and manual mode

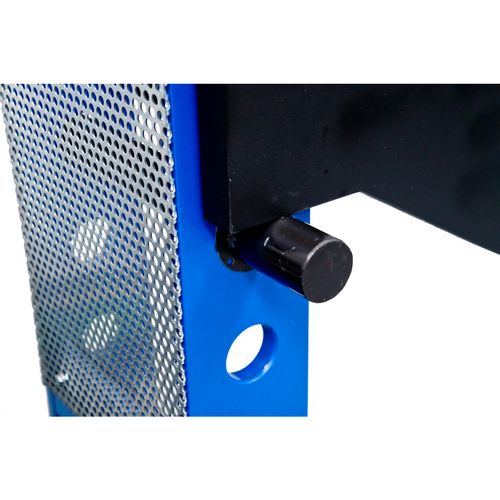

- Adjustment of the cylinder via rack to handwheel
- Heavy and robust welded construction
- More extensive accessories
- Quality made in Europe
| Dimensions and weights | |
|---|---|
| Clear width | 1020 mm |
| Max. installation height | 1020 mm |
| Frame depth | 300 mm |
| Length approx. | 1950 mm |
| Width/depth approx. | 1000 mm |
| Height approx. | 2450 mm |
| Weight approx. | 1780 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Hydraulic system | |
|---|---|
| Hydraulic oil tank capacity | 30 l |
| Hydraulic oil operating capacity | 30 l |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
