Hydraulic frame press
RP U 1020-150
Universally applicable by equipping with individual bending, pressing, embossing, straightening or cutting tools
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 4021015
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Very heavy and robust welded construction
- Upper beam twice to ensure parallelism
- Large support table with T-slots and central bore

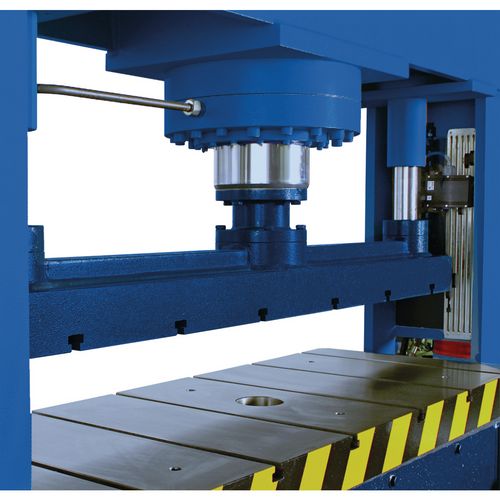

- Large plunger plate with T-slots

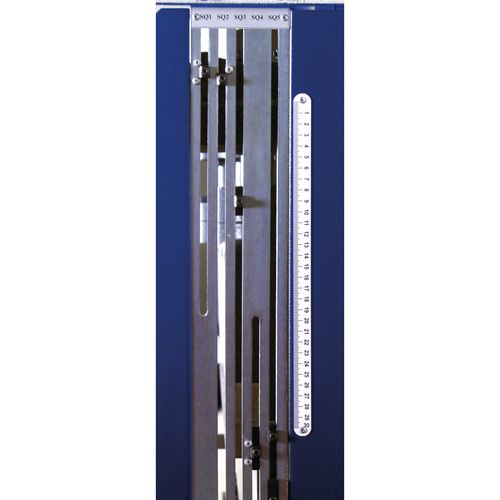

- Upper and lower end position of the piston stroke infinitely adjustable via cams
- Pressure infinitely adjustable
- Pressure gauge for pressure gauge
- Height-adjustable work table
- Device for table height adjustment
- Two-hand operation and foot pedal
| Pressure force | 150 t |
| Piston stroke | 300 mm |
| Lowering speed | 9 mm/s |
| Press speed | 5 mm/s |
| Return speed | 10 mm/s |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Max. installation height | 610 mm |
| Min. installation height | 275 mm |
| Hole spacing for table height adjustment | 190 mm |
| Work table width | 600 mm |
| Work table length | 1020 mm |
| Work table bore diameter | 100 mm |
| Length approx. | 2110 mm |
| Width/depth approx. | 1000 mm |
| Height approx. | 2450 mm |
| Weight approx. | 2400 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 11 kW |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
Oil filling
