| Dimensions and weights | |
|---|---|
| Width/depth approx. | 650 mm |

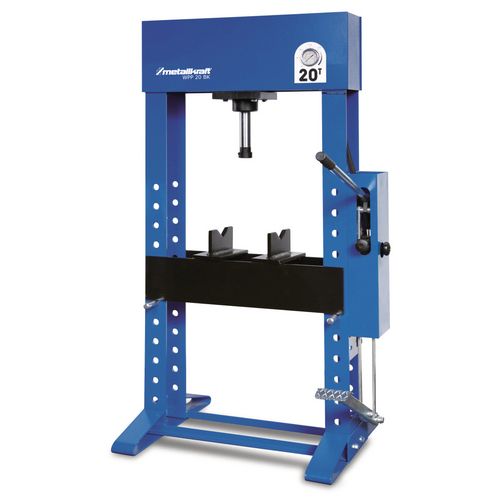

Hydraulic workshop press
WPP BK
With hand and foot pump and movable cylinder
From
1.899,00
EUR excl. Tax / pc(s).
From 2.278,80 EUR incl. 20% Tax / pc(s).
From 2.278,80 EUR incl. 20% Tax / pc(s).
Promotional price *
From 1.679,00 EUR excl. Tax / pc(s).From 2.014,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Price | Promotional price * | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Pressure force (t) | Max. load on prism jaw (t) | Piston stroke (mm) | Piston travel (mm) | VPE | Clear width (mm) | Max. installation height (mm) | Frame depth (mm) | Length approx. (mm) | Height approx. (mm) | Weight approx. (kg) | EUR excl. Tax | EUR incl. 20% Tax | EUR excl. Tax | EUR incl. 20% Tax | |
| WPP 20 BK | 4002020 | 20 | 5 | 160 | 450 | 1 | 690 | 950 | 180 | 1010 | 1750 | 210 | 1.679,00 | 2.014,80 | |||
| WPP 30 BK | 4002030 | 30 | 7.5 | 160 | 550 | 1 | 790 | 1030 | 200 | 1240 | 1920 | 280 | 2.799,00 | 3.358,80 | |||
| WPP 50 BK | 4002050 | 50 | 12.5 | 150 | 500 | 1 | 790 | 1000 | 210 | 1400 | 2000 | 360 | 3.199,00 | 3.838,80 | |||
Select Attributes
General
- Pressure force
- Max. load on prism jaw
- Piston stroke
- Piston travel
- VPE
Dimensions and weights
- Clear width
- Max. installation height
- Frame depth
- Length approx.
- Height approx.
- Weight approx.
Price
- excl. Tax
- incl. 20% Tax
Promotional price
- excl. Tax
- incl. 20% Tax
Productdetails
- For all repair and assembly work, eg: straightening axles, girders, shafts, etc .; Pressing and pressing bearings, bolts and bushings; Pressing and squeezing work; Load tests and welding sample tests; and much more.
- Stable welded construction

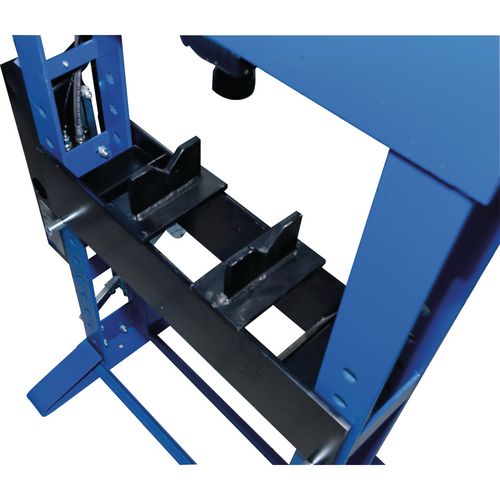

- Robust frame with perforation for the adjustment of the work table
- Reliable, particularly precise hydraulic from European production
- Pressure build-up by hand or foot operation of the pump lever
- By foot pump both hands free for fixation of the workpiece
- Pressing pressure readable via manometer
- With automatic return of the piston
- With safety valve to protect against overload
- Quality Made in Europe
Note:
- For processing flat material, pressing in bearings, bolts and the like, be sure to use the optional perforated plates.
| Electrical Data | |
|---|---|
| Supply voltage | 400 |
| Mains frequency | 50 |
