| Cutting pressure max. | 12 t |
| Cutting range length | 200 mm |
| Cutting range width | 200 mm |
| Work table length | 985 mm |
| Work table width | 900 mm |
| Work table height | 945 mm |
| Cutting performance 90° (tensile strength 400 N/mm²) | 6 mm |
| Cutting angle | 30 – 140 ° |
| Number of strokes | 15 /min |
| Oil tank capacity | 58 l |
| VPE | 1 |

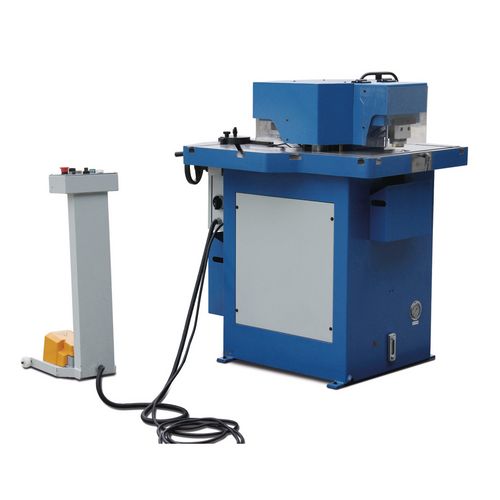

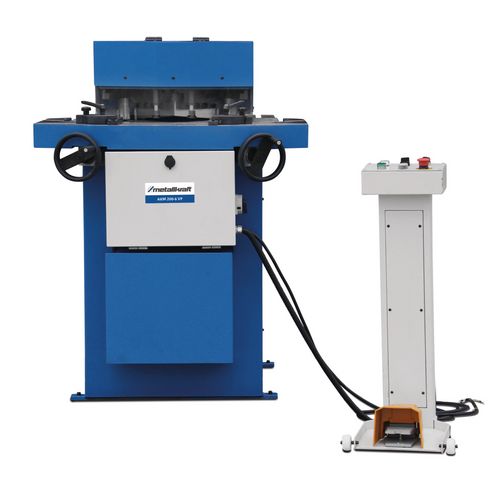

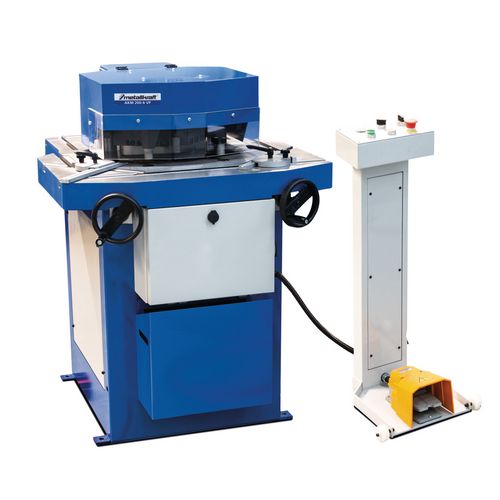

Notching machine with punching station
AKM 200-6 VP
For fast notching with variable angle and for hole punching
11.099,00
EUR excl. Tax / pc(s).
13.318,80 EUR incl. 20% Tax / pc(s).
13.318,80 EUR incl. 20% Tax / pc(s).
Promotional price *
10.599,00 EUR excl. Tax / pc(s).12.718,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3837060
Are you interested in this product?
Put a request
Find Trader
Productdetails
- User-friendly and energy-saving thanks to the hydraulic drive
- Heavy, stable construction

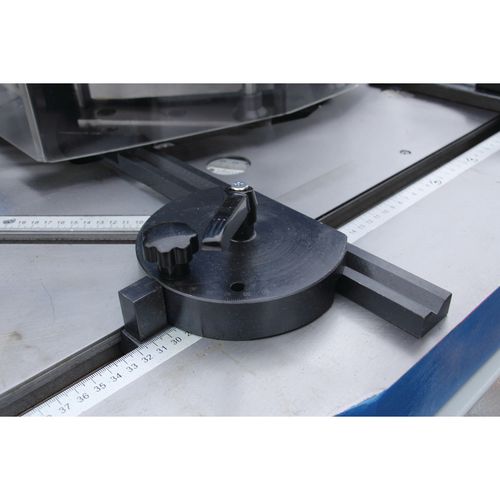

- Solid table with recessed scales and T-slots for precise adjustment of the swiveling stops
- Exact angle adjustment Via two handwheels

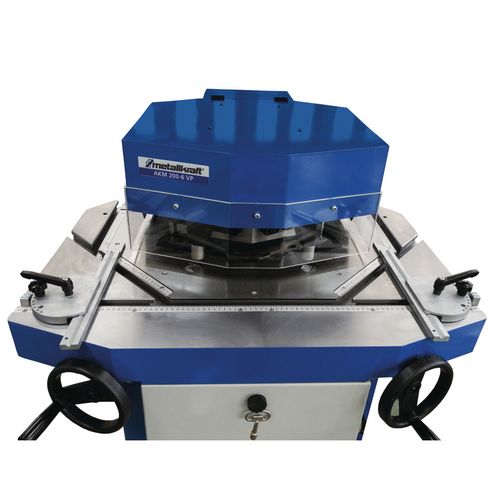

- Finger protection cover made of plexiglass for an optimal view of the cutting edge

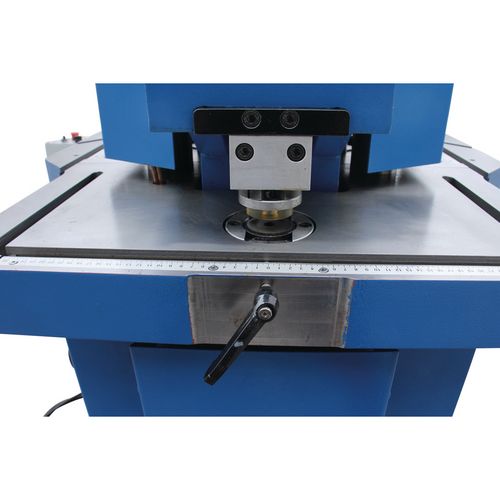

- Punching station with 12 tons of punching pressure on the back
- Operation via pedal
- Delivered with hydraulic oil
- Heavy, stable construction < li>Exact angle adjustment via two handwheels
- punching station with 12 tons of punching pressure on the back
| Dimensions and weights | |
|---|---|
| Length approx. | 1065 mm |
| Width/depth approx. | 900 mm |
| Height approx. | 1210 mm |
| Weight approx. | 1020 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 4 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Pneumatic connection | |
|---|---|
| Working preasure | 160 bar |
| Punching station | |
|---|---|
| Punching force punching station | 12 t |
| Punch hole diameter max. | 40 mm |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Knife set for steel, top
- Knife set for steel, below
- Hydraulic oil
