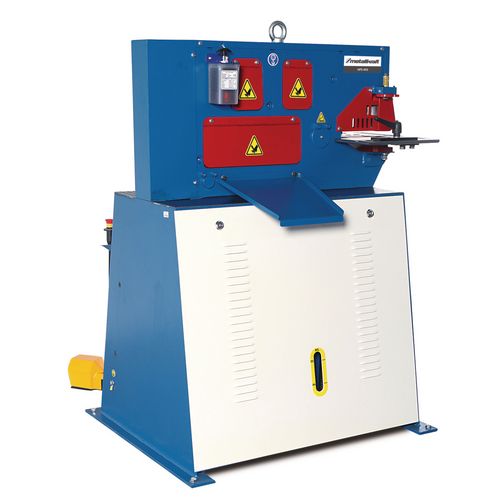

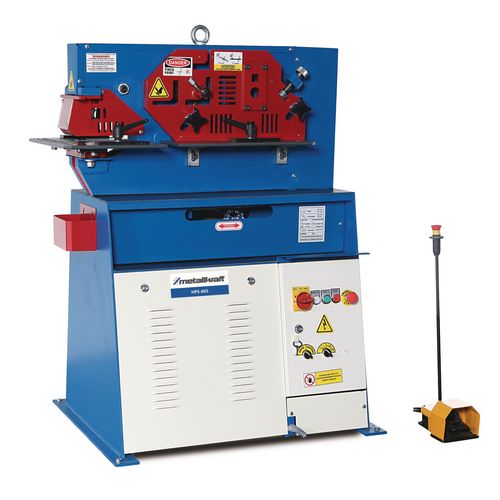

Hydraulic sectional steel shears / punching machine

HPS

Combined machine with up to 5 processing stations and foot operation

Price upon request

Prices are recommended retail prices. Retailer prices may vary.

Are you interested in this product?

Put a request

Find Trader

Variations

		Angled steel shears					Dimensions and weights				Electrical Data	Flat steel shears					Notching station				Punching station								Steel bar shears		General	Price
Title	Art.-No.	Cutting capacity 90° L section (mm)	Cutting capacity 45° L section (mm)	Cutting capacity U-I section (accessory) (mm)	Cutting capacity T section (accessory) (mm)	Working height (mm)	Length approx. (mm)	Width/depth approx. (mm)	Height approx. (mm)	Weight approx. (kg)	Drive motor output (kW)	Material width x max. thickness (mm)	Material max. width x thickness (mm)	Knife length (mm)	Angled cut 45° max. leg length x max. thickness (mm)	Working height (mm)	Working height (mm)	Max. material thickness	Max. notching width	Max. notching depth	Punching force (t)	Diameter x max. sheet thickness (steel 400 N/mm²) (mm)	Max. diameter x sheet thickness (steel 400 N/mm²) (mm)	Reach (mm)	Max. lift stroke (mm)	Stroke count (/min)	Working height (mm)	Extended reach (factory option)	Capacity round material (mm)	Capacity square material (mm)	VPE	EUR excl. Tax	EUR incl. 20% Tax
HPS 40S	3819040	80 x 80 x 8	50 x 6	76 x 38	38 x 6	1100	1100	800	1520	580	3	200 x 13	300 x 6	356	80 x 10	980	100 x 100 x 8				40	20 x 15	30 x 10	175	50	20	980		30	25	1	Price upon request	-
HPS 45 S	3819045	100 x 100 x 10	70 x 6	80 x 45	40 x 5	1140	1500	950	1680	1400	4	200 x 15	300 x 12	316	80 x 10	955	100 x 100 x 8	8	35	75	45	22 x 15	38 x 8	175	50	20	955		30	25	1	Price upon request	-
HPS 55 DS	3819055	120 x 120 x 12	70 x 10	120 x 58	80 x 9	1130	1500	950	1880	1520	5.5	200 x 20	300 x 15	317	80 x 15	900	100 x 100 x 10	10	45	90	55	20 x 20	40 x 10	255	60	25	900	620	40	40	1	Price upon request	-
HPS 60 S	3819060	120 x 120 x 12	70 x 10	80 x 45	80 x 9	1155	1520	950	1780	1440	4	200 x 20	300 x 15	317	80 x 10	955	100 x 100 x 10	10	42	100	60	28 x 15	38 x 11	220	60	25	955		40	40	1	Price upon request	-
HPS 65 DS	3819065	120 x 120 x 12	70 x 10	120 x 58	90 x 11	1140	1700	950	1880	1600	5.5	300 x 20	375 x 15	380	100 x 15	900	100 x 100 x 10	10	45	90	65	26 x 20	57 x 10	305	55	25	900	620	45	45	1	Price upon request	-
HPS 85 DS	3819085	150 x 150 x 15	80 x 8	160 x 74	100 x 11	1200	1920	950	2040	2315	7,5	380 x 20	480 x 15	482	120 x 15	940	100 x 100 x 13	13	52	100	85	33 x 20	57 x 10	355	80	25	940	620	50	50	1	Price upon request	-
HPS 115 DS	3819115	150 x 150 x 15	80 x 10	200 x 90	120 x 13	1215	2040	950	2180	2920	11	380 x 25	600 x 15	610	120 x 15	935	100 x 100 x 13	13	60	100	115	34 x 26	55 x 16	355	80	25	935	620	55	50	1	Price upon request	-
HPS 175 DS	3819175	200 x 200 x 15	80 x 10	300 x 125	150 x 15	1130	2730	1150	2280	6000	11	380 x 30	600 x 20	610	120 x 15	810	100 x 100 x 16	16	60	100	175	40 x 32	57 x 22	625	80	22	810		65	50	1	Price upon request	-

Select Attributes

Angled steel shears

Cutting capacity 90° L section
Cutting capacity 45° L section
Cutting capacity U-I section (accessory)
Cutting capacity T section (accessory)
Working height

Dimensions and weights

Length approx.
Width/depth approx.
Height approx.
Weight approx.

Electrical Data

Drive motor output

Flat steel shears

Material width x max. thickness
Material max. width x thickness
Knife length
Angled cut 45° max. leg length x max. thickness
Working height

Notching station

Working height
Max. material thickness
Max. notching width
Max. notching depth

Punching station

Punching force
Diameter x max. sheet thickness (steel 400 N/mm²)
Max. diameter x sheet thickness (steel 400 N/mm²)
Reach
Max. lift stroke
Stroke count
Working height
Extended reach (factory option)

Steel bar shears

Capacity round material
Capacity square material

General

Price

excl. Tax
incl. 20% Tax

Productdetails

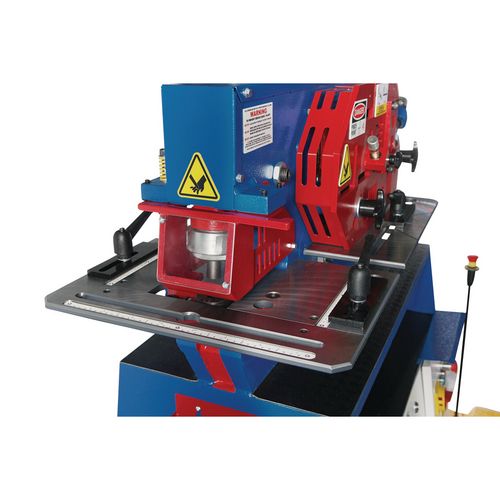

Punching station, flat steel shears, angle steel shears, sectional steel shears, available with notching station starting from HPS 45S
DS series with two working cylinders and two foot pedals for simultaneous use with punching station and sectional steel shears
Stepless adjustment of the stroke
Larger reach for punching station with 620 mm optional, available from HPS 55DS
Heavy and rigid welded construction
Standard with notching knife starting from HPS 45S
With powerful 400 Volt motor
V-notching knife, oversized punching device and larger throat depth for punching station available on request
Two-stage foot pedal for inching operation
Stamps and dies No. 1, No. 2, No. 3, No. 30, No. 45, No. 60 can be used with the standard delivery scope of the machine. Use of punch and die No. 4 and No. 80 optional (except HPS 40S)

Advantages of punching over drilling:

High time savings - cycle times
No chips
No cooling

Note:

All hydraulic sectional shears are delivered with oil

Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
