| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |

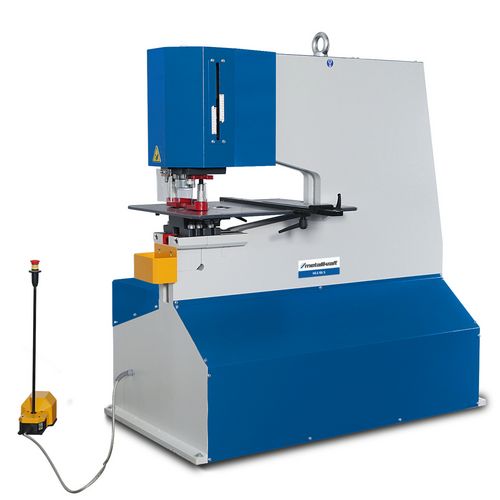

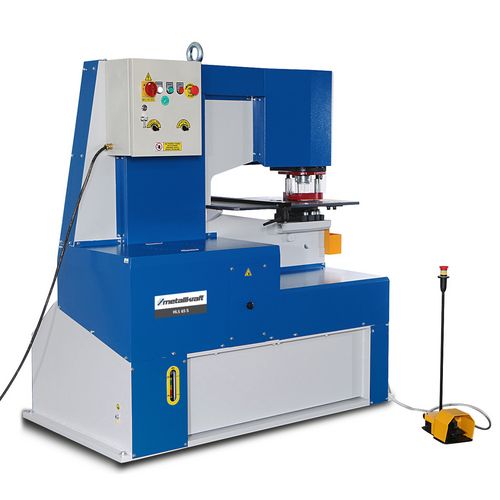

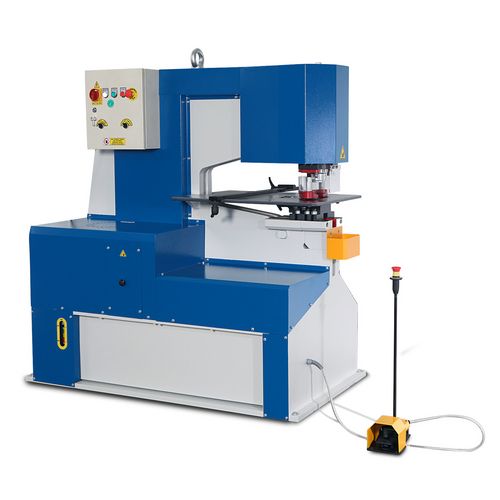

Hydraulic punch
HLS
With foot control from 65 to 175 t punching pressure
From
14.650,00
EUR excl. Tax / pc(s).
From 17.580,00 EUR incl. 20% Tax / pc(s).
From 17.580,00 EUR incl. 20% Tax / pc(s).
Promotional price *
From 13.699,00 EUR excl. Tax / pc(s).From 16.438,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Are you interested in this product?
Put a request
Find Trader
Variations
| Dimensions and weights | Electrical Data | Notching station | Punching station | General | Price | Promotional price * | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | Sheet metal bending max. width x thickness (accessory) (mm) | Punching force (t) | Diameter x max. sheet thickness (steel 400 N/mm²) (mm) | Max. diameter x sheet thickness (steel 400 N/mm²) (mm) | Max. lift stroke (mm) | Stroke count (/min) | VPE | EUR excl. Tax | EUR incl. 20% Tax | EUR excl. Tax | EUR incl. 20% Tax | |
| HLS 65 S | 3818065 | 1600 | 900 | 1800 | 2440 | 5.5 | 500 x 3 | 65 | 26 x 20 | 57 x 10 | 55 | 22 | 1 | 13.699,00 | 16.438,80 | |||
| HLS 85 S | 3818085 | 1850 | 950 | 1920 | 3270 | 7,5 | 500 x 3 | 85 | 33 x 20 | 57 x 12 | 80 | 21 | 1 | 16.799,00 | 20.158,80 | |||
| HLS 115 S | 3818115 | 2000 | 950 | 1970 | 3760 | 11 | 700 x 3 | 115 | 34 x 26 | 55 x 16 | 80 | 21 | 1 | 19.490,00 | 23.388,00 | - | - | |
| HLS 175 S | 3818175 | 2700 | 1120 | 2160 | 5270 | 11 | 700 x 4 | 175 | 40 x 32 | 57 x 22 | 80 | 21 | 1 | 36.690,00 | 44.028,00 | - | - | |
Select Attributes
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Drive motor output
Notching station
- Sheet metal bending max. width x thickness (accessory)

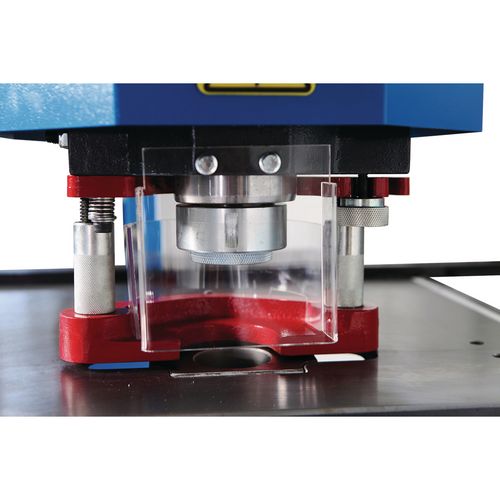

Punching station
- Punching force
- Diameter x max. sheet thickness (steel 400 N/mm²)
- Max. diameter x sheet thickness (steel 400 N/mm²)
- Max. lift stroke
- Stroke count
General
- VPE
Price
- excl. Tax
- incl. 20% Tax
Promotional price
- excl. Tax
- incl. 20% Tax
Productdetails
- Heavy and stable welded construction

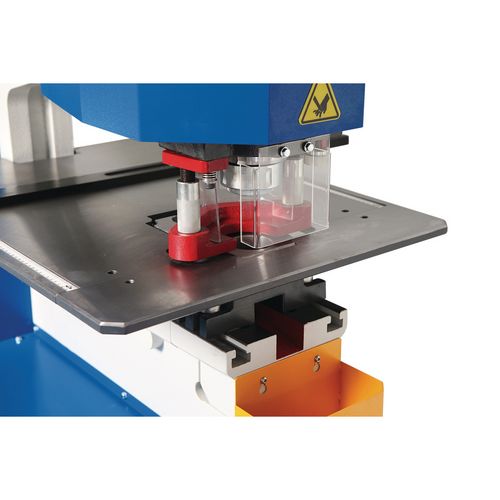

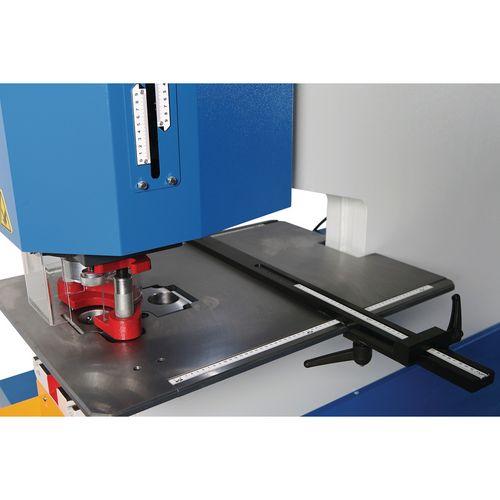

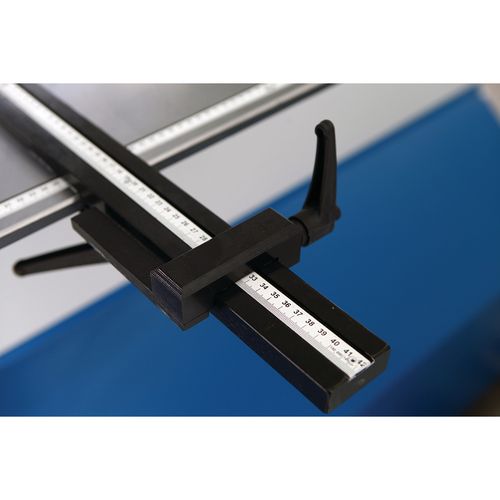

- Punching table with scale and stops

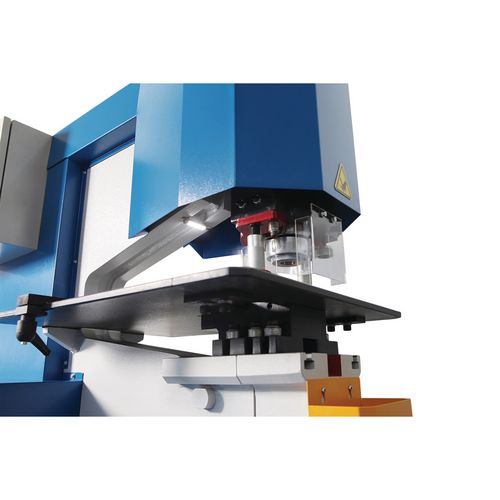

- Extra large projection with 625 mm

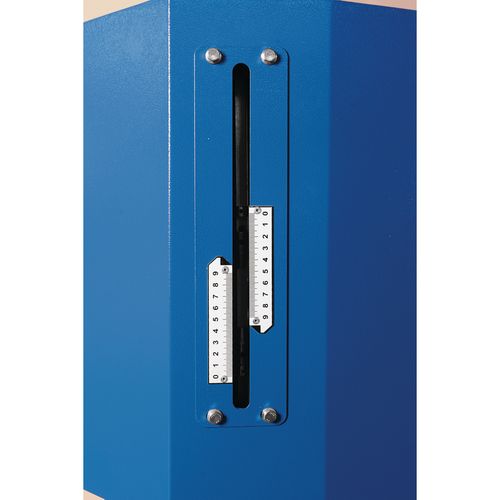

- Time-saving, stepless stroke adjustment
- With a powerful engine
- Stepless adjustment of the stroke
- Punching saddle with second holder for machining UPN profiles
- Stamps and dies no. 1, no. 2, no. 3, no. 30, no. 45, no. 60 can be used with the standard delivery scope of the machine. Use of punch and die no. 4 and no. 80 optional
Important information:
- Please specify when ordering material to be edited!
| Punching station | |
|---|---|
| Reach | 625 mm |
| Working height | 950 mm |
Unit: pc(s).
