| Chamfer angle | 45 (optional 30 / 37.5) ° |
| Chamfer width at 30° | 0 – 11.7 mm |
| Chamfer width at 37.5° | 0 – 12 mm |
| Chamfer width at 45° | 0 – 11 mm |
| Speed(s) | 2300 – 6500 min¯¹ |
| VPE | 1 |

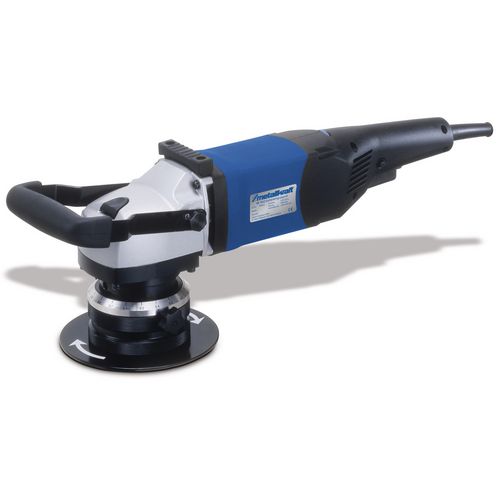

Edge deburrer
KE 10-2
For radii, bores, inside and outside edges, up to 10.6 mm chamfer width
1.009,00
EUR excl. Tax / pc(s).
1.210,80 EUR incl. 20% Tax / pc(s).
1.210,80 EUR incl. 20% Tax / pc(s).
Promotional price *
899,00 EUR excl. Tax / pc(s).1.078,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 3990012
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Ideal for the production of clean visible edges and for weld preparation
- Handy and powerful device
- Setting the chamfer height without tools
- For machining steel and aluminum
- For deburring radii and holes from 30 mm diameter

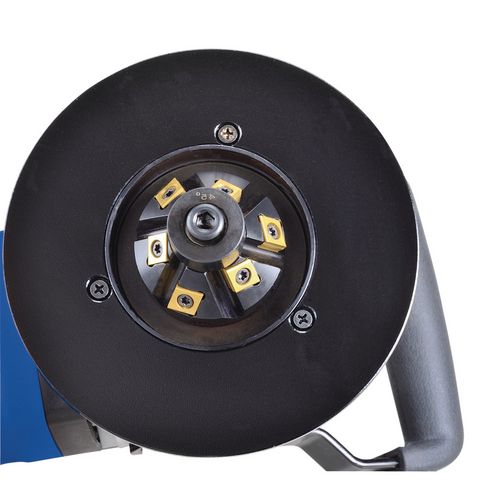

- With 6-fold insert holder
- Feed is done manually
- Speed from 2,300 - 6,500 rpm infinitely adjustable
Room amenities
- For the production of clean visible edges, eg with steel beams
- With 6-fold insert holder
- Bevel width from 0 - 10.6 mm steplessly adjustable

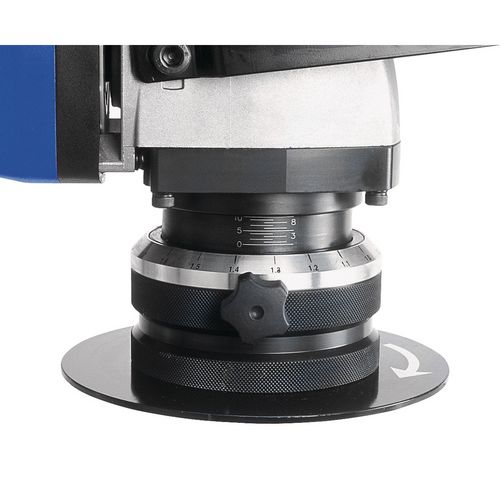

- Convenient and accurate chamfer width adjustment thanks to easy-to-read scale
- 3 chamfer angle 30 ° / 37.5 ° / 45 °
| Dimensions and weights | |
|---|---|
| Length approx. | 485 mm |
| Width/depth approx. | 192 mm |
| Height approx. | 150 mm |
| Weight approx. | 6.5 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1,8 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

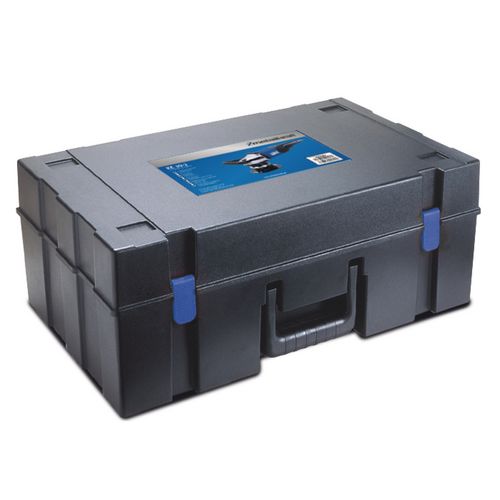

- Plastic case
- 6-fold cutting edge holder 45 °
- 1x insert set consisting of 6 inserts
- 1x tool set
- 1x front handle
