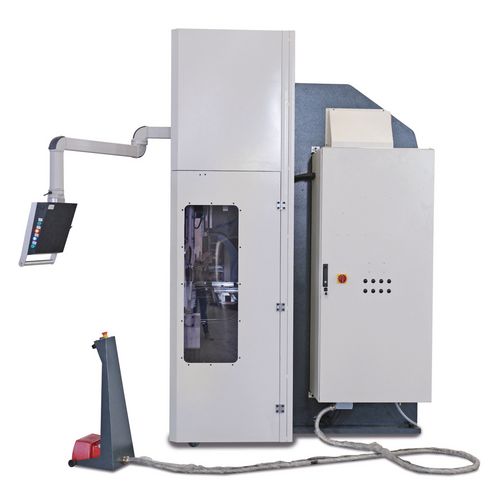

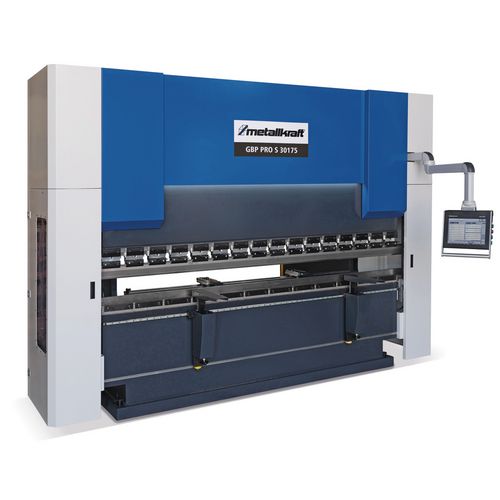

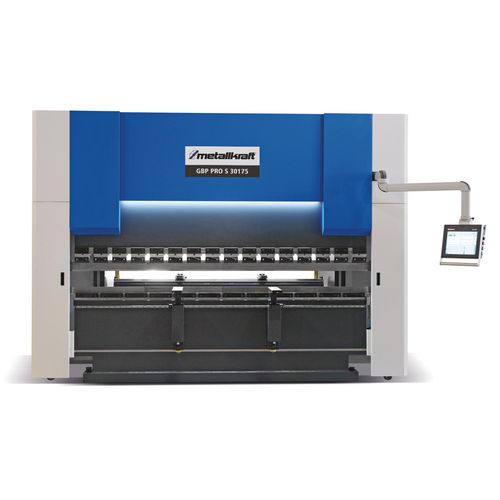

GBP PRO S 60400

Four powered axles, touch screen control DELEM DA 58 T, motorized crowning and manual upper tool-quick clamp

Price upon request

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 4257605

Are you interested in this product?

Put a request

Find Trader

Productdetails

Standard version:

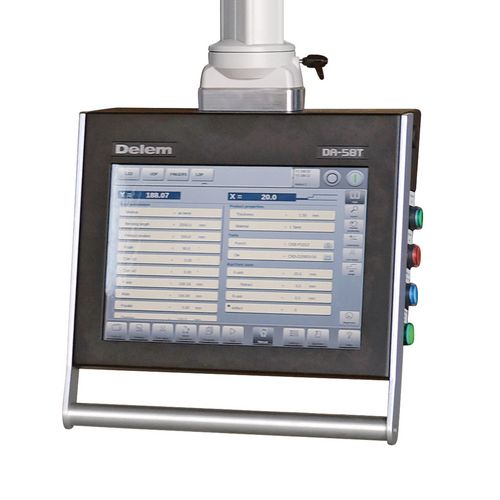

Touch screen control DELEM DA 58T with 2D color interface and bend sequence calculation.

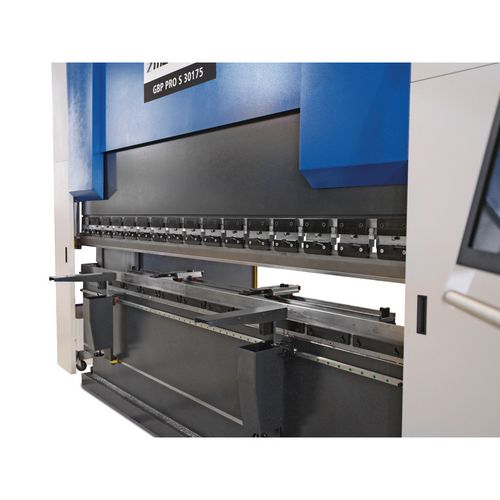

CNC-controlled, motor-driven X-axis guided on linear rails - driven by recirculating ball screws
CNC-controlled, motorized R-axis guided on linear rails - driven by recirculating ball screws
Backspace protection by means of light barrier
Safety devices FIESSLER Akas II and FMSC
CNC-controlled, motorized table crowning
Manual lateral adjustment of the stop fingers (Z-axis) on linear rail
Two front support arms adjustable on linear rail
Upper tool quick clamping (lateral removal)
Standard upper tool set 135 mm - 85°
Standard die set Multi-V 85° - 16/22/35/50 mm
Side protection doors monitored by limit switches
Control on swivelling arm on the right side
Electrical components from Schneider and Mitsubishi
Hydraulic components from HAWE and Ikron

Equipment options:

Controls (Cybelec CybTouch 19-2D with offline software or Delem DA 66T, DELEM DA-66T-2D/3D with offline software DA-60TL).
Extension of the X-axis to travel 1000mm
CNC-controlled, motorized Z1/Z2-axes
CNC-controlled, motorized Delta-X-axis
CNC-controlled 6-axis stop (tower version)
Special throat sizes
Hydraulic upper tool and die clamps
Additional fence fingers and front support arms
Second foot pedal for two-man operation
Manual or automatic central lubrication
Air conditioning for the control cabinet
Oil cooler
Oil warmer
Special tools
Special sizes on request

Pressing force	400 t
Bending length	6100 mm
Distance between columns	5600 mm
Stroke	350 mm
Rapid mode	120 mm/s
Bending speed	1 – 9 mm/s
Retraction	80 mm/s
Table height	960 mm
Table width	150 / 90 mm
X axis stroke	5 - 650 mm
X axis speed	250 mm
Oil tank capacity	500 l
VPE	1

Dimensions and weights
Length approx.	7500 mm
Width/depth approx.	2500 mm
Height approx.	3500 mm
Weight approx.	35000 kg

Electrical Data
Drive motor output	30 kW
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
Packaging unit: 1

Crowning

motor
