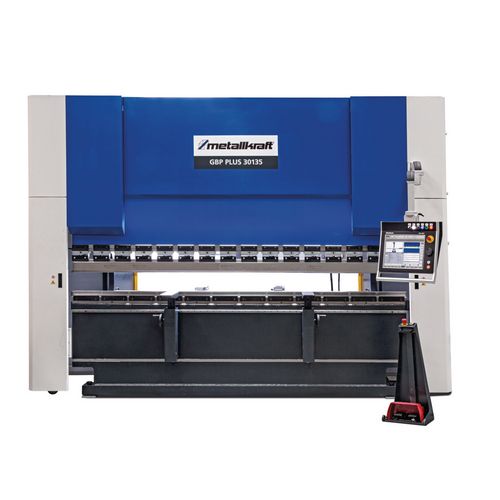

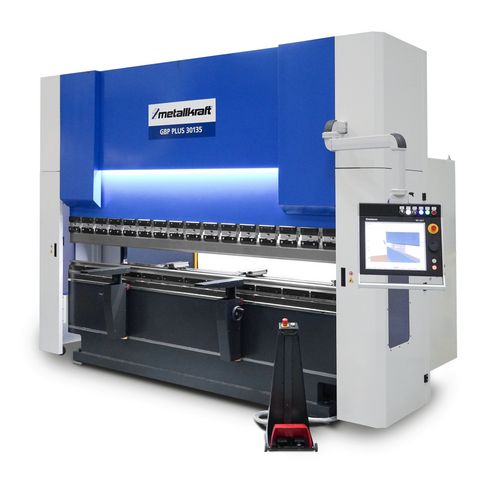

GBP PLUS 25100

With 4 driven axes, motorized crowning and manual upper tool quick clamping

Price upon request

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 4272510

Are you interested in this product?

Put a request

Find Trader

Productdetails

Standard version:

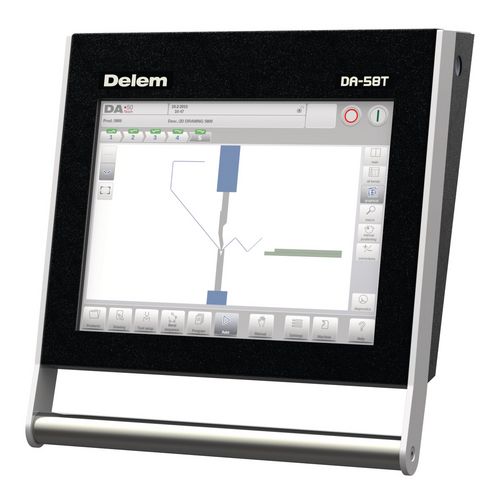

Graphical 2D CNC control DELEM DA-58T with offline software TL
Two linear encoders (GIVI) on Press bar for checking the desired position
High-quality linear encoders with an accuracy of 0.01 mm
CNC-controlled backgauge with two backgauge fingers
X-axis linearly guided and driven by ball screws via servomotor

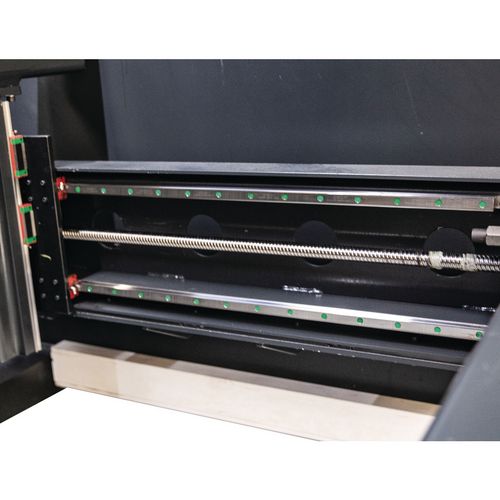

R-axis guided linearly and driven by ball screws via servomotor
Backgauge fingers on linear guides manually adjustable laterally

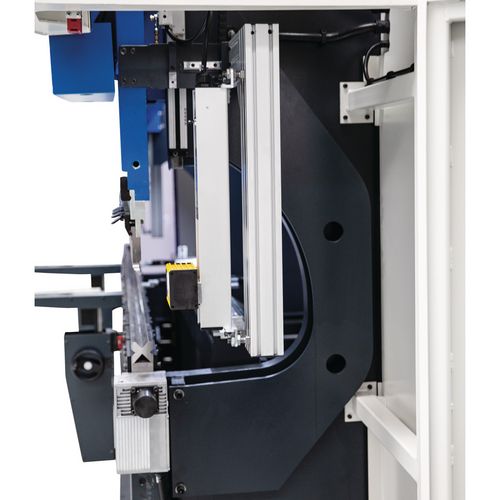

Safety laser Fiessler AKAS LC -II M with press safety control FMSC
CNC-controlled, motorized crowning device WILA to compensate for the spring deflection
Control panel on the right side of the machine on a swiveling arm
Solid and low-maintenance flat guide of the press beam

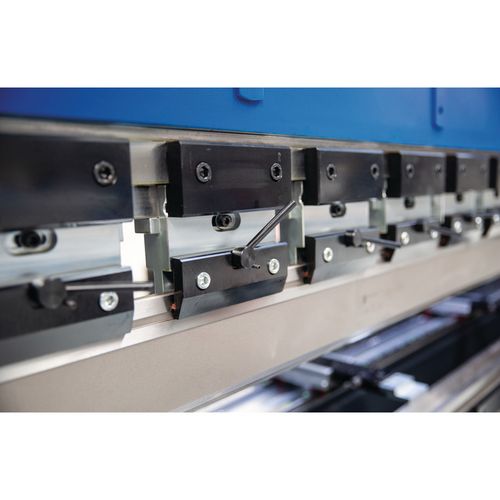

Manual top tool clamping (lateral removal), Promecam system / Amada
Top tool (Promecam/Amada), height 105 mm (3 x 835 mm / 1 x 805 mm sectioned)
Multi-V die, height 60 mm, V-openings 16/22/35/50 mm (3 x 835 mm / 1 x 805 mm sectioned)
Mobile foot control unit (BERNSTEIN) with emergency stop function and safety cable
Foot pedal with two switches (press bar up/down) and safety step in the down switch

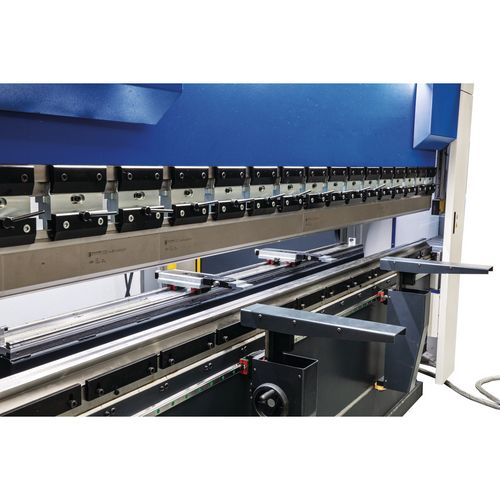

Two front support arms that can be quickly adjusted on the side on the linear guide
All linear guides and carriages from HIWIN motion control
Control-controlled oil quantity distribution between the cylinders
Monitoring of the relative cylinder position during bending process
Direct programming of the bending angle via control
Programmable bending and retraction speed and pressing time
Manual, semi-automatic or automatic working mode selectable
Honed cylinders, made from one block for highest accuracy and durability
Hydraulic components from HAWE (valves) and KCL Hydraulic (pump)

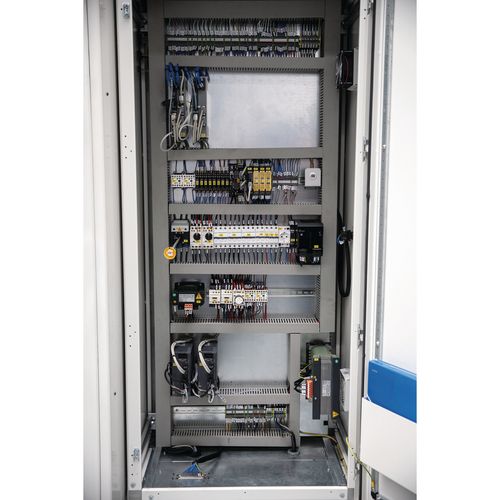

Electrical components from Schneider and Mitsubishi Electric
Large hydraulic tank to maintain the correct oil temperature
Hydraulic system protected by pressure relief valve
Drive motors protected by appropriate circuit breakers
Machine body in a particularly heavy and tension-free welded construction
Side doors easy to open and monitored by safety switches
Rear area protection using a light barrier system from REER Italy
Illumination of the work area by means of an LED bar in the press beam cover

Special accessories:

Controls (DELEM DA-66T-2D, DELEM DA-69T-3D, Cybelec CybTouch 15, Cybelec CybTouch 19-2D, Cybelec CybTouch 19 MX-3D)
Back gauge X/R/Z1/Z2 with X travel = 750 mm
Back gauge X/R/Z1/Z2 + Delta X (200 mm) with X travel = 750 mm
Backgauge X/X2/R1/R2/Z1/Z2 (tower version)
Hydraulic upper tool clamp WILA Pro
Hydraulic die clamp WILA Pro
Manual central lubrication
Automatic central lubrication
Bending aids with motorized height adjustment - can be moved laterally
Additional front support arm (without handwheel height adjustment)
Additional rear stop finger (manually movable)
Parking area 1,000 mm for front support arms or bending aids
Oil cooler
Oil warmer
Special sizes on request

Graphical 2D CNC control DELEM DA-58T with offline software TL
Two linear encoders (GIVI) on Press bar for checking the desired position
High-quality linear encoders with an accuracy of 0.01 mm
CNC-controlled backgauge with two backgauge fingers
X-axis linearly guided and driven by ball screws via servomotor
R-axis guided linearly and driven by ball screws via servomotor

Pressing force	100 t
Bending length	2505 mm
Distance between columns	2100 mm
Stroke	250 mm
Rapid mode	160 mm/s
Bending speed	1 – 10 mm/s
Retraction	100 mm/s
Table height	930 mm
Table width	60 mm
X axis stroke	5 - 750 mm
X axis speed	500 mm/s
Oil tank capacity	232 l
VPE	1

Dimensions and weights
Length approx.	3800 mm
Width/depth approx.	1800 mm
Height approx.	2900 mm
Weight approx.	8500 kg

Electrical Data
Drive motor output	11 kW
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
Packaging unit: 1

Crowning

motor
