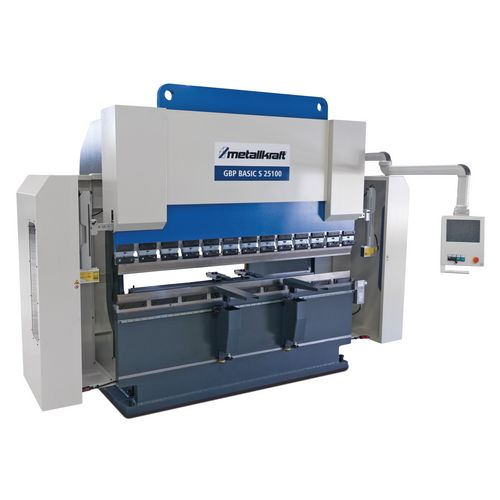

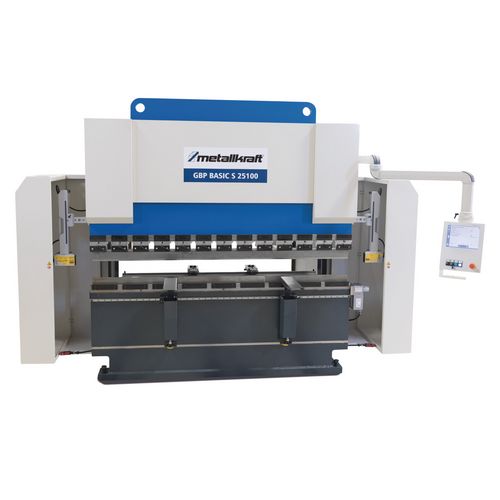

GBP BASIC S 2065

three controlled axes, motorized crowning, 2D touch screen control CYBELEC CybTouch 12

Price upon request

Prices are recommended retail prices. Retailer prices may vary.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 4247200

Are you interested in this product?

Put a request

Find Trader

Productdetails

Standard version:

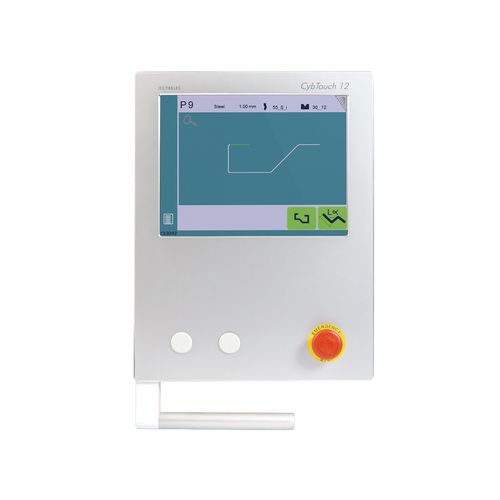

Touch screen CNC control CybTouch 12 with 2D color interface and bending sequence calculation.
CNC-controlled, motorized X-axis, guided on linear rails - driven by recirculating ball screws

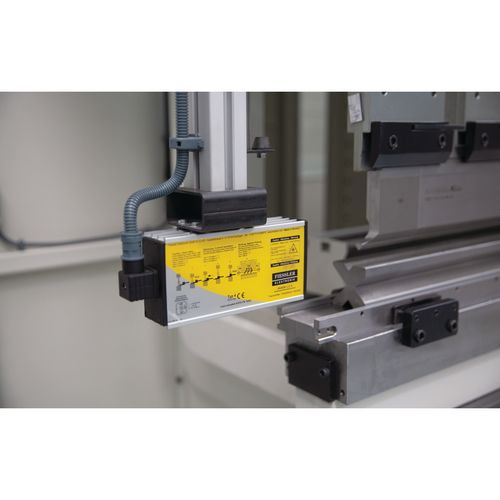

Safety devices FIESSLER Akas II and FMSC
Backspace protection by means of light barrier

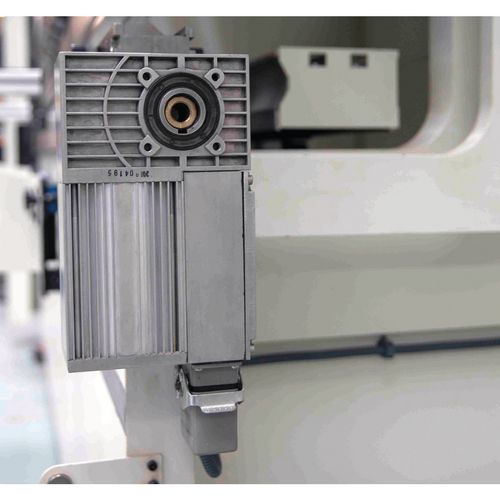

CNC-controlled, motorized table crowning
Manual height adjustment of the stop fingers (R-axis)
Manual lateral adjustment of the stop fingers (Z-axis) on linear rail

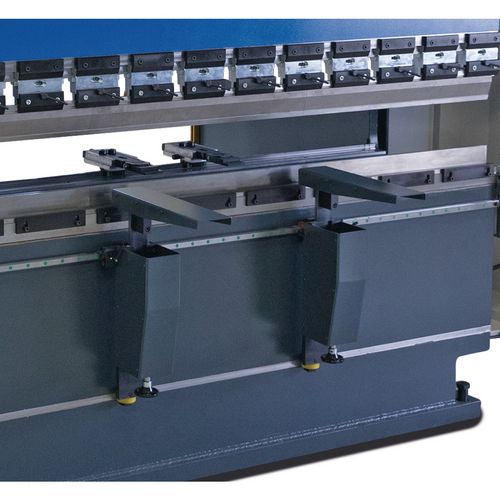

Two front support arms adjustable on linear rail

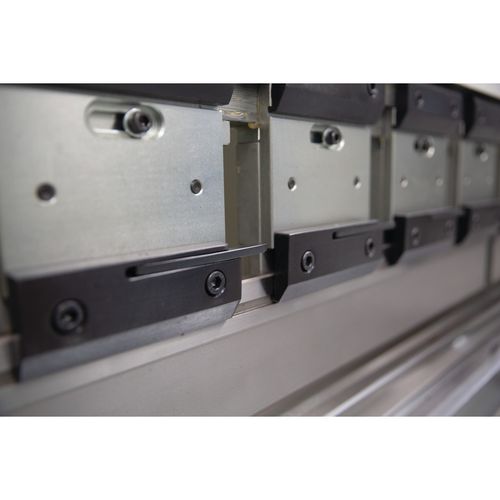

Upper tool quick clamping (lateral removal)
Standard upper tool set 135mm - 85°
Standard die set Multi-V 85°
Side protection doors monitored by limit switches
Control on swivelling arm on the right side
Electrical components from Schneider and Mitsubishi
Hydraulic components from HAWE and Ikron

Possible equipment options:

Controls (CybTouch 15 or Delem DA 58T)
Extension of the X-axis to travel 1000 mm
CNC-controlled, motorized R-axis
Preparation for tandem operation
Special throat size
Additional stop fingers and front support arms
Second foot pedal for two-man operation
Manual or automatic central lubrication
Air conditioning for the control cabinet
Oil cooler
Oil warmer
Special tools
Control on the left side of the machine
Special sizes on request

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Pressing force	65 t
Bending length	2070 mm
Distance between columns	1600 mm
Stroke	200 mm
Rapid mode	140 mm/s
Bending speed	1 – 10 mm/s
Retraction	140 mm/s
Table height	930 mm
X axis stroke	5 - 650 mm
X axis speed	250 mm/s
Oil tank capacity	110 l
VPE	1

Dimensions and weights
Length approx.	3200 mm
Width/depth approx.	1600 mm
Height approx.	2300 mm
Weight approx.	4100 kg

Electrical Data
Drive motor output	7,5 kW
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
Packaging unit: 1

Crowning

motor
