| Stroke | 300 mm |
| Bending speed | 20 mm/s |
| Table height | 920 mm |
| Table width | 98 mm |

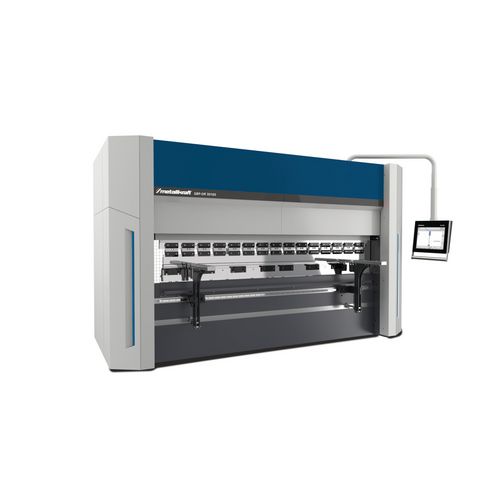

Electric CNC press brake
GBP DR
with belt system and spring return
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Dimensions and weights | Electrical Data | Price | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Pressing force (t) | Bending length (mm) | Distance between columns (mm) | Rapid mode (mm/s) | Retraction (mm/s) | X axis stroke (mm) | X axis speed (mm/s) | VPE | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Drive motor output (kW) | EUR excl. Tax | EUR incl. 20% Tax | |
| GBP DR 1540 | 4561501 | 40 | 1530 | 1530 | 170 | 170 | 500 | 1000 | 1 | 2660 | 1960 | 2500 | 1600 | 11 | Price upon request | - | |
| GBP DR 2050 | 4562001 | 50 | 2040 | 2040 | 150 | 150 | 500 | 1000 | 1 | 3170 | 1960 | 2500 | 1850 | 11 | Price upon request | - | |
| GBP DR 2580 | 4562501 | 80 | 2550 | 2550 | 90 | 90 | 750 | 300 | 1 | 3680 | 1960 | 2500 | 6100 | 11 | Price upon request | - | |
| GBP DR 30100 | 4563001 | 100 | 3050 | 3050 | 75 | 75 | 750 | 300 | 1 | 4220 | 1960 | 2500 | 6500 | 11 | Price upon request | - | |
| GBP DR 30130 | 4563002 | 130 | 3050 | 3050 | 85 | 85 | 750 | 300 | 1 | 4220 | 1960 | 2500 | 8500 | 12.5 | Price upon request | - | |
| GBP DR 30150 | 4563003 | 150 | 3050 | 3050 | 100 | 100 | 750 | 300 | 1 | 4740 | 2000 | 2680 | 13200 | 22 | Price upon request | - | |
| GBP DR 36170 | 4563603 | 175 | 3570 | 3570 | 90 | 90 | 750 | 300 | 1 | 5340 | 2100 | 2680 | 13400 | 22 | Price upon request | - | |
| GBP DR 40200 | 4564004 | 200 | 4080 | 4080 | 75 | 75 | 750 | 300 | 1 | 5740 | 2130 | 2680 | 14100 | 22 | Price upon request | - | |
Select Attributes
General
- Pressing force
- Bending length
- Distance between columns
- Rapid mode
- Retraction
- X axis stroke
- X axis speed
- VPE
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Drive motor output
Price
- excl. Tax
- incl. 20% Tax
Productdetails
Standard design:
- Purely electric drive via servo motors, belts and pulleys reduces energy consumption and noise pollution
- Very high pressing speed with 20mm/s
- No maintenance and leakage of hydraulics - no hydraulic oil required
- Machine body as dimensionally stable, closed O-frame - no springing up
- 2D-CNC graphic control Delem DA-58T control with large 15" touch screen, ergonomically mounted on swivel arm
- Offline software Profile-T Lite
- Y1, Y2, X and R axes CNC controlled
- Motorized backgauge driven by zero-backlash ball screws and solid guides
- Two backgauge fingers manually adjustable in longitudinal direction on linear rail
- Safety laser Nuova DSP-AP moving with the upper beam
- Safety PLC Nuova MCS
- Motorized CNC control automatically calculated by the CNC
- Promecam/Amada tooling system
- Quick upper die clamping with lateral die removal
- Simple die clamping via clamping plates
- Complete set of sectioned dies
- Slightly cranked upper die 85° with 104mm height
- Quadruple die 85° with V-openings 16, 22, 35 and 50mm
- Two quick adjustable front support arms on linear rails
- High quality electronic components
- LED work area illumination
- Mobile double foot pedal
Special accessories:
- Various CNC controls (e.g.: Delem DA-66T or Delem DA-69T)
- 4-, 5-, or 6-axis backgauge systems
- Additional backgauge fingers
- Hydraulic or pneumatic tool clamping
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
