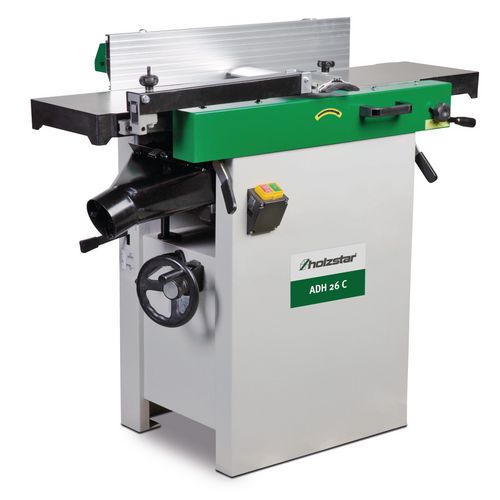

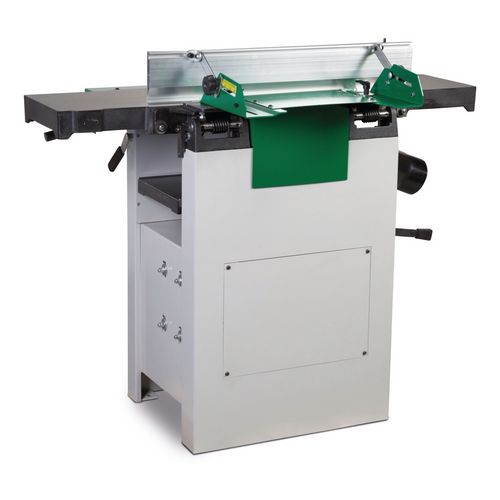

Surface and thickness planer
ADH 26C (230 V)
1.499,00
EUR excl. Tax / pc(s).
1.798,80 EUR incl. 20% Tax / pc(s).
1.798,80 EUR incl. 20% Tax / pc(s).
Promotional price *
1.159,00 EUR excl. Tax / pc(s).1.390,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5904026
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For angular joining (90 °) and straightforward dressing of solid wood boards, planks and strips
- Simple and precise adjustment of the chip removal in dimensionally accurate thickness planing
- Automatic workpiece feed

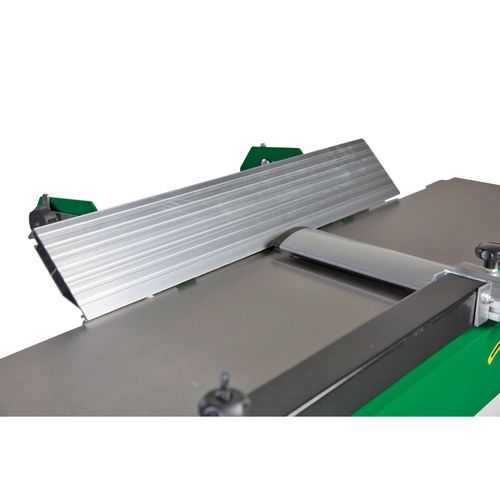

- Easily adjustable aluminum dressing fence, tiltable from 90 ° to + 45 °
- Large dimensioned dressing table made of ribbed die-cast aluminum
- Large thick cast iron table with ground surface
- Integrated, foldable chip extractor hood
Equipment:

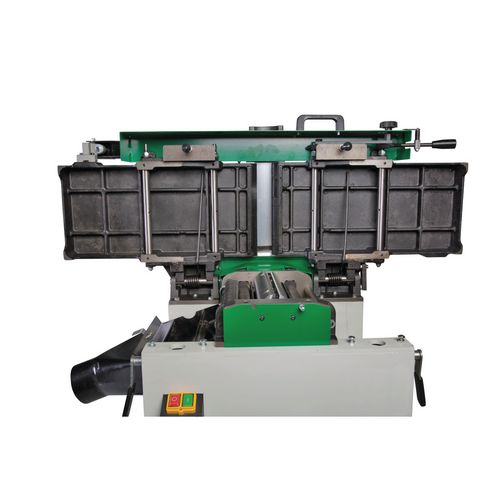

Simultaneous opening of the dressing tables

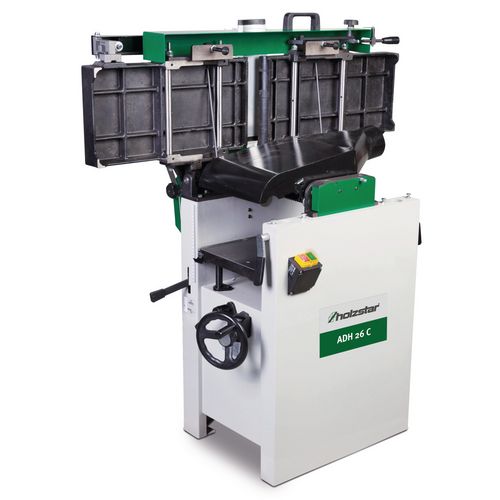

- Simultaneous folding up of the dressing tables with spring support for a quick and easy changeover for thickness planing in seconds

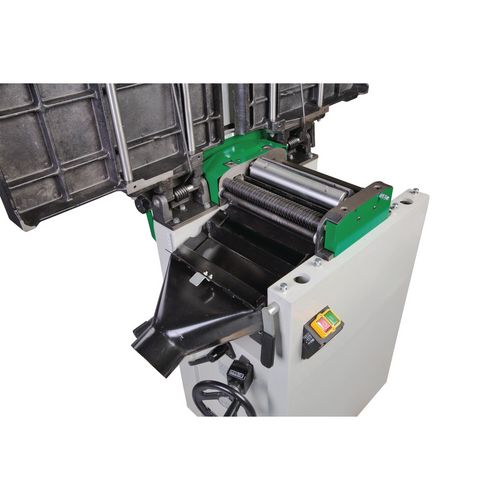

Fixed suction hood
- Thanks to the fixed suction hood, it is no longer necessary to change the suction hose during the conversion
- time-saving
The table height adjustment is easy and convenient via a handwheel
| Dimensions and weights | |
|---|---|
| Length approx. | 1120 mm |
| Width/depth approx. | 630 mm |
| Height approx. | 960 mm |
| Weight approx. | 170 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 1.7 kW |
| Absorbed power drive motor | 2.3 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter thickness | 100 mm |
| Extraction port diameter joints | 100 mm |
| Feed | |
|---|---|
| Speed | 5.5 m/min |
| Jointing | |
|---|---|
| Max. cutting depth | 3 mm |
| Planing stop pivoting range | 90 – 45 ° |

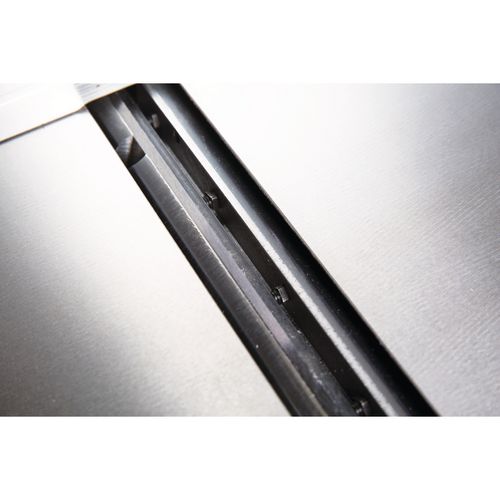

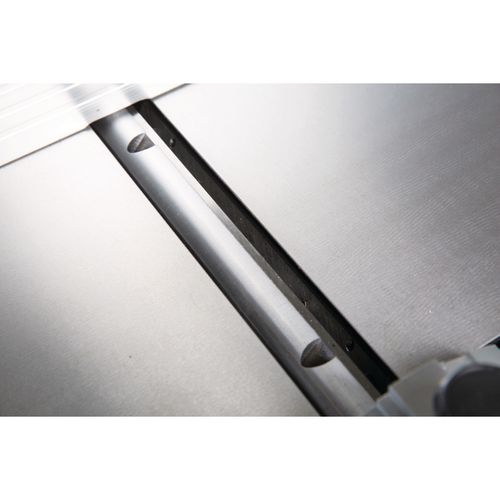

| Planing knife shaft | |
|---|---|
| Type | Strip planer blade shaft |
| Number of planing blades | 3 |
| Speed | 5200 min¯¹ |
| Max. planing width | 258 mm |
| Thickness | |
|---|---|
| Working height min. | 5 mm |
| Working height max. | 225 mm |
| Max. cutting depth | 3 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
