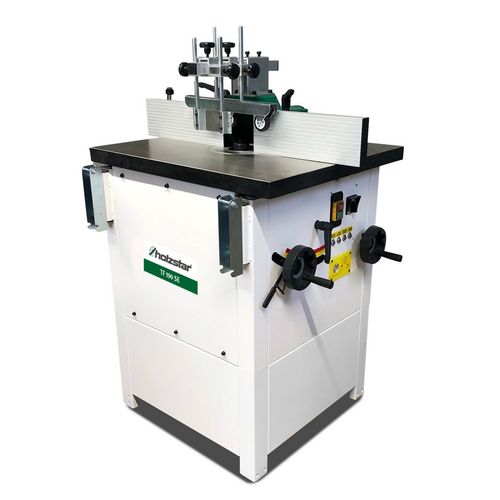

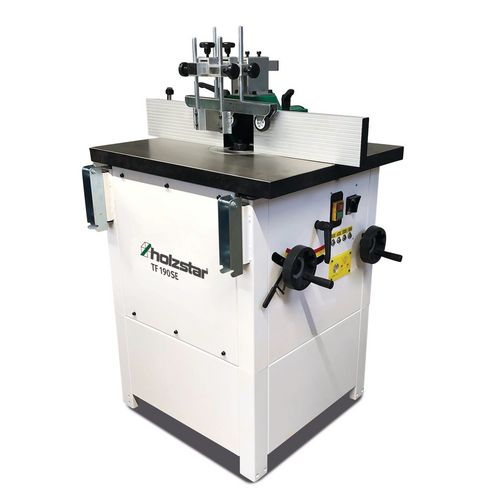

Table router
TF 190 SE (400 V)
With swivelling milling spindle
2.049,00
EUR excl. Tax / pc(s).
2.458,80 EUR incl. 20% Tax / pc(s).
2.458,80 EUR incl. 20% Tax / pc(s).
Promotional price *
1.599,00 EUR excl. Tax / pc(s).1.918,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5901933
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Milling stop with finely adjustable aluminum stops
- Quick and easy changing of the speed using multi-V-belts
- Display of the speed setting by LED lights
- Large work surface due to the solid and torsion-free gray cast iron table
- Large milling unit made of gray cast iron, swiveling from +5 to -30°
- Selector switch for clockwise/counterclockwise rotation of the milling spindle

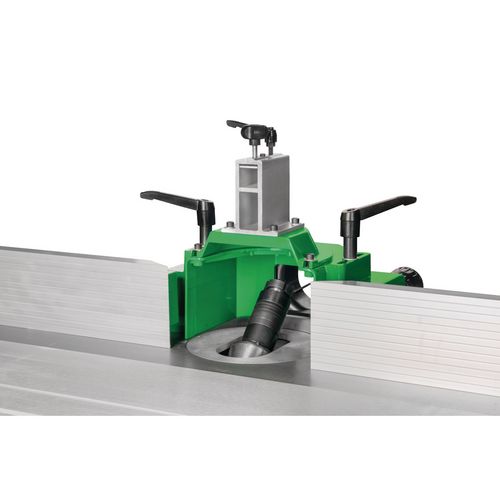

- Hold-down device for precise workpiece guidance
- Sliding table and chassis device available as accessory
- Quick and easy speed change by means of multi V-belt
- Display of the set speed via LED lights
- Large working surface thanks to solid and torsion-free cast iron table
- Large dimensioned milling unit made of grey cast iron, swivelling from +5 to -30°.
- Hold-down device for precise workpiece guidance
- Sliding table and travelling device available as accessories
| Dimensions and weights | |
|---|---|
| Length approx. | 750 mm |
| Width/depth approx. | 660 mm |
| Height approx. | 1200 mm |
| Weight approx. | 174 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 2,2 kW |
| Absorbed power drive motor | 2,8 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 100 mm |
| Milling cutter diameter max. | |
|---|---|
| Max. tool diamter lowerable | 200 mm |
| Milling spindle | |
|---|---|
| Angle | -5 to +30 ° |
| Usable length | 100 mm |
| Stroke | 100 mm |
| Max. protrusion over the table | 100 mm |
| Speed(s) | 1800/3000/6000/9000 min¯¹ |
| Speed regulation | Strap |
| Speed display | LED on the machine front |
| Arbor diameter | 30 mm |
| Work table | |
|---|---|
| Length | 710 mm |
| Width | 640 mm |
| Table height | 900 mm |
| Sliding carriage length | 1200 mm |
| Sliding carriage width | 700 mm |
| Sliding carriage height | 500 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Height adjustment of the spindle | manual |
| Tilt adjustment of the spindle | manual |
