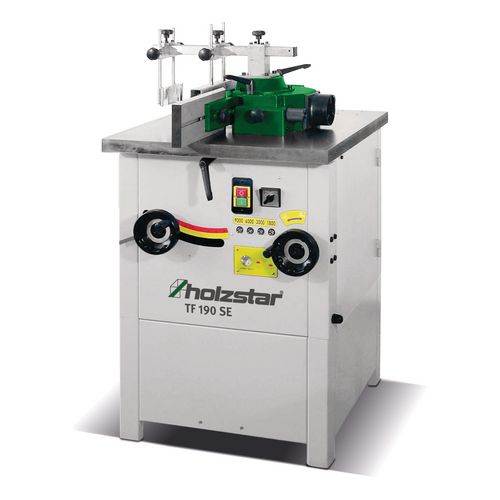

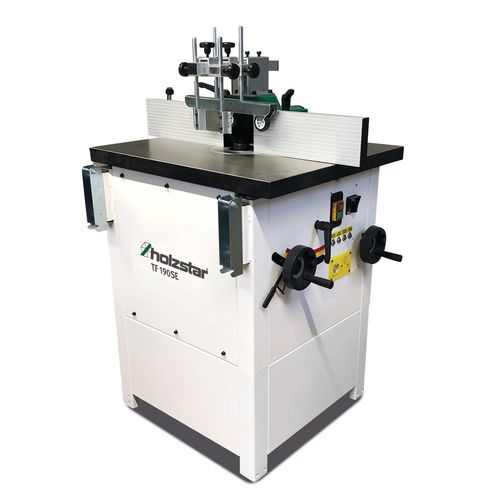

    • Productimage for TF 190 SE (230 V)
    • Productimage for TF 190 SE (230 V)
    • Productimage for TF 190 SE (230 V)
    • Productimage for TF 190 SE (230 V)
    Brandimage to Product TF 190 SE (230 V)

    Table router

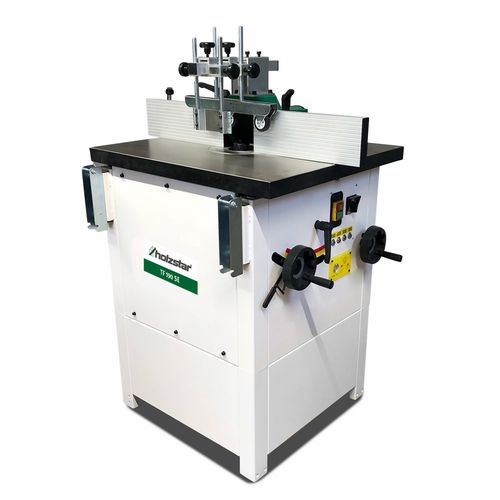

    TF 190 SE (230 V)

    With swivelling milling spindle

    2.049,00 EUR excl. Tax / pc(s).
    2.458,80 EUR incl. 20% Tax / pc(s).
    Promotional price *
    1.599,00 EUR excl. Tax / pc(s).
    1.918,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Art.-No. 5901931

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

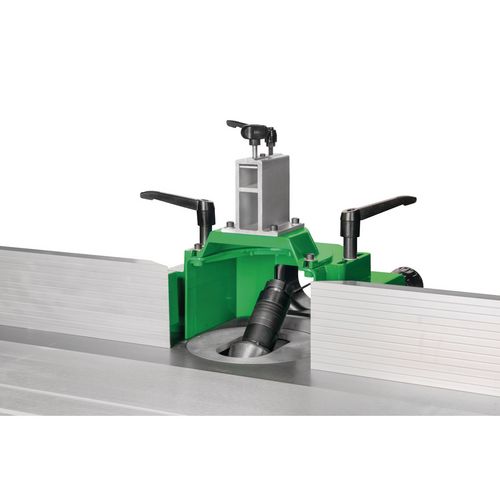

    • Milling stop with finely adjustable aluminum stops
    • Quick and easy changing of the speed using multi-V-belts
    • Display of the speed setting by LED lights
    • Large work surface due to the solid and torsion-free gray cast iron table
    • Large milling unit made of gray cast iron, swiveling from +5 to -30°
    • Selector switch for clockwise/counterclockwise rotation of the milling spindle
    • Hold-down device for precise workpiece guidance
    • Sliding table and chassis device available as accessory



    • Quick and easy speed change by means of multi V-belt
    • Display of the set speed via LED lights
    • Large working surface thanks to solid and torsion-free cast iron table
    • Large dimensioned milling unit made of grey cast iron, swivelling from +5 to -30°.
    • Hold-down device for precise workpiece guidance
    • Sliding table and travelling device available as accessories



    Dimensions and weights
    Length approx.750 mm
    Width/depth approx.660 mm
    Height approx.1200 mm
    Weight approx.174 kg
    Electrical Data
    Drive motor output2,2 kW
    Absorbed power drive motor2,8 kW
    Supply voltage230 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter100 mm
    Milling cutter diameter max.
    Max. tool diamter lowerable 200 mm
    Milling spindle
    Angle-5 to +30 °
    Usable length100 mm
    Stroke100 mm
    Max. protrusion over the table100 mm
    Speed(s)1800/3000/6000/9000 min¯¹
    Speed regulationStrap
    Speed displayLED on the machine front
    Arbor diameter30 mm
    Work table
    Length710 mm
    Width640 mm
    Table height 900 mm
    Sliding carriage length1200 mm
    Sliding carriage width700 mm
    Sliding carriage height 500 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    Height adjustment of the spindlemanual
    Tilt adjustment of the spindlemanual
