    Table router

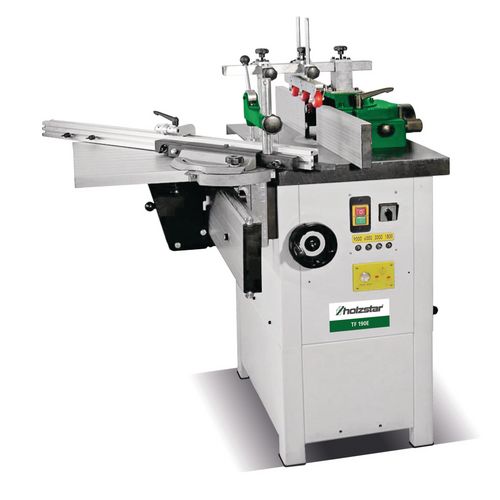

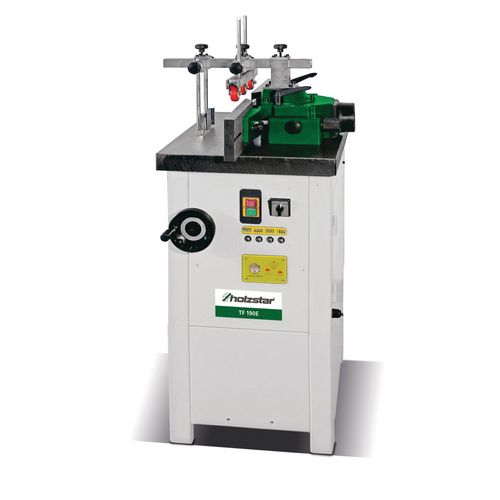

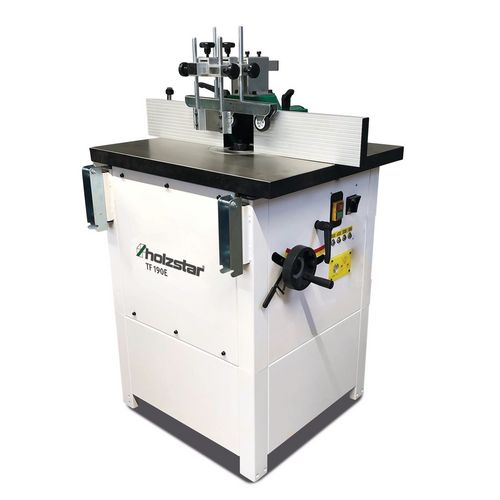

    TF 190 E (400 V)

    With rigid milling spindle

    1.799,00 EUR excl. Tax / pc(s).
    2.158,80 EUR incl. 20% Tax / pc(s).
    Promotional price *
    1.399,00 EUR excl. Tax / pc(s).
    1.678,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5901923

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Milling stop with finely adjustable aluminum stops
    • Quick and easy changing of the speed using multiple V-belts
    • Speed setting displayed by LED lights
    • Large work surface thanks to the torsion-free grey cast iron table
    • Selector switch for clockwise/counterclockwise rotation of the milling spindle
    • Milling unit made of grey cast iron
    • Hold-down unit for precise workpiece guidance
    • Sliding table and chassis available as an accessory



    • Quick and easy changing of the speed using multiple V-belts
    • Speed setting displayed by LED lights
    • Large work surface thanks to the torsion-free grey cast iron table
    • Hold-down unit for precise workpiece guidance
    • Sliding table and chassis available as an accessory



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Length approx.730 mm
    Width/depth approx.500 mm
    Height approx.1200 mm
    Weight approx.140 kg
    Electrical Data
    Drive motor output2,2 kW
    Absorbed power drive motor2,8 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Extraction port
    Extraction port diameter100 mm
    Milling cutter diameter max.
    Max. tool diamter lowerable 200 mm
    Milling spindle
    Usable length100 mm
    Stroke100 mm
    Max. protrusion over the table100 mm
    Speed(s)1800/3000/6000/9000 min¯¹
    Speed regulationStrap
    Speed displayLED on the machine front
    Arbor diameter30 mm
    Work table
    Length690 mm
    Width480 mm
    Table height 900 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1







    Height adjustment of the spindlemanual
