    Brandimage to Product

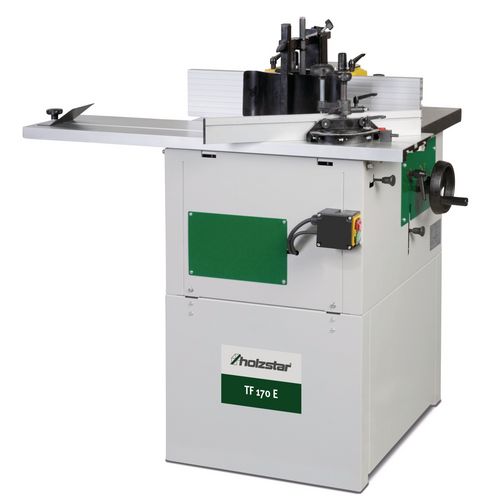

    Table router

    TF

    With aluminium slide and rigid milling spindle

    From 1.149,00 EUR excl. Tax / pc(s).
    From 1.378,80 EUR incl. 20% Tax / pc(s).
    Promotional price *
    From 889,00 EUR excl. Tax / pc(s).
    From 1.066,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Variations

    Electrical DataGeneralMilling cutter diameter max. Price Promotional price *
    TitleArt.-No.Supply voltage (V)VPE Explanation of max. tool diamter EUR excl. TaxEUR incl. 20% TaxEUR excl. TaxEUR incl. 20% Tax
    TF 170 E (230 V)590191723011.149,001.378,80889,001.066,80
    TF 170 E (400 V)59019184001not lowerable1.149,001.378,80889,001.066,80
    Select Attributes
    Electrical Data
    General
    Milling cutter diameter max.
    Price
    Promotional price

    Productdetails

    • Smooth-action sliding carriage for precise workpiece guidance

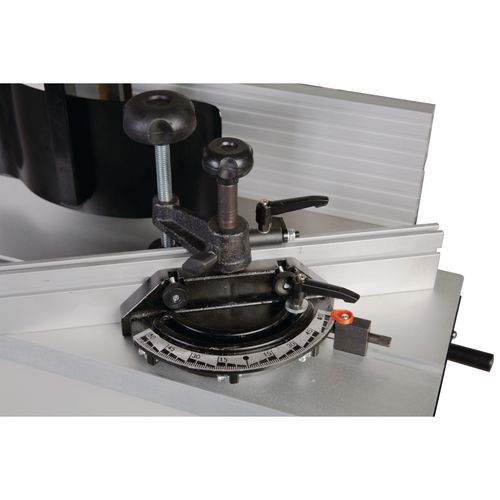

    • Milling stop with finely adjustable aluminium stops
    • Quick and easy change of the speed by means of splined belts
    • Large work surface with torsion-free cast-iron table
    • Milling unit made of grey cast iron
    • Downholder for precise workpiece guidance



    Dimensions and weights
    Max. length1000 mm
    Max. width/depth950 mm
    Max. height1170 mm
    Length approx.1000 mm
    Width/depth approx.900 mm
    Height approx.1140 mm
    Weight approx.96 kg
    Electrical Data
    Drive motor output1,1 kW
    Absorbed power drive motor1,5 kW
    Total rated value1,5 kVA
    Mains frequency50 Hz
    Milling cutter diameter max.
    Max. tool diamter 160 mm
    Milling spindle
    Stroke105 mm
    Max. protrusion over the table105 mm
    Speed(s)1400/4000/6000/9000 min¯¹
    Arbor diameter30 mm
    Work table
    Length600 mm
    Width400 mm
    Table height 850 mm
    Sliding carriage length1000 mm
    Sliding carriage width218 mm
    Sliding carriage height 850 mm
    Unit: pc(s).
