- Solid gray cast iron bench bed for smooth running
- ASR run-off protection groove for maximum safety when fastening clamping devices
- Comfortable working thanks to infinitely variable speed adjustment via frequency converter
- Robust tailstock and 102 mm quill travel

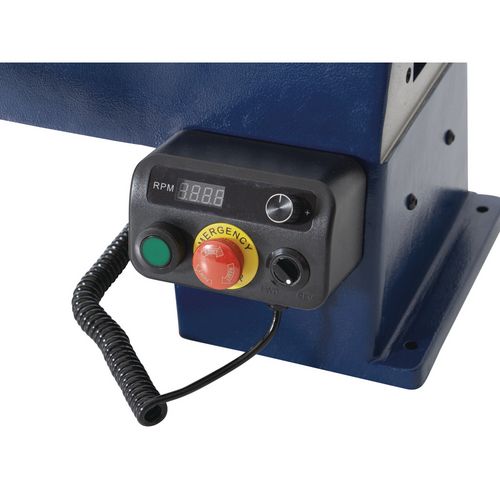

- Flexible working thanks to mobile control box with magnetic holder, can be positioned as required
- Digital speed display and right/left rotation changeover via the control box
- Practical 24-step spindle dividing device for precise positioning of e.g. drill holes or milling operations
- Can also be used as a stand-alone machine thanks to optional base frame
- ASR run-off protection groove for maximum safety when fastening clamping devices
- Comfortable working thanks to infinitely variable speed adjustment via frequency converter
- Robust tailstock and 102 mm quill travel
- Digital speed display and right/left rotation changeover via the control box
- Practical 24-step spindle part adjustment for precise positioning of e.g. drill holes or milled holes
Max. turning diameter | 355 mm |
Speeds | 150 – 650, 400 – 1550, 850 – 3850 min-¹ |
Speed stages | 3 |
Speed control | Electronically variable |
Tailstock thread | Trapezoid |
Tailstock stroke | 102 mm |
Bearing distance | 96.5 mm |
Spindle cone | MT2 |
Partial installation | 24 Steps |
VPE | 1 |
Dimensions and weights |
---|
Length approx. | 1100 mm |
Width/depth approx. | 470 mm |
Height approx. | 470 mm |
Weight approx. | 62 kg |
Electrical Data |
---|
Supply voltage | 230 V |
Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
- Tool rest 200 mm
- Face plate 80 mm
- Four-point driver
- center punch
- long ejector rod
- Short ejector rod
- Clamping wrench 46 mm
- Clamping wrench 38 mm
- Allen key (2.5mm, 3mm, 4mm, 5mm)
Right-left run | ✔ |
Frequency inverter | ✔ |
Mobile control panel | ✔ |
