- Solid cast iron bench bed for extremely smooth running
- ASR run-off protection groove for maximum safety when fastening clamping devices
- Comfortable working thanks to infinitely variable speed adjustment via frequency converter

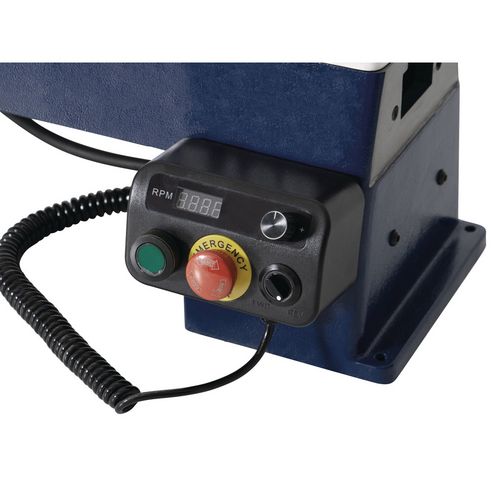

- Flexible working thanks to mobile control box with magnetic holder, can be positioned as required
- Digital speed display and changeover between clockwise and counter-clockwise rotation via the control box

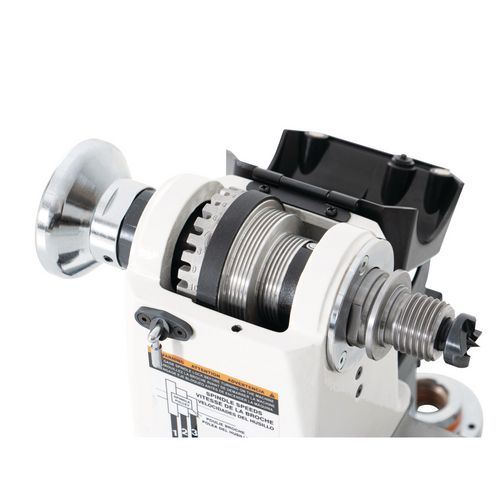

- Practical 24-step spindle part adjustment for precise positioning of e.g. drill holes or milling operations
- Can also be used as a stand-alone machine thanks to optional base frame
- ASR run-off protection groove for maximum safety when fastening clamping devices
- Comfortable working thanks to infinitely variable speed adjustment via frequency converter

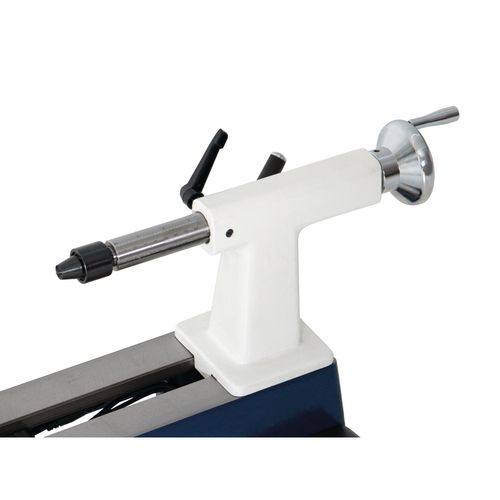

- Robust tailstock with trapezoidal thread and 115 mm quill travel
- Digital speed display and changeover between clockwise and counter-clockwise rotation via the control box
- Practical 24-step spindle part adjustment for precise positioning of e.g. drill holes or milled holes
Max. turning diameter | 305 mm |
Speeds | 250 – 850, 430 – 1450, 950 – 3200 min-¹ |
Speed stages | 3 |
Speed control | Electronically variable |
Tailstock thread | metric |
Tailstock stroke | 90 mm |
Bearing distance | 95.5 mm |
Spindle cone | MT2 |
Partial installation | 24 Steps |
VPE | 1 |
Dimensions and weights |
---|
Length approx. | 950 mm |
Width/depth approx. | 330 mm |
Height approx. | 410 mm |
Weight approx. | 43 kg |
Electrical Data |
---|
Supply voltage | 230 V |
Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1

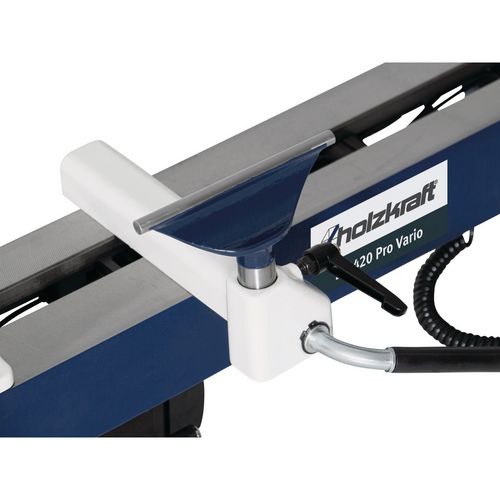

- Tool rest 200 mm
- Face plate 80 mm
- Four-point driver
- center punch
- long ejector rod
- Short ejector rod
- Clamping wrench 46 mm
- Clamping wrench 38 mm
- Allen key (2.5mm, 3mm, 4mm, 5mm)
Right-left run | ✔ |
Frequency inverter | ✔ |
Mobile control panel | ✔ |
