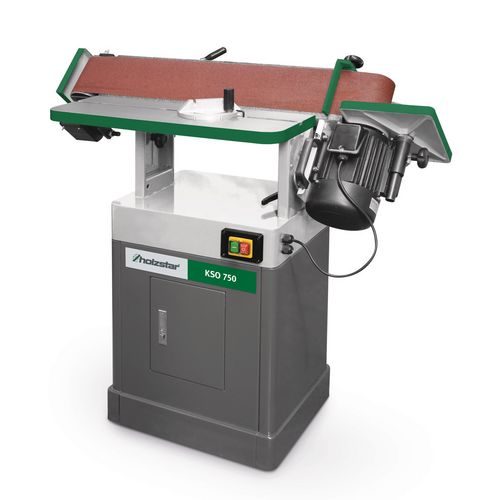

Edge sanding machine
KSO 750 (400V)
With swiveling sanding unit and oscillating sanding belt
1.089,00
EUR excl. Tax / pc(s).
1.306,80 EUR incl. 20% Tax / pc(s).
1.306,80 EUR incl. 20% Tax / pc(s).
Promotional price *
849,00 EUR excl. Tax / pc(s).1.018,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5900750
Are you interested in this product?
Put a request
Find Trader
Productdetails
- With oscillating sanding belt for a good removal rate, a clean sanding pattern and a longer service life of the sanding belt
- With height-adjustable sanding table
- Standard with -45 ° to + 45 ° infinitely adjustable miter and workpiece stop
- Infinitely tiltable sanding unit (0 ° -90 °) for vertical and horizontal sanding
- Table height adjustment by handwheel
- Robust gray cast iron work table with T-slots, stable machine stand when working
- With height-adjustable additional table for contour sanding
- Quick and easy sanding belt change via quick clamping system
- Spring-loaded clamping device for a uniform belt tension
- Sanding sole with graphite coating as standard
- Extraction nozzle Ø 100 mm
- With lockable storage option in the standard substructure
Room amenities:
- Due to the steplessly adjustable sanding unit, the edge sanding machine is suitable for a wide variety of sanding operations, such as sanding. B. vertical and horizontal sanding used
| Dimensions and weights | |
|---|---|
| Length approx. | 1300 mm |
| Width/depth approx. | 750 mm |
| Height approx. | 1200 mm |
| Weight approx. | 120 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 100 mm |
| Sanding machine | |
|---|---|
| Sanding belt length | 2270 mm |
| Sanding belt width | 150 mm |
| Circumferential belt speed(s) | 16.3 m/s |
| Sanding surface length | 820 mm |
| Sanding surface width | 170 mm |
| Work top(s) | |
|---|---|
| Work table height adjustment | 80 mm |
| Longitudinal table length | 750 mm |
| Longitudinal table width | 250 mm |
| Longitudinal table height adjustment | 80 mm |
| Min. cross table height | 980 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Miter gauge
- Workpiece stop 499 x 178 x 69 mm
- Sanding belt, grit K60
