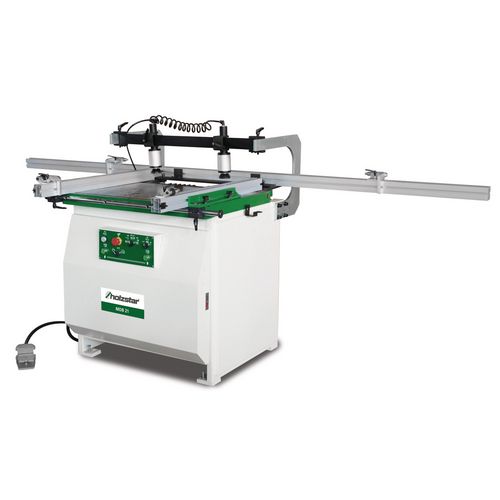

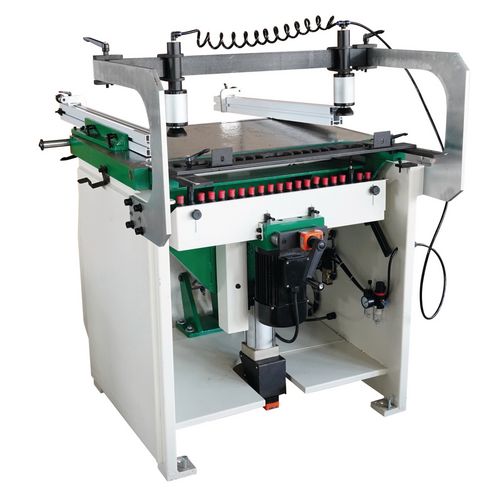

    Multi dowel drilling machine

    MDB 21

    For precisely fitting holes in bodies of furniture, frames or doors

    3.729,00 EUR excl. Tax / pc(s).
    4.474,80 EUR incl. 20% Tax / pc(s).
    Promotional price *
    3.399,00 EUR excl. Tax / pc(s).
    4.078,80 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.
    * Promotional price valid until 28.02.2025 in Germany.

    Sicherheits- und Warnhinweise

    Safety and warning notices

    Art.-No. 5943021

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

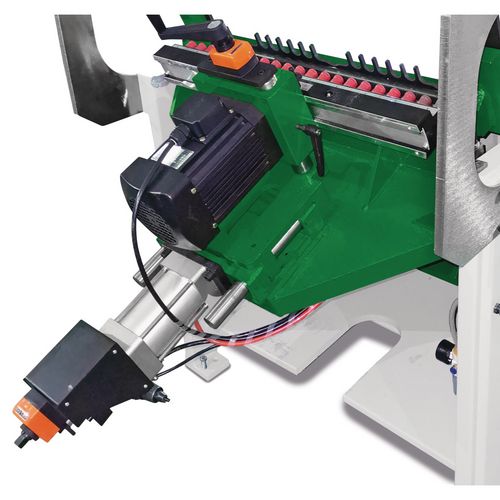

    • Drilling unit with 21 spindles pneumatically swivelling from 0 to 90 degrees
    • Adjustable drill feed
    • Two adjustable pneumatic workpiece holders for flexible workpiece clamping
    • Operation of the main functions clamping, drilling and releasing via foot pedal
    • Drilling depth and drilling height display via counters
    • Sturdy side stop profiles on the right and left with scale and one flip stop each
    • 3 metre rear stop with scale and 2 flip stops

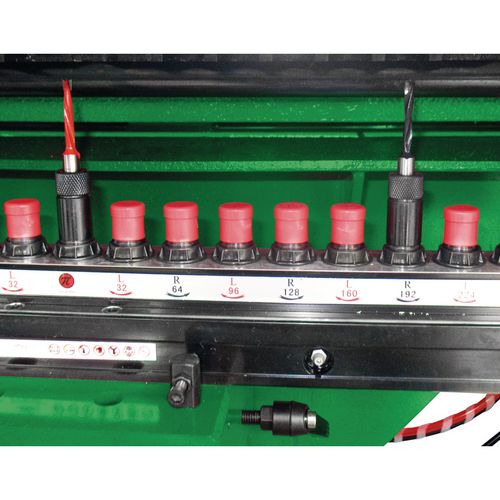

    • Six quick-change drill chucks for 10 mm shank included



    • Drilling unit with 21 spindles pneumatically swivelling from 0 to 90 degrees
    • Two adjustable pneumatic workpiece holders for flexible workpiece clamping
    • Operation of the main functions clamping, drilling and releasing via foot pedal
    • Drilling depth and drilling height display via counters
    • Six quick-change drill chucks included



    Data sheets
    Sicherheits- und Warnhinweise
    Safety and warning notices
    Dimensions and weights
    Work table length890 mm
    Work table width625 mm
    Length approx.3000 mm
    Width/depth approx.1300 mm
    Height approx.1300 mm
    Weight approx.360 kg
    Electrical Data
    Drive motor input1,5 kW
    Drive motor output1,1 kW
    Nominal operating mode drive motorS1
    Supply voltage400 V
    Mains frequency50 Hz
    Pneumatic connection
    Working pressure6 – 8 bar
    Spindle
    Max. drilling width640 mm
    Drilling depth max. at 90°50 mm
    Number of spindles21
    Distance between spindles32 mm
    Spindle distance first to last640 mm
    Spindle speed(s)2800 min¯¹
    Swivel of drill unit0 – 90 °
    Max. height of workpiece70 mm
    VPE1
    Unit: pc(s).
    Packaging unit: 1

    • Six quick-action chucks for shank diameter 10 mm
    • Two rip fences with one flip stop each
    • 3m aluminium stop with 2 flip stops
