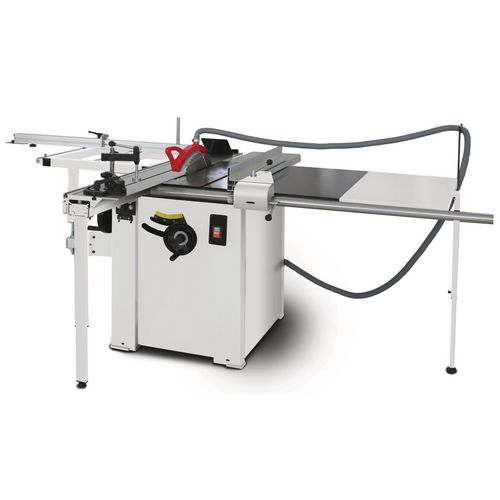

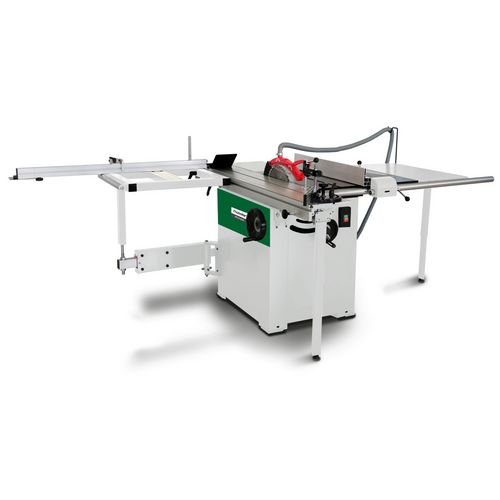

Sliding table saw
FKS 315-2000 E
Robust and precise, with swivel saw blade and pre-cutting device
3.339,00
EUR excl. Tax / pc(s).
4.006,80 EUR incl. 20% Tax / pc(s).
4.006,80 EUR incl. 20% Tax / pc(s).
Promotional price *
2.599,00 EUR excl. Tax / pc(s).3.118,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5900317
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Standard with Vorritzeinrichung
- From -45 ° to + 45 ° swiveling, extendable telescopic stop with finely adjustable stop flap
- Robust and precise design with sliding carriage
- The gray cast iron work table enables low-vibration work
- Saw blade height adjustment via a handwheel
- Saw blade pivoting from 90 to 45 ° adjustable via handwheel with scale
- Stable sawing unit guarantees vibration-free and precise work
- Solid boom table with roller and telescopic arm for maximum stability
- Miter fence and hold-down over the entire length of the carriage slidable
- Large aluminum rip fence on round rod guide with fine adjustment
- Strong drive motor for constant cutting speed, even at 100 mm cutting height
- Large dimensioned worktable and standard table extension for cutting widths up to 1220 mm
| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 1220 mm |
| Max. cross cut width left from saw blade | 2430 mm |
| Trimming length | 2000 mm |
| Saw blade angle | 90 – 45 ° |
| Max. cutting height 90° | 100 mm |
| Max. cutting height 45° | 80 mm |
| (Main) saw blade diameter | 315 mm |
| (Main) saw blade speed | 4500 min¯¹ |
| Dimensions and weights | |
|---|---|
| Length approx. | 4330 mm |
| Width/depth approx. | 4155 mm |
| Height approx. | 1150 mm |
| Weight approx. | 295 kg |
| Electrical Data | |
|---|---|
| Absorbed power drive motor | 3.7 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 98 mm |
| Saw blade protection extraction port diameter | 40 mm |
| Noise emission | |
|---|---|
| Sound pressure level | 85 dB(A) |
| Pre-scoring unit | |
|---|---|
| Diameter saw blade | 90 mm |
| Saw blade speed | 8500 min¯¹ |
| Sliding carriage and table | |
|---|---|
| Sliding carriage length | 2000 mm |
| Sliding carriage width | 270 mm |
| Table length | 1260 mm |
| Table width | 800 mm |
| Work height | 870 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Saw blade 315 x 30 x 3 mm 24 teeth
- Scoring saw blade 90 x 20 x 3 mm 12 teeth
| Claming frame | with angle-adjustable aluminium telescopic stop with two professional folding stops |
| Material roll on claming frame | ✔ |
| Saw rip fence | with round rod guide and fine adjustment |
| Stops | one folding stop |
| Clamp sleigh | ✔ |
| Eccentric clamp | ✔ |
| Table broadening | ✔ |
| Table lengthening | ✔ |
| Saw blade cover | ✔ |
| Height adjustment and tilting of the saw unit | manual |
