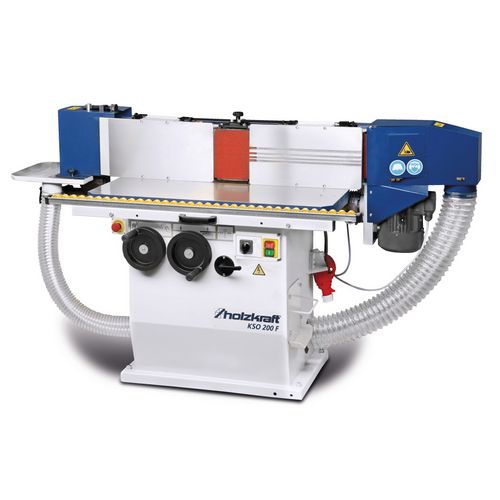

Edge sanding machine
KSO 200 F
With swiveling sanding unit and oscillating sanding belt. F version for veneer sanding
4.549,00
EUR excl. Tax / pc(s).
5.458,80 EUR incl. 20% Tax / pc(s).
5.458,80 EUR incl. 20% Tax / pc(s).
Promotional price *
3.899,00 EUR excl. Tax / pc(s).4.678,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5363001
Are you interested in this product?
Put a request
Find Trader
Productdetails
- sanding unit can be swiveled up to 45 ° via lever
- The machine stand made of welded steel guarantees high torsional rigidity and vibration-free working.
- Oscillating sanding belt with separate gear motor for better sanding results
- Oscillation optionally switchable
- sanding sole with graphite coating for a longer service life of the sanding belt
- Height-adjustable sanding table for utilization of the entire sanding belt width
- Height-adjustable additional table with suction for sanding radii
- The spring-loaded belt tension independently compensates for belt length differences.
- With double suction

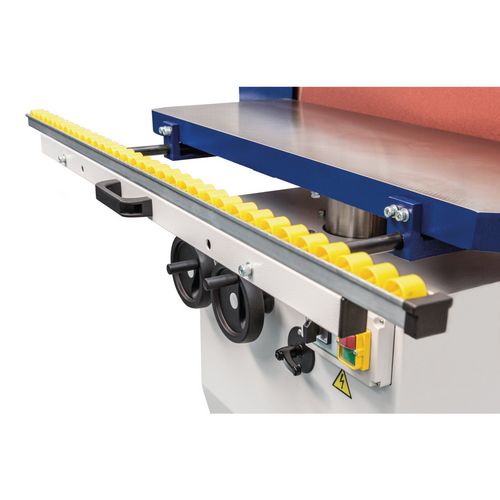

- Extendable roller table extension
- With rubberized sanding roller
- Veneer edge sanding device with contact shoe with fine adjustment, unloading rollers and stop rulers
- With grooved feed ruler for veneer projections
- Quick change from veneer edging to solid wood sanding possible
| Dimensions and weights | |
|---|---|
| Length approx. | 1900 mm |
| Width/depth approx. | 900 mm |
| Height approx. | 1350 mm |
| Weight approx. | 290 kg |
| Drive output | |
|---|---|
| Oscillation motor | 0.25 kW |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 140 mm |
| Sanding machine | |
|---|---|
| Sanding belt length | 3000 mm |
| Sanding belt width | 200 mm |
| Circumferential belt speed(s) | 20 m/s |
| Sanding surface length | 1050 mm |
| Sanding surface width | 200 mm |
| Oscillation stroke | 20 mm |
| Work top(s) | |
|---|---|
| Work table length | 960 mm |
| Work table width | 350 mm |
| Work table height adjustment | 230 mm |
| Longitudinal table height adjustment | 230 mm |
| Min. cross table height | 720 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- table extension
- rubber rollers
- wooden crate
