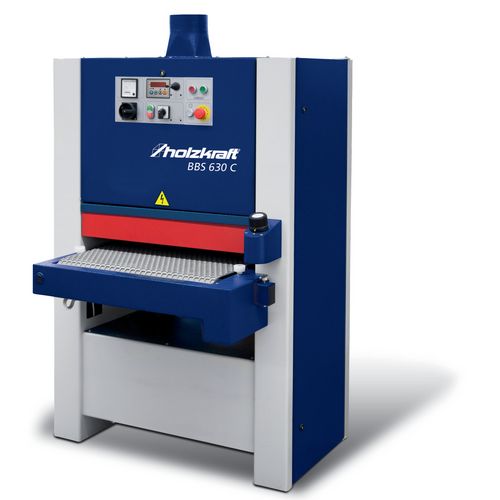

BBS 630 C

Compact machine with optimum price-performance ratio

20.199,00 EUR excl. Tax / pc(s).
24.238,80 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheitsdatenblatt 2

Safetydatasheet 2

Art.-No. 5343065

Are you interested in this product?

Put a request

Find Trader

Productdetails

For processing of small parts, especially solid wood
Simple and safe operation

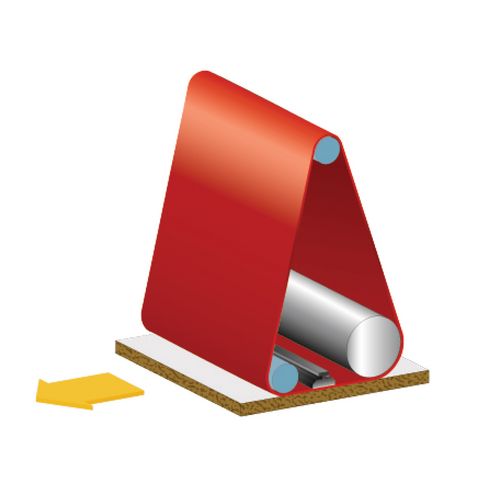

Combination sanding unit with sanding shoe for fine sanding of solid wood

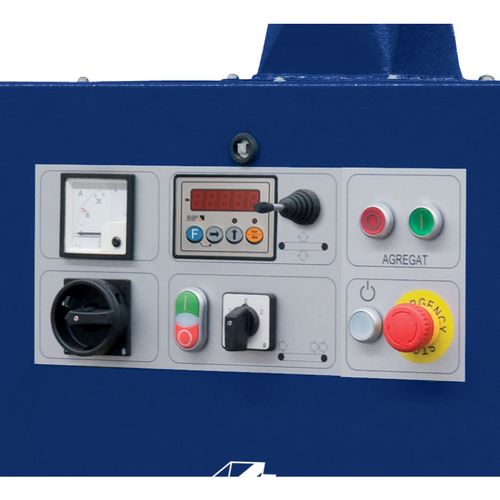

Control panel on the front
Standard with ribbed steel roller Ø 120 mm for calibrating and hard sanding shoe with graphite coating on exchangeable insert
Motorized height adjustment of the work table
Electronically controlled sanding belt oscillation
Automatic star / delta starting of the motor
Digital display of the table position
Ammeter for displaying the current consumption of the sanding unit
Two feed belt speeds
Electromagnetic brake

Data sheets
Sicherheitsdatenblatt 2
Safetydatasheet 2

Dimensions and weights
Length approx.	1200 mm
Width/depth approx.	1020 mm
Height approx.	1590 mm
Weight approx.	582 kg

Electrical Data
Height adjustment motor power	0.18 kW
Feed motor output	0.4/0.6 kW
Drive motor output	5 kW
Supply voltage	400 V
Mains frequency	50 Hz

Extraction port
Extraction port diameter	150 mm
Extraction performance	2500 m³/h

Feed unit
Feed speed	4.5 / 9 m/min

Pneumatic connection
Operating pressure	5.5 bar
Compressed-air consumption	20 l/min
Explanation about compressed-air consumption	without fan

Sanding machine
Sanding belt length	1600 mm
Sanding belt width	650 mm
Circumferential belt speed(s)	18,5 m/s
Max. sanding width	630 mm

Workpiece
Min. height	3 mm
Max. height	160 mm

VPE

Unit: pc(s).
Packaging unit: 1
