Wide belt sander
BBS 430 C
Compact machine with optimum price-performance ratio
16.999,00
EUR excl. Tax / pc(s).
20.398,80
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5343060
Are you interested in this product?
Put a request
Find Trader
Productdetails
- For processing of small parts, especially solid wood
- Simple and safe operation

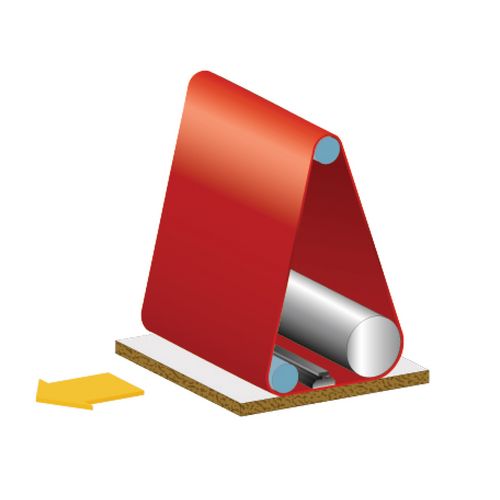

- Combination sanding unit with sanding shoe for fine sanding of solid wood

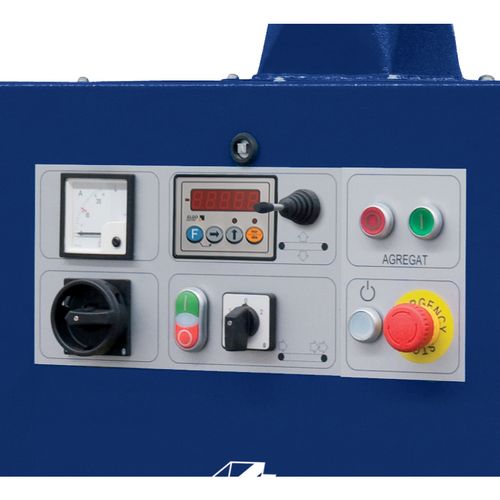

- Control panel on the front
- Standard with ribbed steel roller Ø 120 mm for calibrating and hard sanding shoe with graphite coating on exchangeable insert
- Motorized height adjustment of the work table
- Electronically controlled sanding belt oscillation
- Automatic star / delta starting of the motor
- Digital display of the table position
- Ammeter for displaying the current consumption of the sanding unit
- Two feed belt speeds
- Electromagnetic brake
| Dimensions and weights | |
|---|---|
| Length approx. | 1200 mm |
| Width/depth approx. | 850 mm |
| Height approx. | 1590 mm |
| Weight approx. | 500 kg |
| Electrical Data | |
|---|---|
| Height adjustment motor power | 0.18 kW |
| Feed motor output | 0.4/0.6 kW |
| Drive motor output | 4 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 150 mm |
| Extraction performance | 1600 m³/h |
| Feed unit | |
|---|---|
| Feed speed | 4.5 / 9 m/min |
| Pneumatic connection | |
|---|---|
| Operating pressure | 5.5 bar |
| Compressed-air consumption | 20 l/min |
| Explanation about compressed-air consumption | without fan |
| Sanding machine | |
|---|---|
| Sanding belt length | 1600 mm |
| Sanding belt width | 450 mm |
| Circumferential belt speed(s) | 18,5 m/s |
| Max. sanding width | 430 mm |
| Workpiece | |
|---|---|
| Min. height | 3 mm |
| Max. height | 160 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
