Feeder
VSA 38 L
Quality from the world's largest manufacturer
1.159,00
EUR excl. Tax / pc(s).
1.390,80
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5114500
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Uniform feed rate without loss of power
- Metal gears with hardened gears
- Right and left rotation
- Powerful motors
- Durable PU feed rollers
- Stand as standard with extended extension arm for all feeders
- Individually swiveling and adjustable for horizontal and vertical use
- With counter
Room amenities

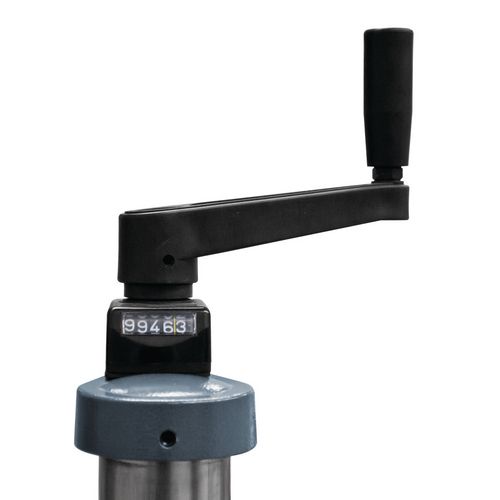

- All feed units as standard with counter for height adjustment (except for VSA 32 and VSA 308)

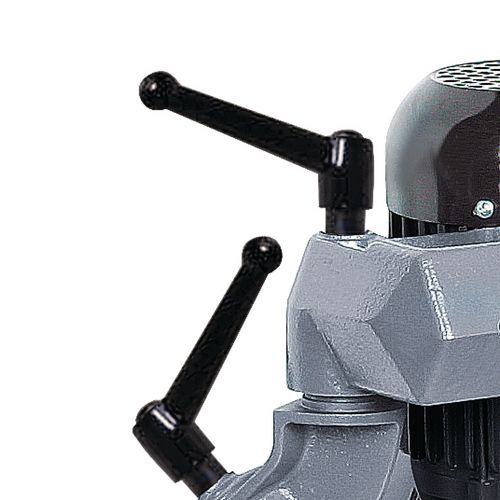

- Improved quick-release lever

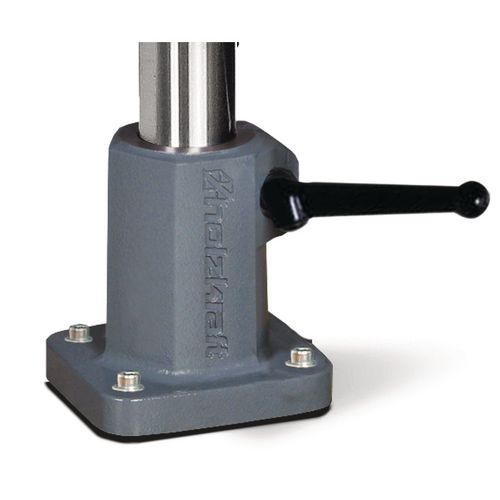

- With particularly robust and solid tripod clamping for maximum stability in daily use (VSA 38L / 48L)

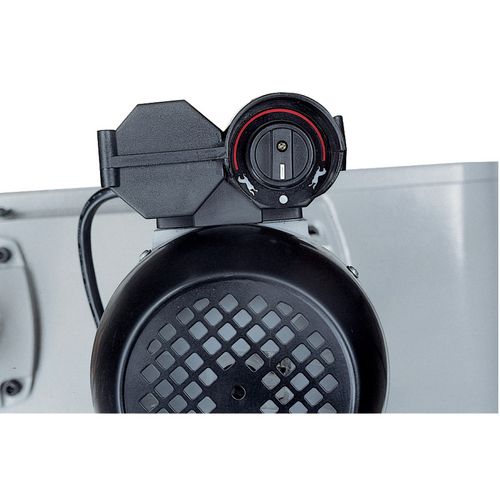

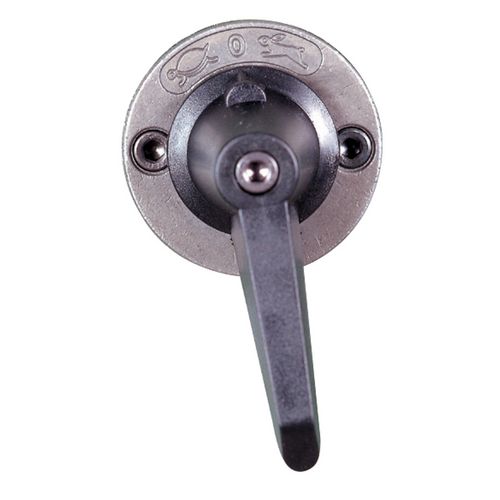

- Standard right-left rotation with two speeds
- Two speeds via two-step transmission (VSA 38EL / 38L / 48EL / 48L)

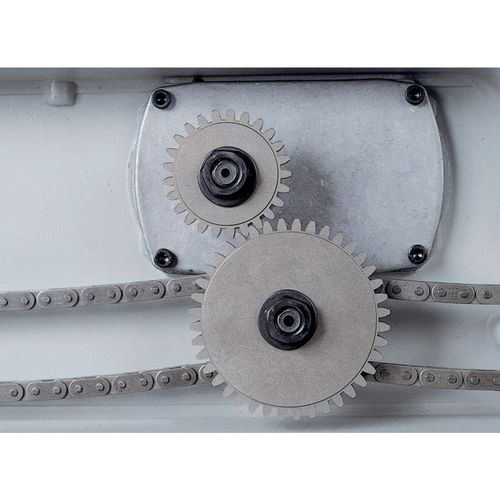

- Four other speeds through change gearbox
- Pivot means
- Individual adjustment options in horizontal and vertical position for optimum feed
Special features
- Three feed rollers
- Eight speeds
- 750 W / 400V
- 2-speed gearbox
- metal housing
| Number of feed rollers | 3 |
| Feed speed | 2 30 m/min |
| Gears | 2 / 4 / 5.5 / 6.7 / 11 / 12 / 15 / 30 m/min |
| Max. extension | 1050 mm |
| Roller diameter | 120 mm |
| Roller width | 60 mm |
| Spring stroke of rollers | 25 mm |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Weight approx. | 65 kg |
| Electrical Data | |
|---|---|
| Drive motor output | 0.75 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
