    Feeder

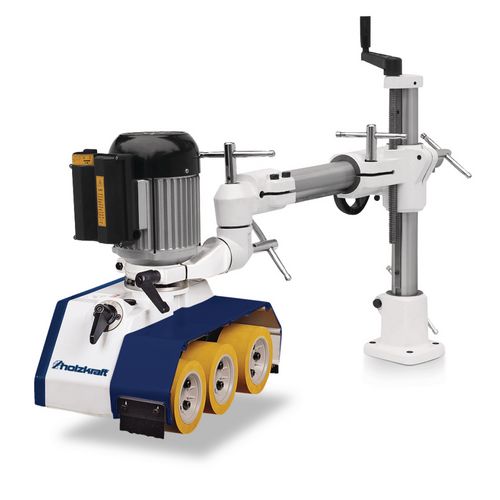

    VSA 38 EL

    Quality from the world's largest manufacturer

    1.045,00 EUR excl. Tax / pc(s).
    1.254,00 EUR incl. 20% Tax / pc(s).

    Prices are recommended retail prices. Retailer prices may vary.

    Sicherheitsdatenblatt 2

    Safetydatasheet 2

    Art.-No. 5114501

    Are you interested in this product?
  • Put a request
  • Find Trader

    • Productdetails

    • Uniform feed rate without loss of power
    • Metal gears with hardened gears
    • Right and left rotation
    • Powerful motors
    • Durable PU feed rollers
    • Stand as standard with extended extension arm for all feeders
    • Individually swiveling and adjustable for horizontal and vertical use
    • With counter



    Room amenities

    • All feed units as standard with counter for height adjustment (except for VSA 32 and VSA 308)
    • Improved quick-release lever

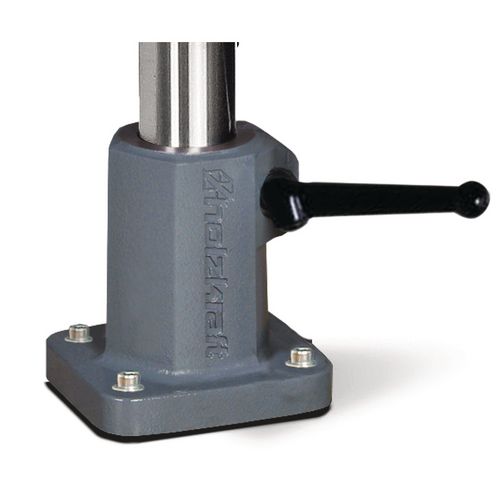

    • With particularly robust and solid tripod clamping for maximum stability in daily use (VSA 38L / 48L)
    • Standard right-left rotation with two speeds
    • Two speeds via two-step transmission (VSA 38EL / 38L / 48EL / 48L)
    • Four other speeds through change gearbox
    • Pivot means
    • Individual adjustment options in horizontal and vertical position for optimum feed



    Special features

    • Three feed rollers
    • Eight speeds
    • 750 W / 400V
    • 2-speed gearbox
    • metal housing



    Data sheets
    Sicherheitsdatenblatt 2
    Safetydatasheet 2
    Number of feed rollers3 St
    Feed speed2/4/5/6/10/12 / 15/30 m/min
    Gears8
    Max. extension1050 mm
    Roller diameter120 mm
    Roller width60 mm
    Spring stroke of rollers25 mm
    VPE1
    Dimensions and weights
    Weight approx.65 kg
    Electrical Data
    Drive motor output0,75 kW
    Supply voltage400 V
    Mains frequency50 Hz
    Unit: pc(s).
    Packaging unit: 1
