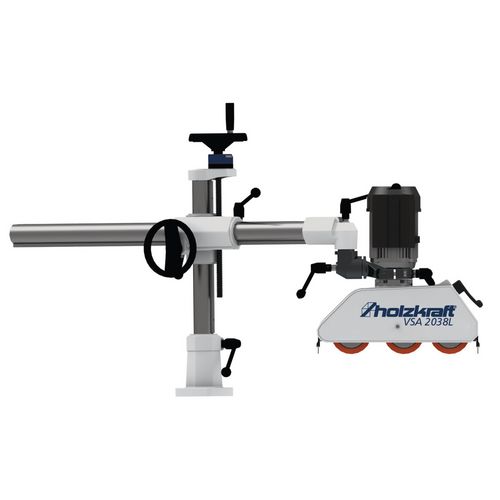

VSA 2038 L PLUS

with three rollers and eight speeds

1.199,00 EUR excl. Tax / pc(s).
1.438,80 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Sicherheitsdatenblatt

Art.-No. 5119039

Are you interested in this product?

Put a request

Find Trader

Productdetails

Uniform feed rate without loss of force
Right and left rotation
Including stand PLUS with high-quality clamping levers and counter, individually swiveling and adjustable for horizontal and vertical use
Eight speeds possible, speed selection via switch and change gears

Uniform feed rate without loss of force
Right and left rotation
Including stand PLUS with high-quality clamping levers and counter, individually swiveling and adjustable for horizontal and vertical use
Eight speeds possible, speed selection via switch and change gears

Data sheets
Sicherheitsdatenblatt

Number of feed rollers	3 St
Feed speed	2 / 4 / 5.5 / 6.5 / 11 / 13 / 16.5 / 33 m/min
Gears	8
Max. extension	1050 mm
Roller diameter	120 mm
Roller width	60 mm
Spring stroke of rollers	20 mm
VPE	1

Dimensions and weights
Length approx.	1524 mm
Width/depth approx.	220 mm
Height approx.	540 mm
Weight approx.	71.5 kg
Explanation Weight approx.	Tripod included

Electrical Data
Drive motor output	0.75 kW
Supply voltage	400 V
Mains frequency	50 Hz

Unit: pc(s).
Packaging unit: 1
