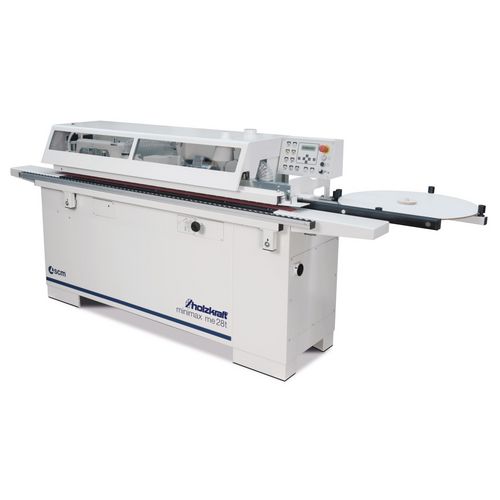

minimax me 28t ER

Gluing, milling and final cut in one pass with simple and precise operation

23.390,00 EUR excl. Tax / pc(s).
28.068,00 EUR incl. 20% Tax / pc(s).

Promotional price *

18.399,00 EUR excl. Tax / pc(s).
22.078,80 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.

Sicherheits- und Warnhinweise

Safety and warning notices

Art.-No. 5507031

Are you interested in this product?

Put a request

Find Trader

Productdetails

Sturdy steel cast iron construction with high rigidity for lasting precision
Combination milling unit with carbide cutters and chrome-plated indexing shoes for optimum milling results in flush and radius milling

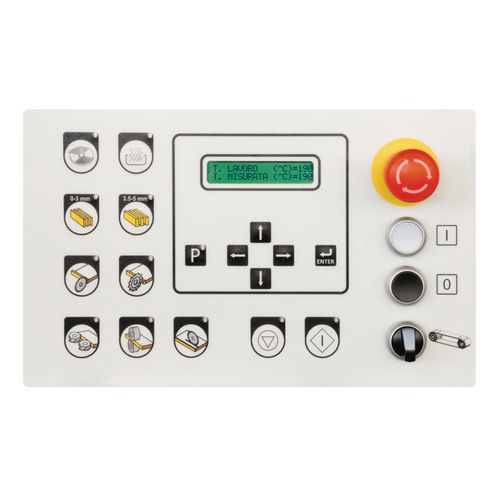

Comfortable operation via ergonomic control panel on the front of the machine
Especially short set-up times
Large contact surface due to extractable workpiece support

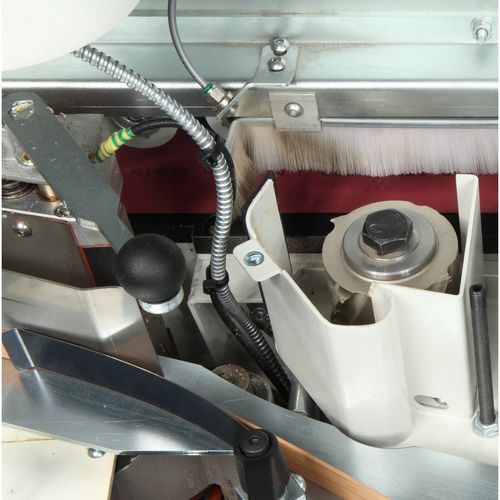

Pre-milling unit with DIA cutter Ø 80 mm, height 56 mm

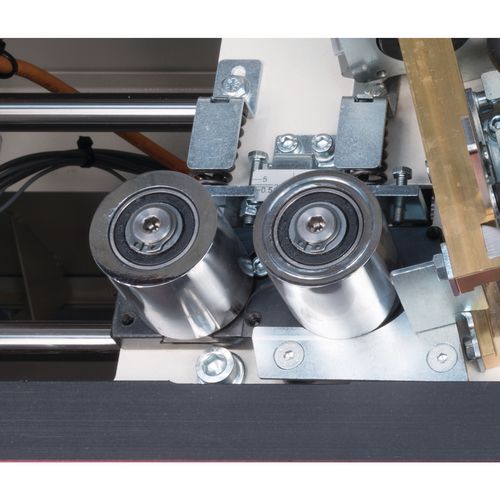

Precise feed of the workpiece via feed belt at the bottom and double rubber pressure rollers at the top for high traction and to avoid scratches on the workpiece surface
Fast operational, low space requirement, low energy requirement
Electronic temperature regulation with standby function to 150 °C, which prevents over-cooking of the glue and allows a quick re-heating to operating temperature
5 heating elements ensure a uniform heating of the glue
Absolute quality of edge banding due to automatic positioning of all working units in synchronism with the position of the pressure bridge and matched to the thickness of the plate
Easy adjustment of plate thickness via a numeric display
Glue container made of aluminum with non-stick coating
One suction nozzle each for milling unit Ø 120 mm, joining unit Ø 80 mm and gluing station Ø 60 mm

Data sheets
Sicherheits- und Warnhinweise
Safety and warning notices

Dimensions and weights
Length approx.	3100 mm
Width/depth approx.	1150 mm
Height approx.	1270 mm
Weight approx.	521 kg

Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz

Feed
Current draw	0.55 kW
Speed	7 m/min

Flush radius milling unit
Current draw	0,75 kW
Miller diameter HM	75 mm
Miller speed	9000 min¯¹

Gluing unit
Current draw	0,18 kW
Extraction port diameter	60 mm
Filling quantity	0.8 kg

Milling unit
Milling unit extraction port Ø	120 mm

Pre-milling unit
Extraction port Ø	80 mm
Current draw	2,2 kW
Milling speed	9000 min¯¹
Diamond milling diameter	80 mm
Material removal	0.5 / 1 / 1.5 / 2 mm

Trimming unit
Current draw	0.37 kW
Saw blade diameter	90 mm
Saw blade speed	12000 min¯¹

Workpiece
Thickness	12 – 50 mm
Minimum length	190 mm
Min. width	110 mm

VPE

Unit: pc(s).
Packaging unit: 1

Roller edge rotary platen	730 mm
Pre-milling unit	✔
Bonding unit	✔
Jack knife	✔

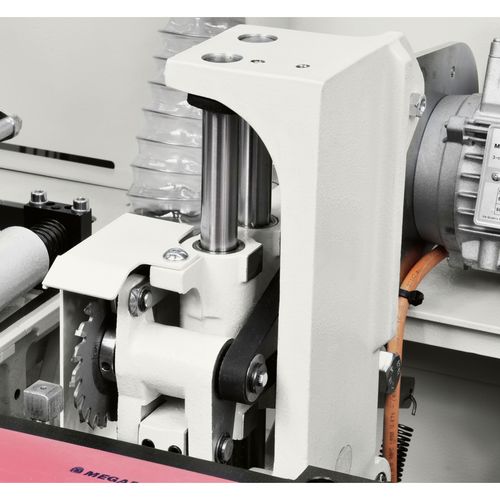

Flush trimming unit	with saw and corner rounding function
Flush radius milling unit	✔
Radius scraper unit	✔
Area scraper unit	✔
