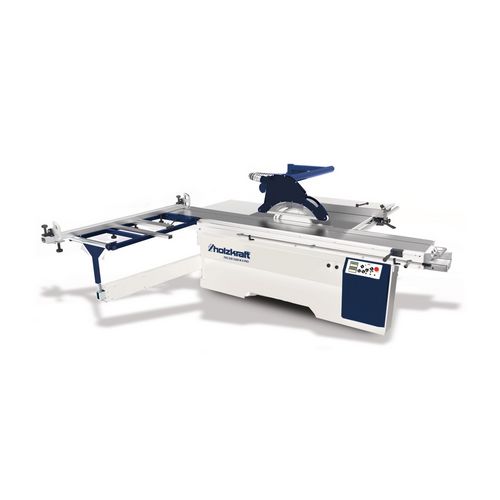

FKS 550-3200 M A PRO

Heavy-duty sliding table saw with scoring unit and motorized saw blade adjustment

20.190,00 EUR excl. Tax / pc(s).
24.228,00 EUR incl. 20% Tax / pc(s).

Prices are recommended retail prices. Retailer prices may vary.

Art.-No. 5200552

Are you interested in this product?

Put a request

Find Trader

Productdetails

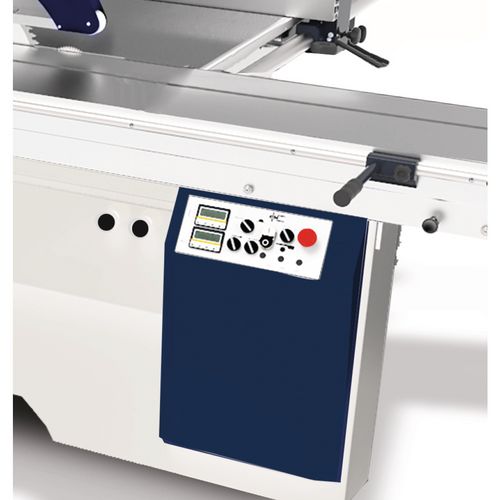

Motorized saw blade tilt and height adjustment with digital display
Max. cutting height 200mm

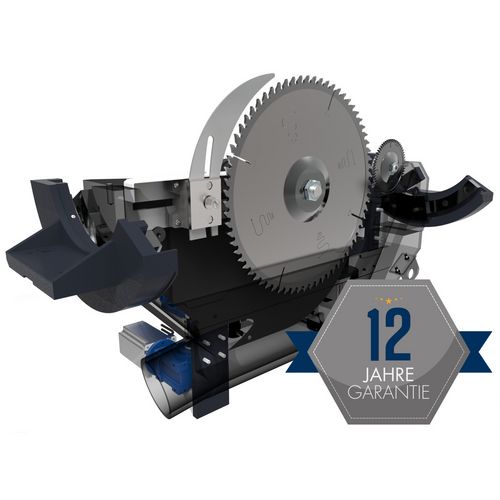

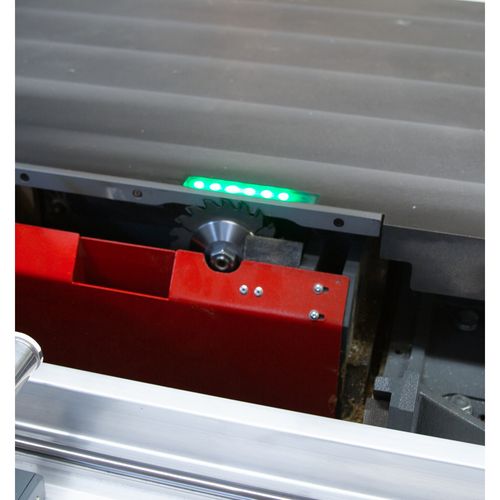

Scoring unit with separate drive motor
Main saw blade with belt drive and speeds 2800/3665/4800 min¯¹
High dead weight ensures vibration-free operation

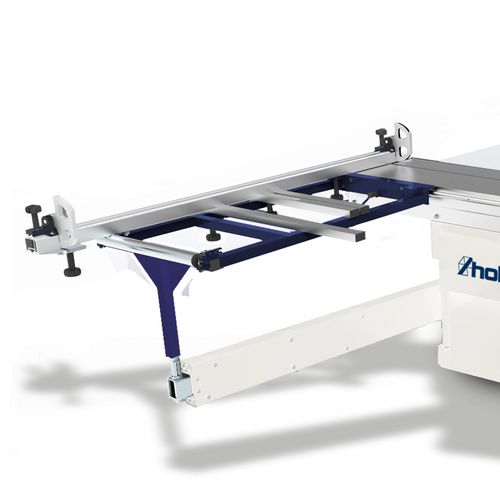

Large outrigger table with material roller

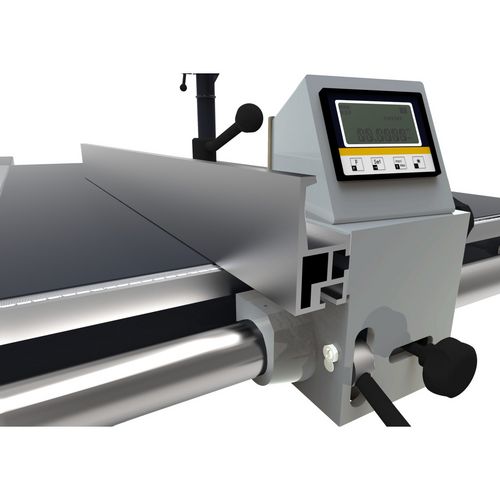

Rip fence with round bar guide and digital position indicator
Extendable aluminum longitudinal fence with two folding fences

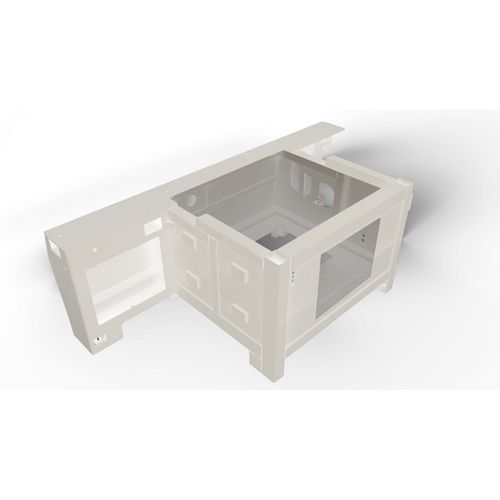

7.5 kW main motor mounted on a robust cast iron frame

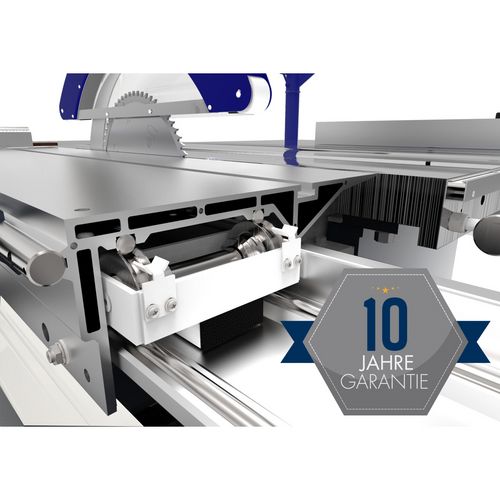

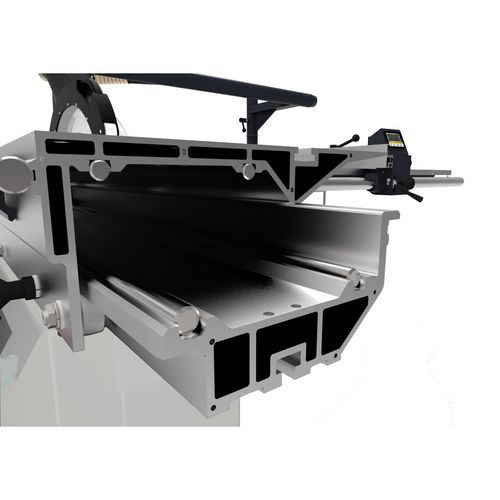

Format sliding carriage with four bearings and double roller carriage made of anodized aluminium with high torsional rigidity
Multiple locking mechanism on the sliding table
Table extension and table extension made of sheet steel as standard

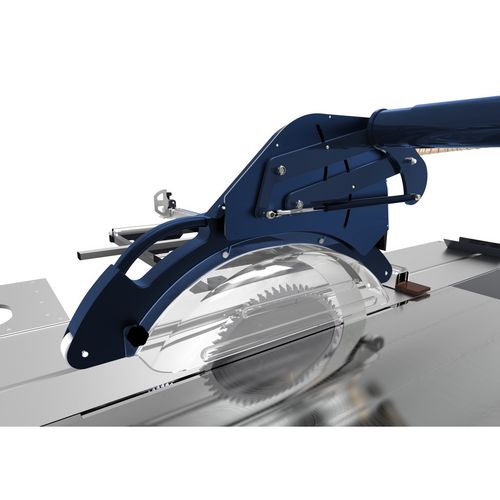

Large pendulum guard can be conveniently raised using a gas pressure spring

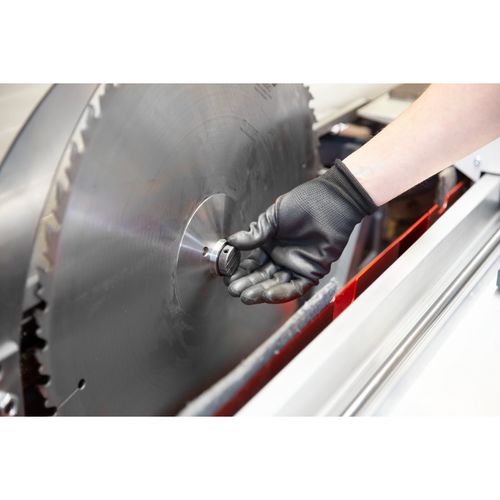

Saw blade clamping via tool-free Rapid system

Circular saw unit
Max. cutting width with rip fence	1450 mm
Max. cross cut width left from saw blade	3200 mm
Saw blade angle	90 – 45 °
Max. cutting height 90°	200 mm
Max. cutting height 45°	140 mm
(Main) saw blade diameter	550 mm
(Main) saw blade speed	2800/3665/4800 min¯¹

Dimensions and weights
Length approx.	3386 mm
Width/depth approx.	3703 mm
Height approx.	1330 mm
Weight approx.	1070 kg

Electrical Data
Absorbed power drive motor	8.8 kW
Supply voltage	400 V
Mains frequency	50 Hz

Extraction port
Extraction port diameter bottom	120 mm
Saw blade protection extraction port diameter	80 mm

Noise emission
Sound pressure level	96.5 dB(A)

Pre-scoring unit
Diameter saw blade	120 – 130 mm
Saw blade speed	8000 min¯¹

Sliding carriage and table
Sliding carriage length	3200 mm
Sliding carriage width	416 mm
Sliding carriage height	890 mm
Table length	1255 mm
Table width	685 mm
Work height	890 mm

VPE

Unit: pc(s).
Packaging unit: 1

Scoring saw unit	with separate scoring motor
Anodised aluminium sliding sizing carriage	✔
Handle for sliding carriage	✔

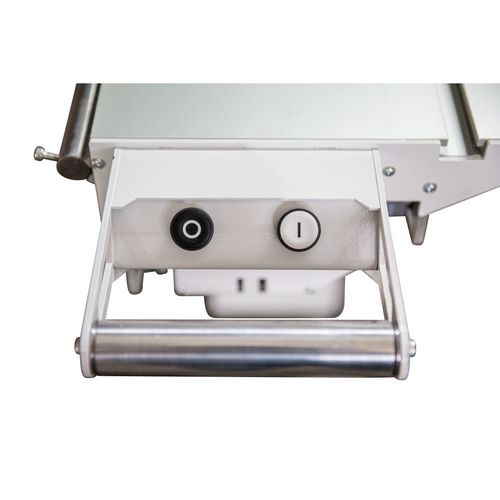

On/off switch on sliding carriage	✔
Claming frame	with extendable aluminum longitudinal stop
Material roll on claming frame	✔
Saw rip fence	with round rod guide and digital position indicator
Stops	Two professional folding stops
Table broadening	✔
Table lengthening	✔
Saw blade cover	✔
Height adjustment and tilting of the saw unit	motorized, with digital display
