| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 1450 mm |
| Max. cross cut width left from saw blade | 3200 mm |
| Saw blade angle | 90 – 45 ° |
| Max. cutting height 90° | 200 mm |
| Max. cutting height 45° | 140 mm |
| (Main) saw blade diameter | 550 mm |
| (Main) saw blade speed | 2800/3665/4800 min¯¹ |

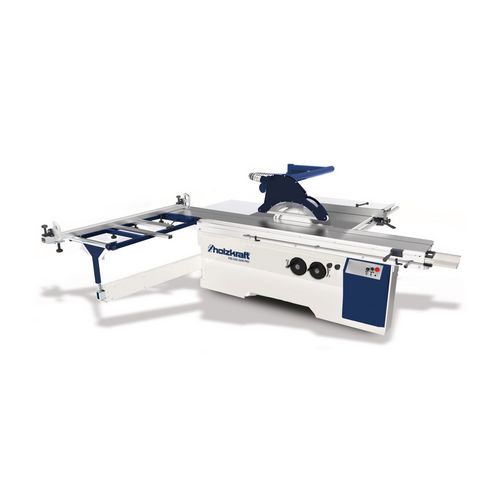

Sliding table saw
FKS 550
Heavy-duty sliding table saw with scoring unit
From 16.490,00
EUR excl. Tax / pc(s).
From 19.788,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| Dimensions and weights | Electrical Data | General | Price | ||||
|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Weight approx. (kg) | Absorbed power drive motor (kW) | VPE | EUR excl. Tax | EUR incl. 20% Tax | |
| FKS 550-3200 PRO | 5200550 | 1102 | 8.3 | 1 | 16.490,00 | 19.788,00 | |
| FKS 550-3200 M A PRO | 5200552 | 1070 | 8.8 | 1 | 20.190,00 | 24.228,00 | |
| FKS 550-3200 M A 3 UP TOP | 5200563 | 1280 | 9 | 1 | 29.390,00 | 35.268,00 | |
Select Attributes
Dimensions and weights
- Weight approx.
Electrical Data
- Absorbed power drive motor
General
- VPE
Price
- excl. Tax
- incl. 20% Tax
Productdetails

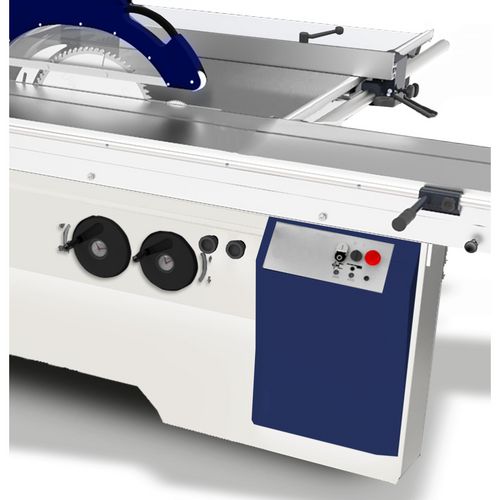

- Manual saw blade tilt and height adjustment
- Max. Cutting height 200mm

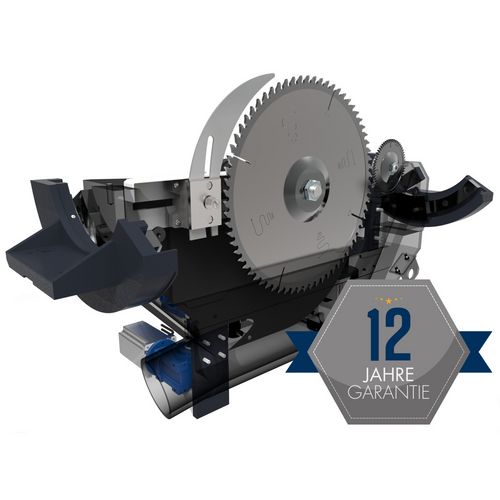

- Scoring unit with separate drive motor
- Main saw blade with belt drive and speeds 2800/3665/4800 min¯¹
- High dead weight ensures vibration-free operation

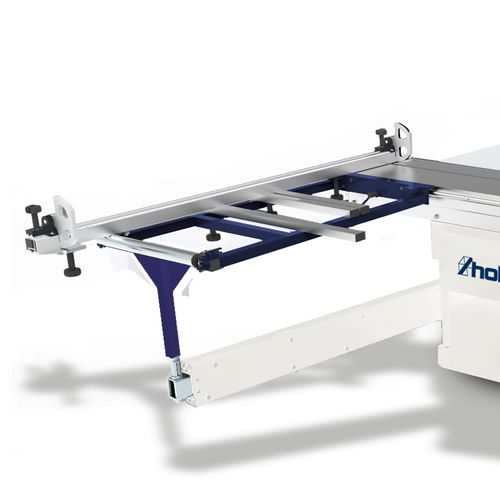

- Large outrigger table with material roller
- Rip fence with round bar guide

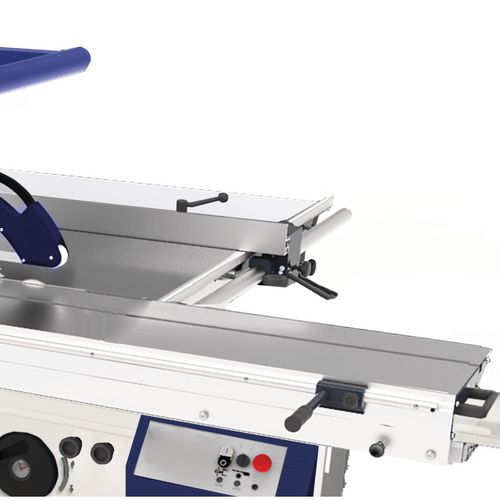

- Extendable aluminum rip fence with two folding fences

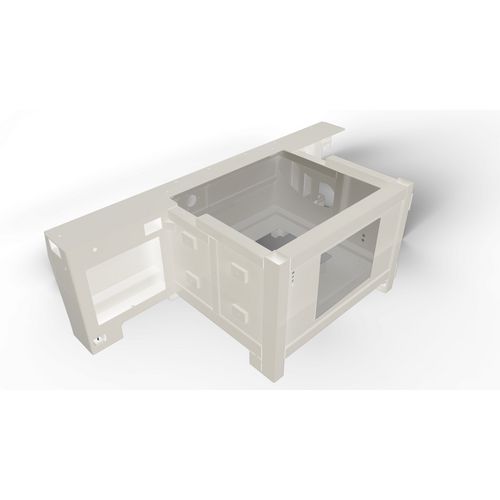

- 7.5 kW main motor mounted on robust cast iron frame

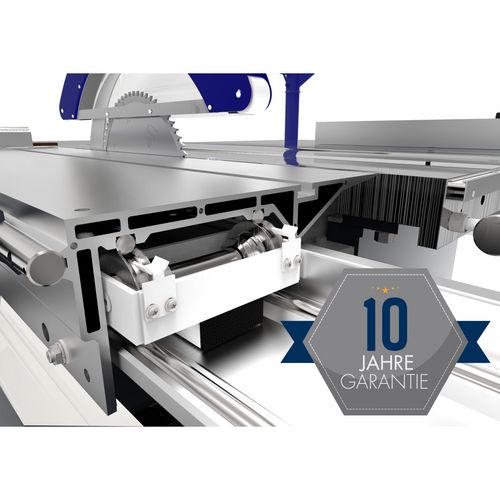

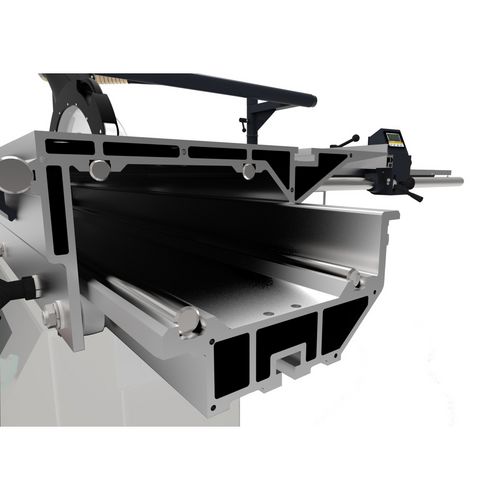

- Format sliding carriage with four bearings and double roller carriage made of anodized aluminium with high torsional rigidity
- Multiple locking mechanism on the sliding table
- Table extension and table extension made of sheet steel as standard

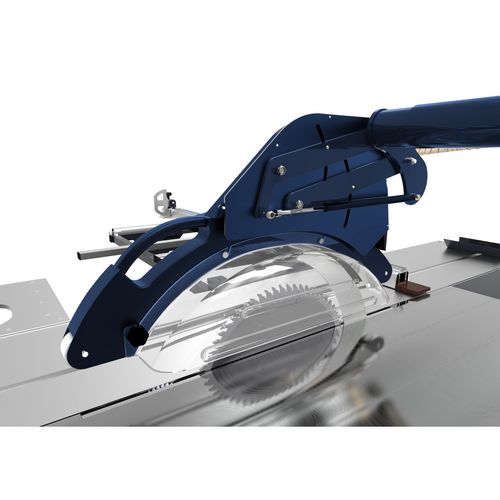

- Large pendulum guard can be conveniently raised using a gas pressure spring

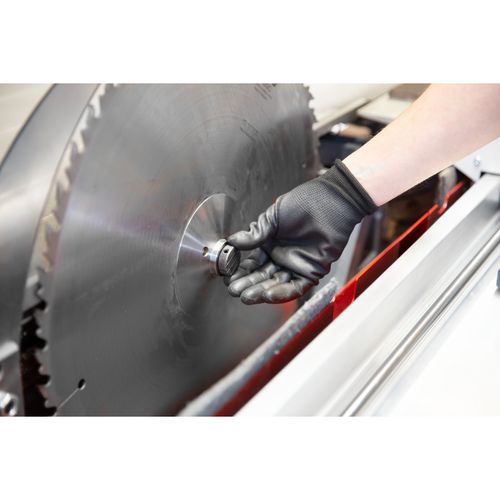

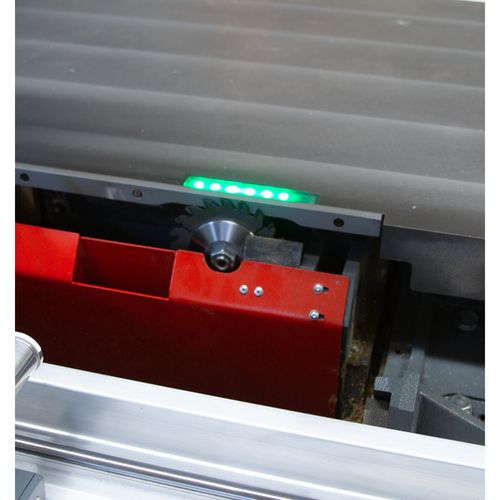

- Saw blade clamping via tool-free Rapid system
| Dimensions and weights | |
|---|---|
| Length approx. | 3386 mm |
| Width/depth approx. | 3703 mm |
| Height approx. | 1330 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 120 mm |
| Saw blade protection extraction port diameter | 80 mm |
| Noise emission | |
|---|---|
| Sound pressure level | 96.5 dB(A) |
| Pre-scoring unit | |
|---|---|
| Diameter saw blade | 120 – 130 mm |
| Saw blade speed | 8000 min¯¹ |
| Sliding carriage and table | |
|---|---|
| Sliding carriage length | 3200 mm |
| Sliding carriage width | 416 mm |
| Sliding carriage height | 890 mm |
| Table length | 1255 mm |
| Table width | 685 mm |
| Work height | 890 mm |
