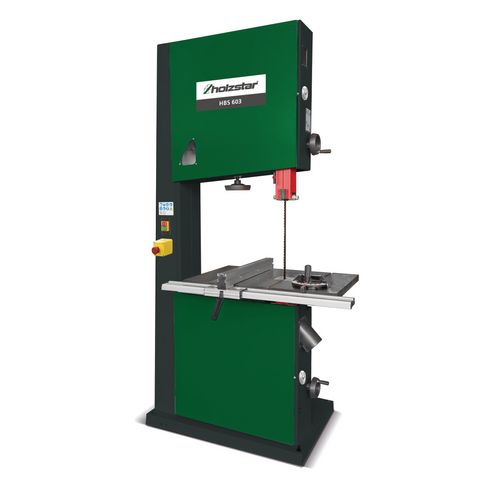

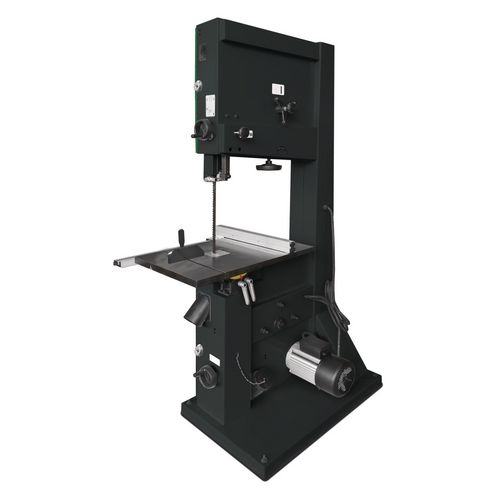

Woodbandsaw
HBS 603
Precision saws with great cutting performance
Price upon request
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 5941163
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Heavy-duty design with high dead weight for maximum running smoothness
- Quiet and precise running thanks to torsion-resistant machine housing
- Precisely adjustable aluminium parallel fence
- Cast-iron flywheels with rubber coating and chip scraper brush
- Large cast-iron saw table, swivels from 0° to +45° with ground and polished surface
- Precise cutting height adjustment via toothed rack with millimetre scale
- Two suction ports
- Heavy-duty design with high dead weight for maximum running smoothness
- Smooth and precise running thanks to torsion-resistant machine housing
- Cast-iron flywheels with rubber coating and chip scraper brush
- Large cast iron saw table, swivels from 0° to +45° with ground and polished surface
- Precise cutting height adjustment via toothed rack with millimetre scale
| Cutting ranges | |
|---|---|
| Max. cutting height 90° | 430 mm |
| Max. cutting height 45° | 258 mm |
| Max. cutting width with stop | 410 mm |
| Max. cutting width without stop | 600 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 1100 mm |
| Width/depth approx. | 800 mm |
| Height approx. | 2150 mm |
| Weight approx. | 230 kg |
| Electrical Data | |
|---|---|
| Delivery power | 2.6 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter | 2 x 120 mm |
| Saw band | |
|---|---|
| Speed(s) | 1080 m/min |
| Length | 4590 mm |
| Width | 25 mm |
| Strength | 0,6 mm |
| Work top(s) | |
|---|---|
| Length | 630 mm |
| Width | 480 mm |
| Height | 920 mm |
| Extension length | 150 mm |
| Extension width | 480 mm |
| Pivot | 0 – 45 ° |
| Pivot explanation | For safety reasons, a holding device / stop must be fitted from 20° to prevent the wood from slipping! |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
- Mitre fence
- Saw band
- Sliding stick
