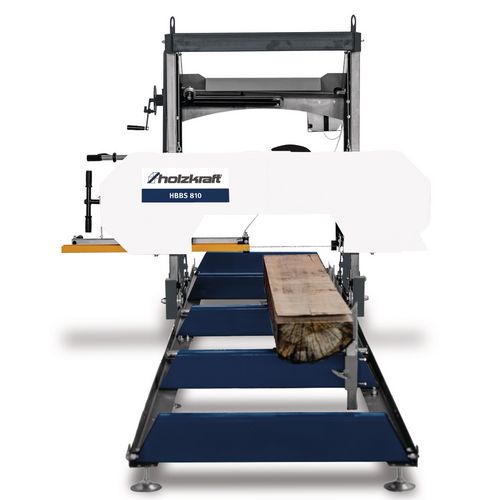

Log band saw
HBBS 810
Precise saw cuts when ripping round timber
3.399,00
EUR excl. Tax / pc(s).
4.078,80 EUR incl. 20% Tax / pc(s).
4.078,80 EUR incl. 20% Tax / pc(s).
Promotional price *
3.199,00 EUR excl. Tax / pc(s).3.838,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Art.-No. 5670813
Are you interested in this product?
Put a request
Find Trader
Productdetails

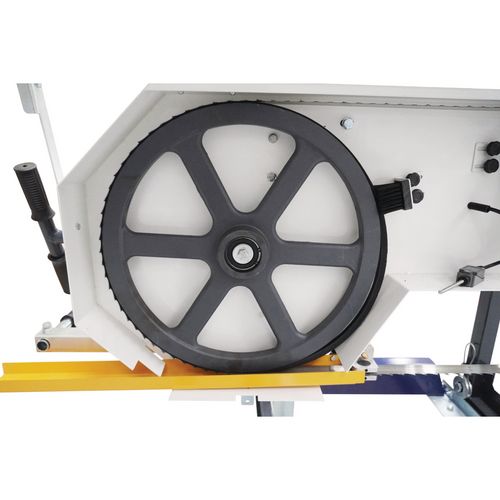

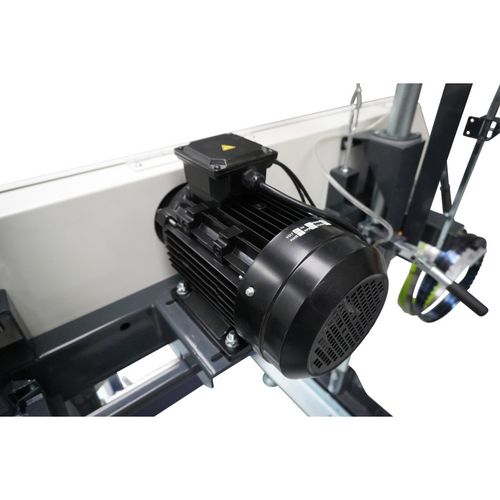

- Solid cast wheels driven by a 7.5 kW electric motor

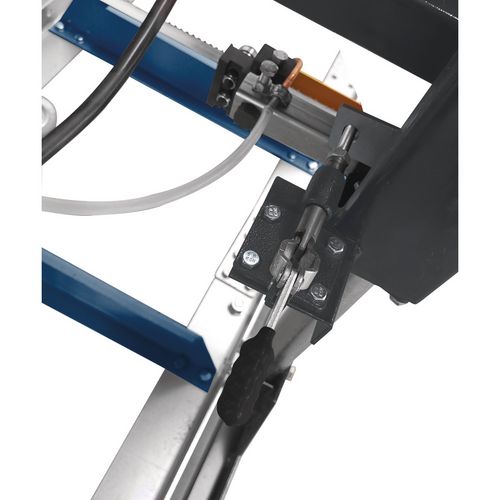

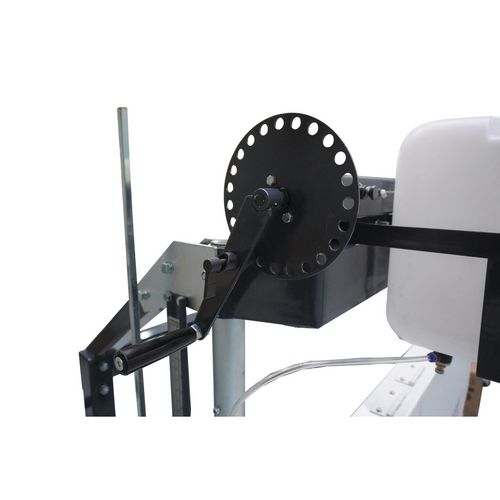

- Manual adjustment of the cutting height via hand crank
- Robust and torsion-resistant steel construction
- Simple operation with the aid of a manual saw feed

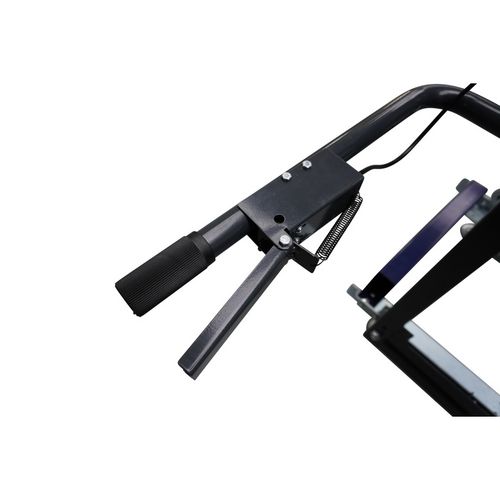

- Safety switch integrated in the handle for safe operation

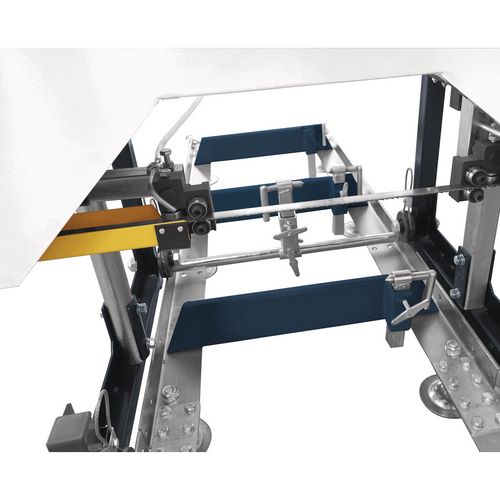

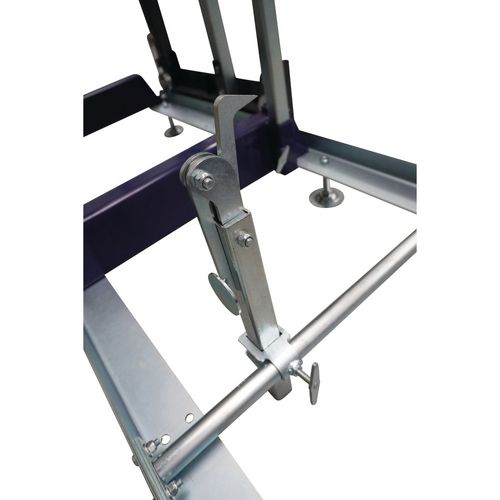

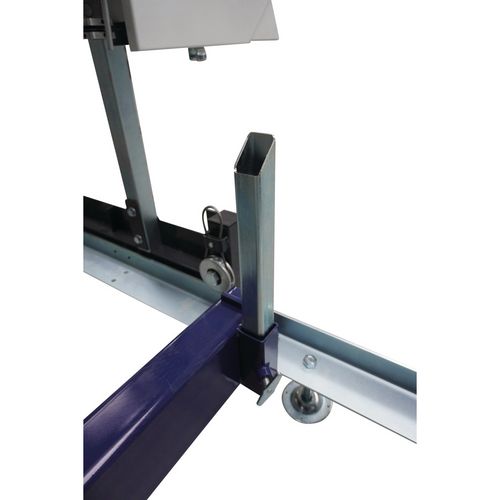

- Stable clamping of the log thanks to adjustable tips

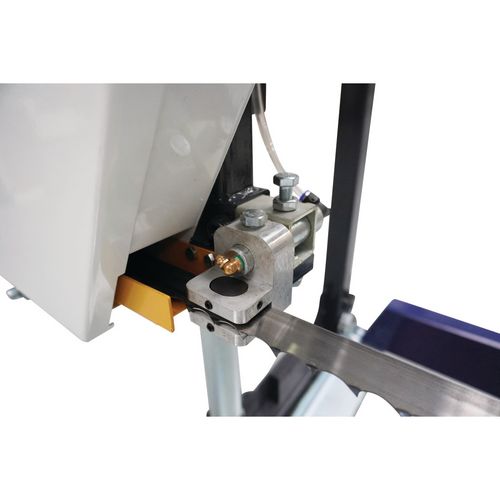

- Precise cuts thanks to adjustable saw blade guide

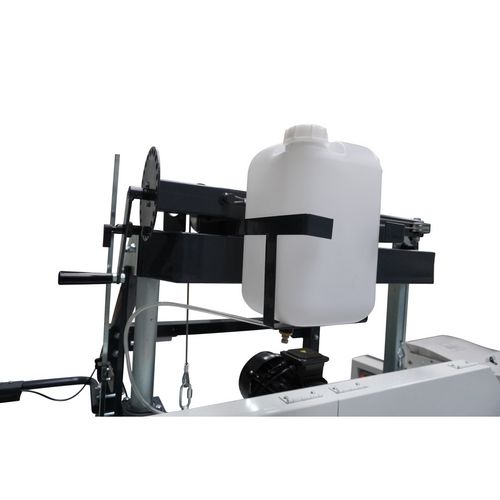

- Low friction between saw blade and wood thanks to integrated blade lubrication

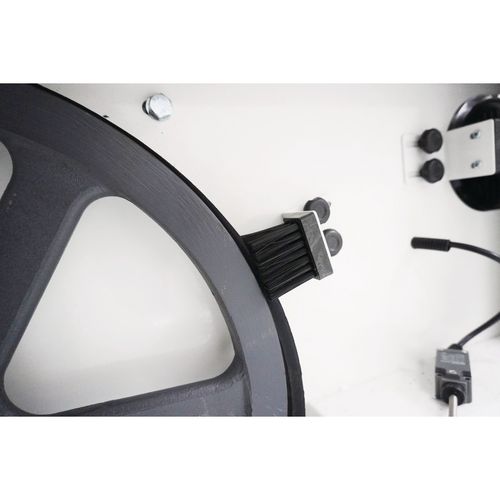

- The side-mounted chip removal ensures a clean working area
- Any cutting length thanks to bed extensions available as accessories
- Suitable for softwood and hardwood
| Cutting ranges | |
|---|---|
| Max. trunk diameter | 810 mm |
| Max. cutting width | 700 mm |
| Cutting length max. | 3200 mm |
| Passage over saw band | 190 mm |
| Dimensions and weights | |
|---|---|
| Length approx. | 4000 mm |
| Width/depth approx. | 2350 mm |
| Height approx. | 2080 mm |
| Weight approx. | 380 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound power level | 94,6 dB(A) |
| Saw band | |
|---|---|
| Speed(s) | 18 m/s |
| Length | 4015 mm |
| Width | 34 mm |
| Strength | 1 mm |
| VPE | 1 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drive type | electric |
| Material frame construction | Steel |
| Feed rate | manually |
