| Effective delivery volume approx. | 6500 l/min |
| Maximum Pressure | 10 bar |
| Air outlet | 1.5 " |
| VPE | 1 |

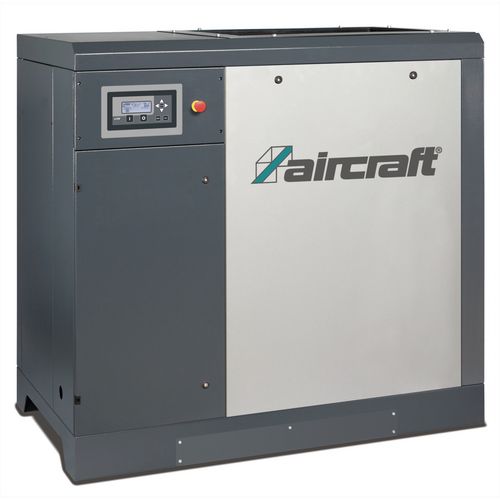

Screw compressor with ribbed belt drive (floor installation)
A-PLUS 45-10
silenced screw compressors from 30 to 75 kW
22.790,00
EUR excl. Tax / pc(s).
27.348,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2094204
Are you interested in this product?
Put a request
Find Trader
Productdetails
- All main components of the compressor are manufactured by machining using numerically controlled machine tools, including suction regulator, separator block and minimum pressure valve
- The cooling takes place via a temperature-controlled centrifugal fan and an oversized combination cooler. This ensures optimal cooling even under the most extreme conditions.
- Generous access panels allow easy maintenance and immediate control of the internal components, reducing the time required for inspection and maintenance to one medium.
- The main operating parameters are monitored by the electronic microprocessor control NRG: In addition to the various functions, a weekly timer for switching on and off is available to meet the requirements of each customer. In addition, up to 4 machines can be controlled simultaneously according to the master / slave principle.
- Standard with star-delta connection
Energy savings through frequency-controlled compressors
Reducing energy consumption and protecting our precious energy resources has become a global challenge given its impact on the environment. The A-PLUS 22, 37, 55 and 75 kW range is also available in a speed control version that combines high performance with energy saving solutions. By using a variable speed compressor in a typical installation, you save a significant amount of energy.
| Dimensions and weights | |
|---|---|
| Length approx. | 1600 mm |
| Width/depth approx. | 970 mm |
| Height approx. | 1860 mm |
| Weight approx. | 910 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 45 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 72 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Drive transmission | Ribbed belt |
