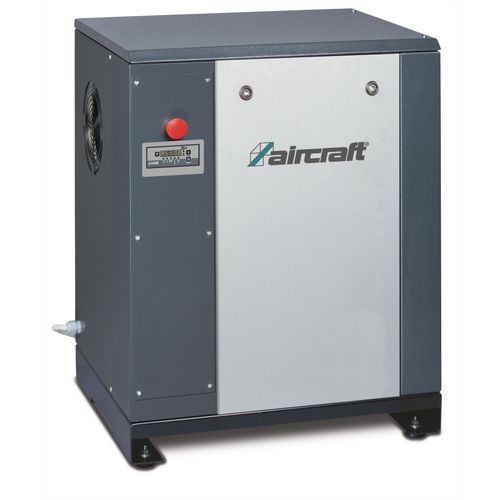

Screw compressor with ribbed belt drive (floor installation)
A-MICRO 5.5-08
Screw compressors with ribbed belt drive in soundproof housing. For continuous operation even with smaller air requirements.
4.815,00
EUR excl. Tax / pc(s).
5.778,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2091802
Are you interested in this product?
Put a request
Find Trader
Productdetails
- Space-saving single compressor with ribbed belt drive
- With control ETM II including direction of rotation control
- Especially suitable for companies that have a continuous air requirement, but want a compact unit with a reduced noise level and low operating costs
- Standard supersonic insulation allows installation in sensitive rooms

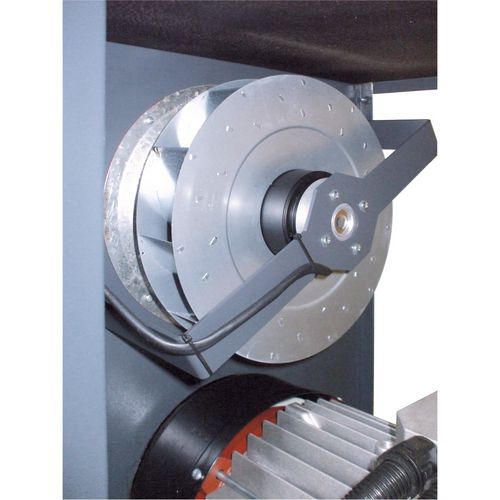

- Intensive cooling warrantys operational safety and good air quality
- Standard with star-delta connection
- Ideal also suitable for supplementing existing systems, eg for covering the compressed air base load
- Standard with thermal motor protection, oil temperature monitoring (max 110 °C) and operating hours counter, ensuring high operational safety
- Service-friendly due to optimal accessibility and easy disassembly and assembly of all important components
- Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
| Effective delivery volume approx. | 720 l/min |
| Maximum Pressure | 8 bar |
| Air outlet | 1/2 " |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 600 mm |
| Width/depth approx. | 520 mm |
| Height approx. | 780 mm |
| Weight approx. | 125 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 5.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 64 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1

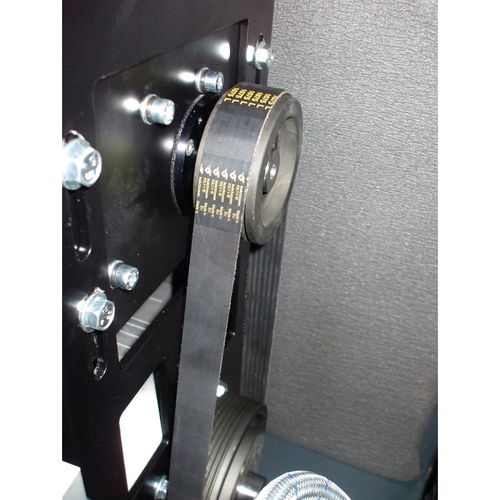

| Drive transmission | Ribbed belt |
