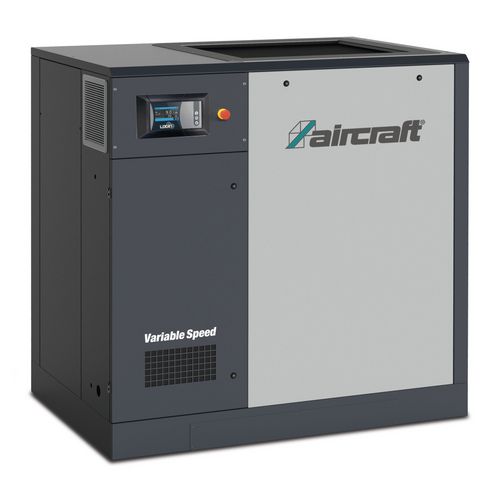

Screw compressor
A-K-MAX 45E-10 VS (PM)
Compact screw compressor with variable speed control by IE4 permanent magnet motor and innovative LOGIN control system
37.225,00
EUR excl. Tax / pc(s).
44.670,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Art.-No. 2097104.2
Are you interested in this product?
Put a request
Find Trader
Productdetails

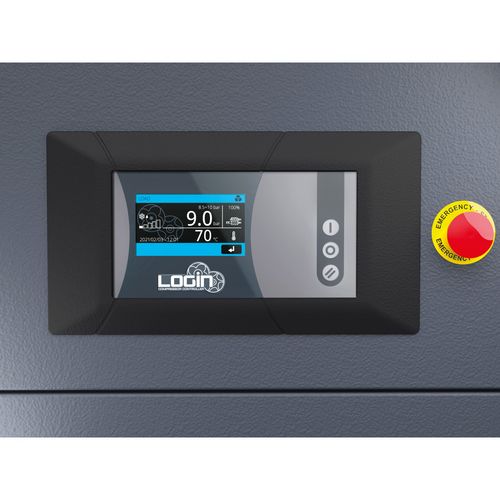

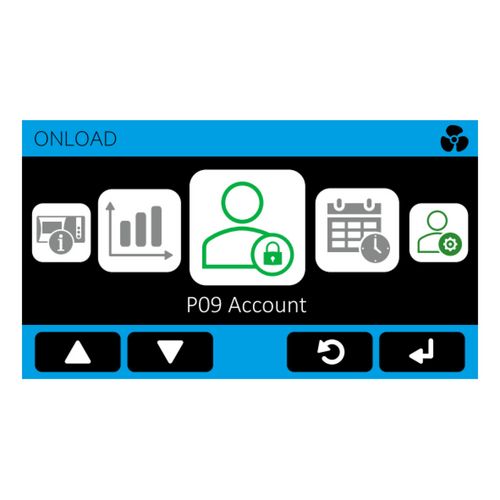

- Innovative LOGIN control with 4.3" touch screen for easy operation and full control of all functions.
- Rotation direction control for the motor, prevents damage during start-up or after a change of location
- High cooling effect and low noise level due to thermostatically controlled radial fan
- Optimum operating temperature and low fluctuation of oil temperature due to thermostatically controlled centrifugal fan, optimum cooling air flow and generously dimensioned heat exchangers
- Aftercooler reduces the effort for drying and filtration of the generated compressed air

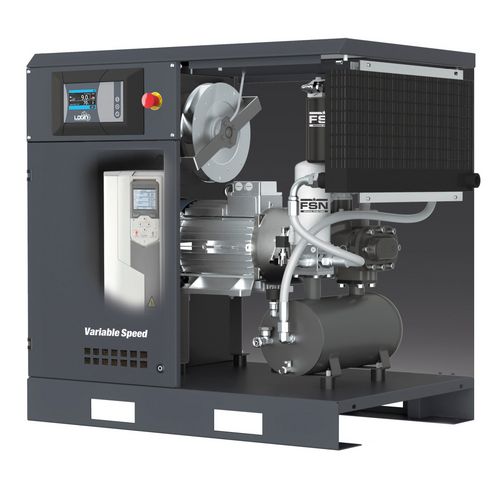

- Easy to service: simple removal and installation of all components requiring maintenance

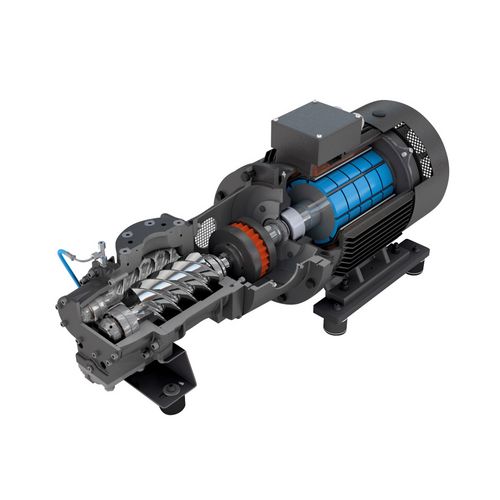

Latest generation IE4 permanent magnet motor for max. energy efficiency
- Larger speed/load range

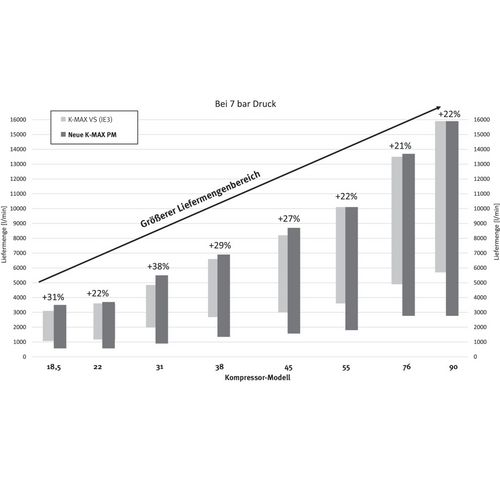

- Larger delivery volume supply range

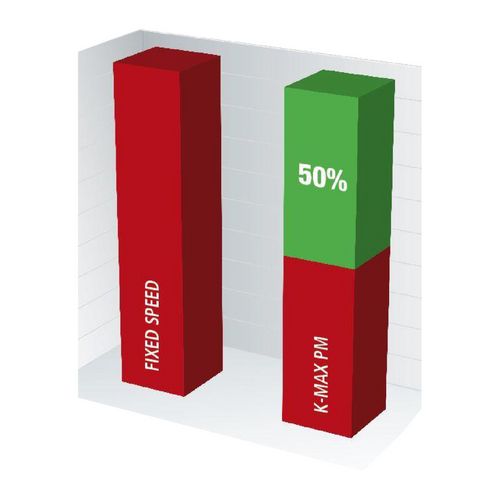

- Extremely energy efficient - up to 50% energy consumption savings compared to a "fixed speed" model
- Very quiet operation - only 64 dB
Energy saving through frequency control
- Ideal for frequently changing compressed air consumption
- Compressor delivery rate adjusts to actual consumption
- Electronic control monitors motor and compressor speed and keeps line pressure constant even when consumption fluctuates widely
- Advanced and efficient cutting-edge technology in the smallest possible space
| Effective delivery quantity of up to approx. | 1570 7350 l/min |
| Maximum Pressure | 10 bar |
| Air outlet | 2 " |
| Oil-free / oil-lubricated | Oil lubricated |
| VPE | 1 |
| Dimensions and weights | |
|---|---|
| Length approx. | 1590 mm |
| Width/depth approx. | 1000 mm |
| Height approx. | 1560 mm |
| Weight approx. | 855 kg |
| Electrical Data | |
|---|---|
| Absorbed power electric motor | 45 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
|---|---|
| Sound pressure level Lp | 72 dB(A) |
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
Unit: pc(s).
Packaging unit: 1
Packaging unit: 1
| Frequency controlled | ✔ |
| Control | Electronical |
| Oil heat exchanger | ✔ |
| Drive transmission | Direct coupling |
| Compressor type | FS270 |
| Star-delta switch | ✔ |
