| Air outlet | 2 " |

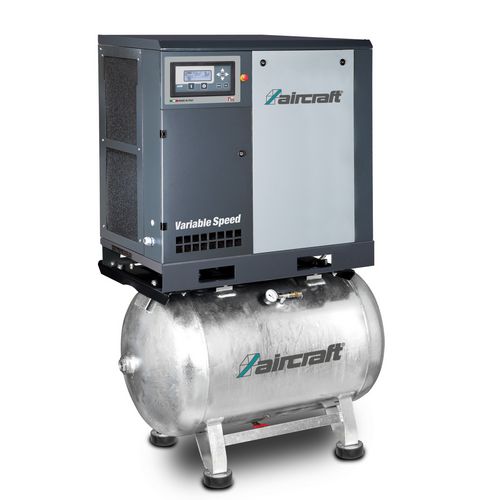

Direct coupled screw compressor
A-K-MAX F VS
With frequency control (SpeedTronic Control) for use in continuous operation and at 100% utilization
From 8.550,00
EUR excl. Tax / pc(s).
From 10.260,00
EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Compressed air tank | Dimensions and weights | Electrical Data | Noise emission | Price | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Effective delivery quantity of up to approx. (l/min) | Maximum Pressure (bar) | VPE | Pressure vessel capacity (l) | Length approx. (mm) | Width/depth approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Absorbed power electric motor (kW) | Sound pressure level Lp (dB(A)) | EUR excl. Tax | EUR incl. 20% Tax | |
| A-K-MAX 7,5-08-270F VS | 2095522 | 520 1300 | 8 | 1 | 270 | 1200 | 650 | 1540 | 270 | 7,5 | 63 | 8.550,00 | 10.260,00 | |
| A-K-MAX 7,5-10-270F VS | 2095524 | 440 1100 | 10 | 1 | 270 | 1200 | 650 | 1540 | 270 | 7,5 | 63 | 8.550,00 | 10.260,00 | |
| A-K-MAX 1110-500F VS | 2095734 | 620 1550 | 10 | 1 | 500 | 2000 | 730 | 1700 | 390 | 11 | 68 | 11.190,00 | 13.428,00 | |
Select Attributes
General
- Effective delivery quantity of up to approx.
- Maximum Pressure
- VPE
Compressed air tank
- Pressure vessel capacity
Dimensions and weights
- Length approx.
- Width/depth approx.
- Height approx.
- Weight approx.
Electrical Data
- Absorbed power electric motor
Noise emission
- Sound pressure level Lp
Price
- excl. Tax
- incl. 20% Tax
Productdetails
- Absolutely Low maintenance drive with maximum energy efficiency thanks to directly coupled coaxial screw compressor
- EasyTronic IV control as standard prevents motor overload, reduces wear and ensures a longer service life
- High cooling effect and Lower noise level thanks to the thermostatically controlled radial fan
- Longer service life of the device and less fluctuations in the oil temperature thanks to the thermostatically controlled fan, optimal cooling air flow and generously sized heat exchanger
- Less effort for drying and filtering the generated compressed air Integrated aftercooler
- warrantyd compliance with the maintenance intervals by recording the load and run-on times via the operating hours counter
- Display of the maintenance requirement via automatic notification
- Avoiding damage during commissioning or after changing location through integrated direction of rotation control for the motor
- Service-friendly due to optimal accessibility and simple assembly / disassembly of all components to be serviced
- Easy transport and assembly due to small external dimensions
- Monitoring as standard the engine and compressor speed through SpeedTronic Control control
- Fifteen-year warranty against rusting through on the inside and outside of hot-dip galvanized compressed air tanks
Energy savings with frequency-controlled compressors:
Based on the frequency converter technology, the delivery quantity of the compressor adapts to the actual consumption. The electronic control monitors the engine and compressor speed and keeps the network pressure constant. The user receives advanced cutting-edge technology in the smallest of spaces.
Your advantages:
- Active energy saving
- Ideal for frequently changing compressed air consumption
- The speed-controlled compressor achieves maximum efficiency and keeps the network pressure constant, even when consumption fluctuates greatly.
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
