| Air outlet | 3/4 " |

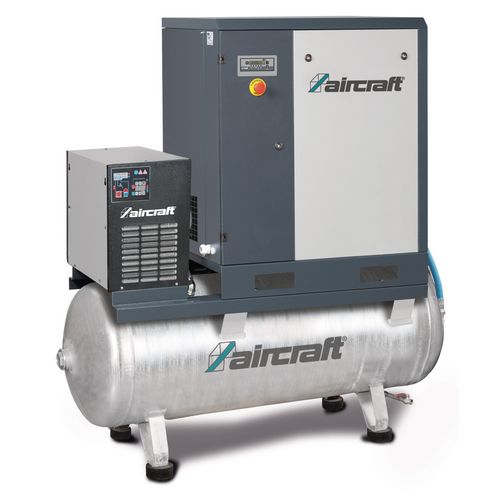

Screw compressor with ribbed belt drive on container with mounted refrigeration dryer
A-PLUS 270 / 500 K 7,5 - 15 kW
for 100% capacity utilization - designed for maximum operational reliability.
From
9.150,00
EUR excl. Tax / pc(s).
From 10.980,00 EUR incl. 20% Tax / pc(s).
From 10.980,00 EUR incl. 20% Tax / pc(s).
Promotional price *
From 7.799,00 EUR excl. Tax / pc(s).From 9.358,80 EUR incl. 20% Tax / pc(s).
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Are you interested in this product?
Put a request
Find Trader
Variations
| General | Compressed air tank | Dimensions and weights | Electrical Data | Noise emission | Price | Promotional price * | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Effective delivery volume approx. (l/min) | Maximum Pressure (bar) | VPE | Pressure vessel capacity (l) | Length approx. (mm) | Height approx. (mm) | Weight approx. (kg) | Absorbed power electric motor (kW) | Sound pressure level Lp (dB(A)) | EUR excl. Tax | EUR incl. 20% Tax | EUR excl. Tax | EUR incl. 20% Tax | |
| A-PLUS 11-08-270 K | 2092462 | 1650 | 8 | 1 | 270 | 1550 | 1510 | 363 | 11 | 69 | 9.150,00 | 10.980,00 | - | - | |
| A-PLUS 11-10-270 K | 2092464 | 1500 | 10 | 1 | 270 | 1550 | 1510 | 363 | 11 | 69 | 9.150,00 | 10.980,00 | - | - | |
| A-PLUS 11-13-270 K | 2092466 | 1100 | 13 | 1 | 270 | 1550 | 1510 | 363 | 11 | 69 | 9.150,00 | 10.980,00 | - | - | |
| A-PLUS 11-08-500 K | 2092472 | 1650 | 8 | 1 | 500 | 1980 | 1630 | 395 | 11 | 69 | 9.590,00 | 11.508,00 | - | - | |
| A-PLUS 11-10-500 K | 2092474 | 1500 | 10 | 1 | 500 | 1980 | 1630 | 395 | 11 | 69 | 7.799,00 | 9.358,80 | |||
| A-PLUS 11-13-500 K | 2092476 | 1100 | 13 | 1 | 500 | 1980 | 1630 | 395 | 11 | 69 | 9.590,00 | 11.508,00 | - | - | |
| A-PLUS 15-08-500 K | 2092672 | 2150 | 8 | 1 | 500 | 1980 | 1630 | 436 | 15 | 70 | 9.750,00 | 11.700,00 | - | - | |
| A-PLUS 15-10-500 K | 2092674 | 1850 | 10 | 1 | 500 | 1980 | 1630 | 436 | 15 | 70 | 8.059,00 | 9.670,80 | |||
| A-PLUS 15-13-500 K | 2092676 | 1500 | 13 | 1 | 500 | 1980 | 1630 | 436 | 15 | 70 | 9.850,00 | 11.820,00 | - | - | |
| A-PLUS 16-08-500 K | 2092872 | 2350 | 8 | 1 | 500 | 1980 | 1630 | 436 | 15 | 68 | 10.250,00 | 12.300,00 | - | - | |
| A-PLUS 16-10-500 K | 2092874 | 2050 | 10 | 1 | 500 | 1980 | 1630 | 436 | 15 | 68 | 10.250,00 | 12.300,00 | - | - | |
| A-PLUS 16-13-500 K | 2092876 | 1750 | 13 | 1 | 500 | 1980 | 1630 | 436 | 15 | 68 | 10.250,00 | 12.300,00 | - | - | |
Select Attributes
General
- Effective delivery volume approx.
- Maximum Pressure
- VPE
Compressed air tank
- Pressure vessel capacity
Dimensions and weights
- Length approx.
- Height approx.
- Weight approx.
Electrical Data
- Absorbed power electric motor
Noise emission
- Sound pressure level Lp
Price
- excl. Tax
- incl. 20% Tax
Productdetails

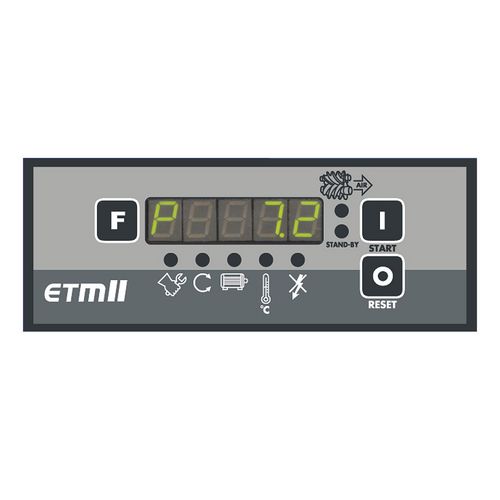

- EasyTRONIC MICRO II electronic control with pressure sensor operation as standard, thus preventing motor overload, reducing wear and extending service life
- With star-delta switch

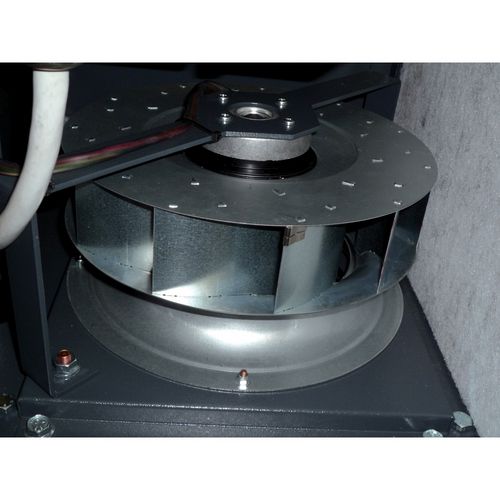

- High cooling effect and lower noise level due to thermostatically controlled radial fan
- Operating hours counter records load and overrun times, thus ensuring compliance with maintenance intervals - Indication of maintenance requirement via automatic message
- Rotation direction control for the motor avoids possible damage during commissioning or after a change of location
- Screw compressor with wear-resistant Poly V ribbed belt drive and slide clamping system
- Easy maintenance due to easily accessible elements
- Optimum operating temperatures due to thermostatically controlled fan, optimum cooling air flow and generously dimensioned heat exchanger, thus longer service life, lower fluctuations in oil temperature than with thermostat control
- Aftercooler as standard, thus less effort for drying and filtration of the generated compressed air
- Small external dimensions, thus easy transport and installation
- Fifteen-year warranty against rusting through on the inside and outside of hot-dip galvanized compressed air tanks
| Dimensions and weights | |
|---|---|
| Width/depth approx. | 700 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor(s) | |
|---|---|
| Motor type | Electrical |
| Noise emission | |
|---|---|
| Explanation sound pressure level Lp | Sound pressure level at 1 m distance according to DIN 45635 T 13 |
