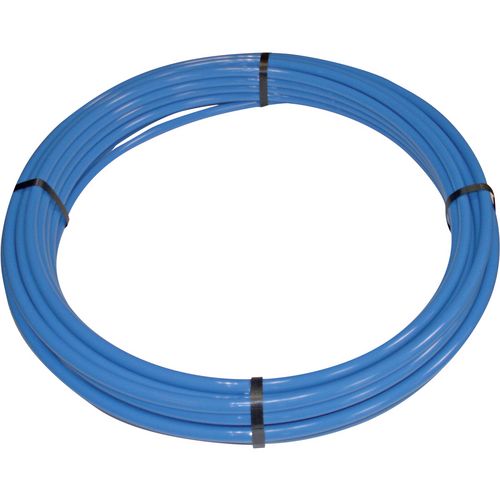

Plastic pipe
Plastic pipes for compressed air systems
From 115,80 EUR incl. 20% Tax / coil
Promotional price *
From 91,90 EUR excl. Tax / coilFrom 110,28 EUR incl. 20% Tax / coil
Prices are recommended retail prices. Retailer prices may vary.
* Promotional price valid until 28.02.2025 in Germany.
Variations
| General | Price | Promotional price * | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Title | Art.-No. | Outer diameter of the pipe (mm) | Inner diameter of the pipe (mm) | Wall thickness (mm) | Max. operating pressure (bar) | Min. bending radius (mm) | VPE | EUR excl. Tax | EUR incl. 20% Tax | EUR excl. Tax | EUR incl. 20% Tax | |
| soft 15, roll 100 m | 2151510 | 15 | 12 | 1.5 | 15 | 90 | 1 | 342,90 | 411,48 | |||
| soft 15, roll 25 m | 215151025 | 15 | 12 | 1.5 | 15 | 90 | 1 | 91,90 | 110,28 | |||
| soft 18, roll 100 m | 2151817 | 18 | 14 | 2.0 | 16 | 100 | 1 | 499,00 | 598,80 | |||
| soft 18, roll 25 m | 215181725 | 18 | 14 | 2.0 | 16 | 100 | 1 | 125,90 | 151,08 | |||
| soft 22, roll 100 m | 2152217 | 22 | 18 | 2.0 | 14 | 140 | 1 | 641,90 | 770,28 | |||
| soft 22, roll 25 m | 215221725 | 22 | 18 | 2.0 | 14 | 140 | 1 | 161,50 | 193,80 | |||
| soft 28, roll 50 m | 2152824 | 28 | 23 | 2.5 | 14 | 190 | 1 | 527,50 | 633,00 | |||
Select Attributes
- Outer diameter of the pipe
- Inner diameter of the pipe
- Wall thickness
- Max. operating pressure
- Min. bending radius
- VPE
- excl. Tax
- incl. 20% Tax
- excl. Tax
- incl. 20% Tax
Productdetails
- Very smooth inner surfaces, better flow
- well proven for years
- pressure and temperature resistant
- vibration and impact resistant
- resistant to corrosion and aging
- low weight
Room amenities:
operating temperatur
- with continuous load: -60 ° C to +100 ° C (air)
Physical Properties
- Density, at 20 ° C: 1.04 g / cm
- linear expansion coefficient: 15 · 10-5 l / K
- Melting point: approx. + 160 ° C to + 170 ° C
